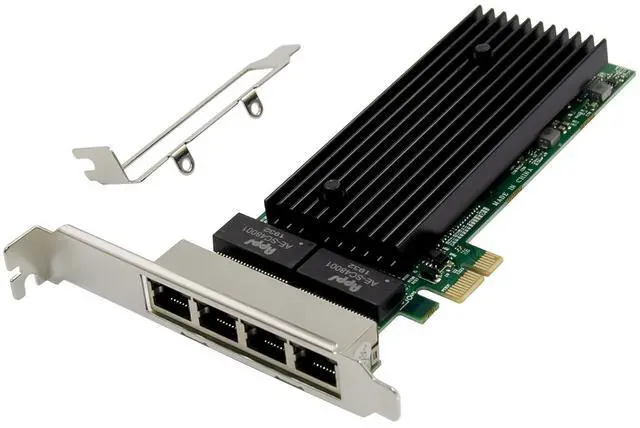

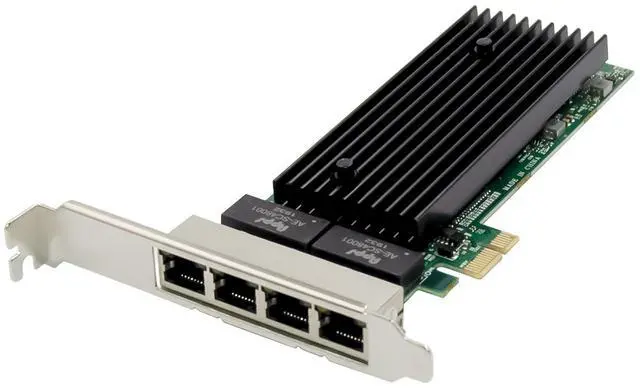

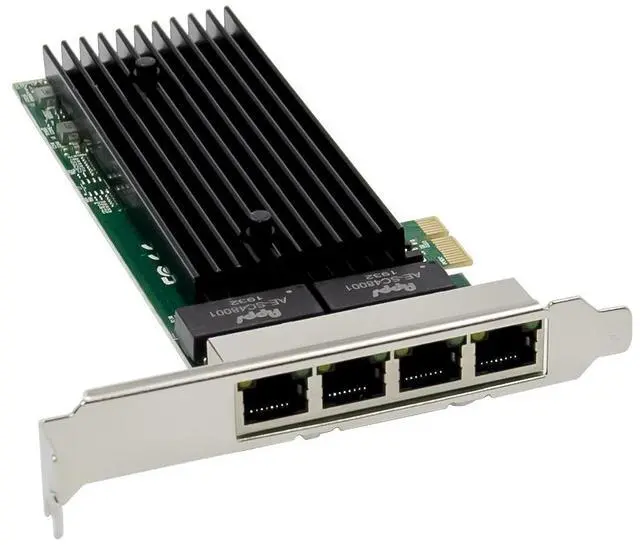

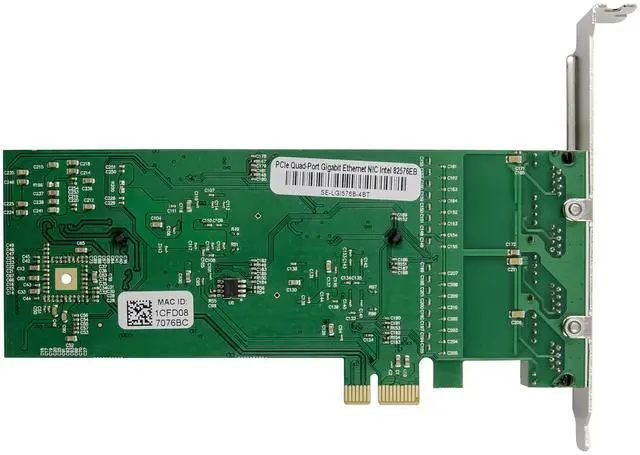

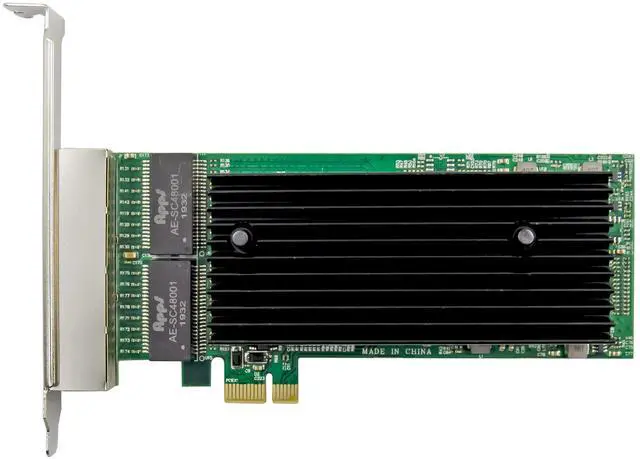

JVFYI PCIe Intel JL82576EB Quad-Port Gigabit Server NIC

Specification

PCI-Express host interface specification v2.1 with 5GT/s BUS width

Complies with PCI Bus Power Management Interface Specification Rev1.2

PCI-Express lanes: x1

Complies with Quad port 1GbE RJ45 port

Onboard with 2xJL82576EB chipset

Complies with the IEEE802.3ab ,IEEE802.3u and IEEE802.3 specifications

Supports with 10/100/1000Mbps transmit speeds

Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 9.5K

Supports UDP.TCP and IP Checksum offloading

Statistics for management and RMON

Support for virtual machines device queues

Next Generation VMDq Support (8VMs)

Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Chipset: Intel JL82576EB

Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Package content

1 x PCIe x1 JL82576EB Quad-Port Gigabit Network adapter

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI Express x1/x4/x8/x16 slot

Cabling Requirements:

Intel 1 Gigabit adapters

For 1000BASE-T or 100BASE-TX.use Category 5 or Category5e wiring, twisted 4-pair copper:

Make sure you use Category 5 cabling that complies with the TIA-568 wiring specification For more information on this specification.

Length is 100 meters max.

Category 3 wiring supports only 10Mbps

CAUTION: If using less than 4-pair cabling, you must manually configure the speed and duplex setting of the adapter and the link partner. In addition,with2-and3-pair cabling the adapter can only achieve speeds of up to 100Mbps

For 100BASE-TX.use Category 5 wiring.

For10BASE-T.use Category 3 or 5wiring

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it.

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module.

3.Install the module using the modprobe command.

4.Assign an IP address using the ifconfig command.

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
