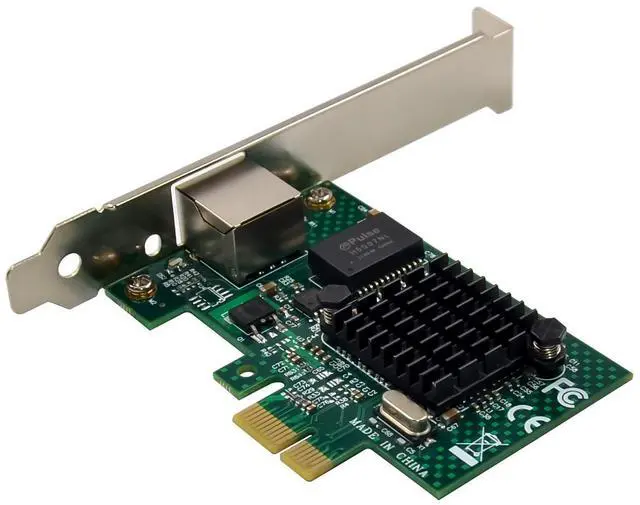

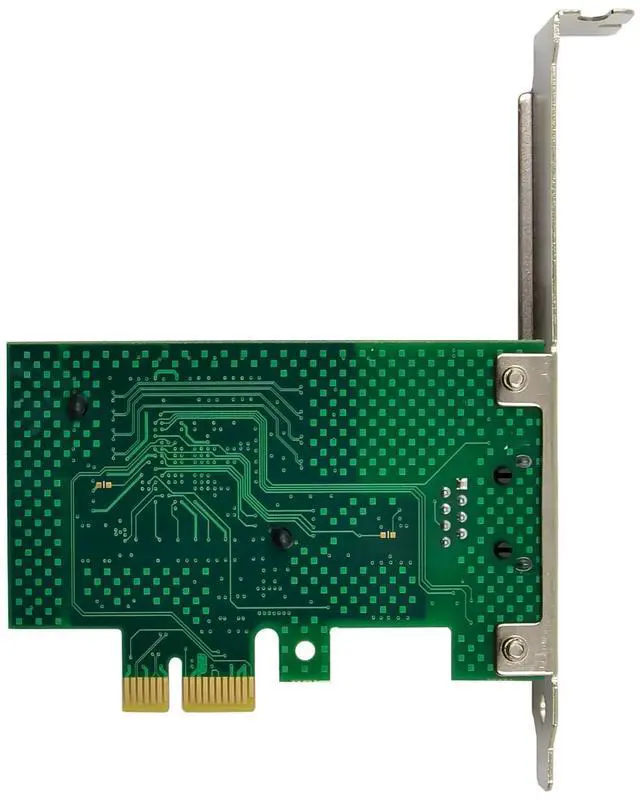

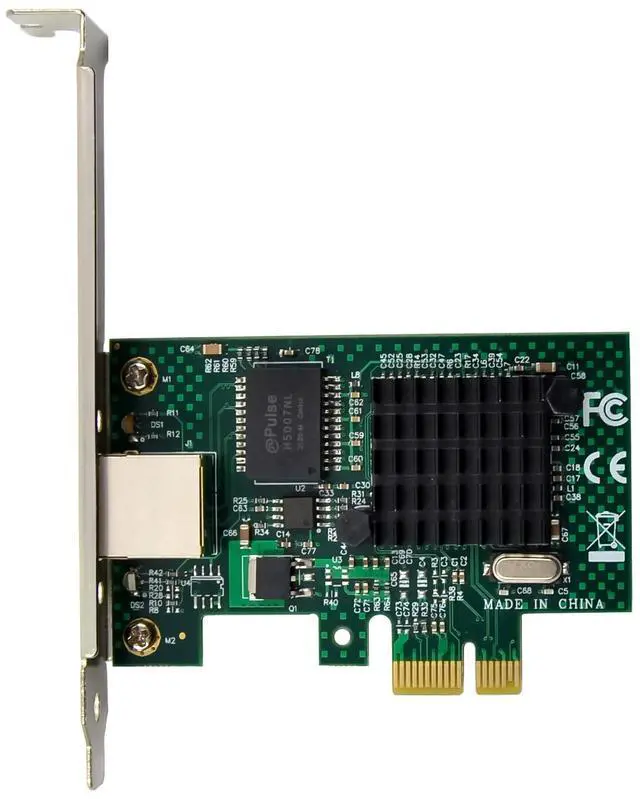

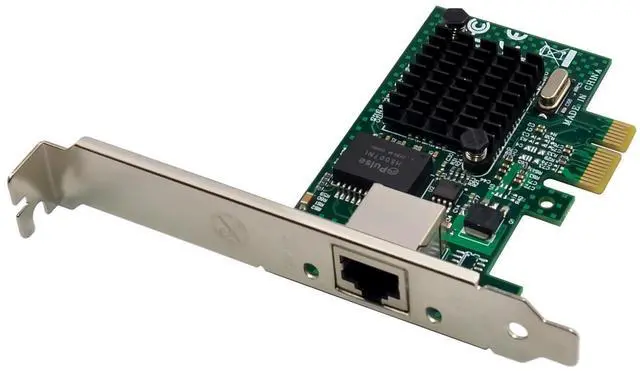

JVFYI PCIe BCM5721 NetXtreme Gigabit Network card

Specification

PCI-Express 1.1 form factor- 1 x 2.5Gbps line

Integrated 10/100/1000 BASE-T transceiver

10/100/1000base-T triple-speed MAC

High-speed RISC core with 24-KB cache

SMBus 2.0 controller

Wake-on-LAN power switching circuit

Complies with the IEEE802.3ab ,IEEE802.3u and IEEE802.3 specifications

Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds

TCP, IP, and UDP checksum

Microsoft large Send Offload

Large burst read

Interrupt coalescing

IPMI 1.5 support

Standard-compliant WOL

Innovative out-of-box mode WOL

Hardware power switching

PCI Express provide wirespeed non-blocking throughput

TCP/IP stack offloads significantly reduce utilization of CPU

TCP/IP stack offloads significantly increase throughput to enable faster downloads of large files

Drivers for NT/2000/XP/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux2.2 and above

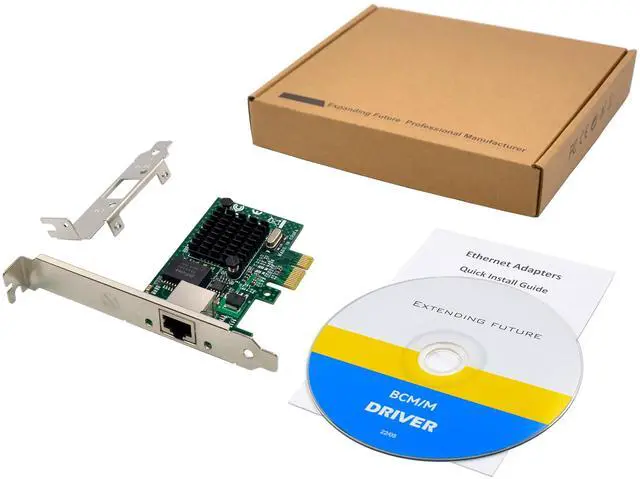

Package content

1 x PCIe BCM5721 NetXtreme Gigabit Network card

1 x Users Manual

1 x CD

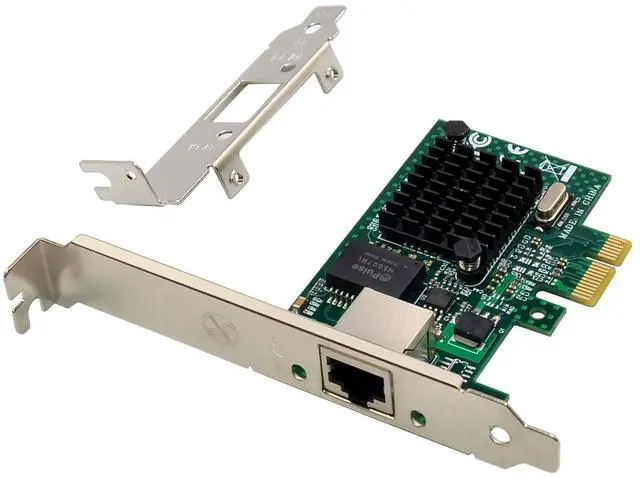

1 x Low profile bracket

Accessories

System Requirements

Linux, NT/2000/XP/Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI Express x1/x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover, then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

Please select an installation file based on the product model and system type. You must have administrative rights to the operating system to install the drivers.

To install the adapter software for WinXP, do the following steps:

1.insert the CD driver bound with Intel network driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Next

3.select search for a suitable driver for my device(recommended)then click Next.

4.In the locate driver files window, click search for the best driver in these locations option and click browse to find the installation files, Press Next to continue to setup.

For Windows XP 32bit

TypeD:\ Broadcom\Broadcom NetXtremeI 1G\BCM5715_21_22_51\WinXP \WinXP_x86

For Windows XP 64bit

TypeD:\ Broadcom\Broadcom NetXtremeI 1G\BCM5715_21_22_51\WinXP \WinXP_x64

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Install the source RPM Package.

2.Change the directory to the RPM path and build the binary drivers for your kernel

3.Install the newly built package(driver and man page)

4.Load the driver.

5.To configure the network protocol and address ,refer to Linux-specific documentation

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
