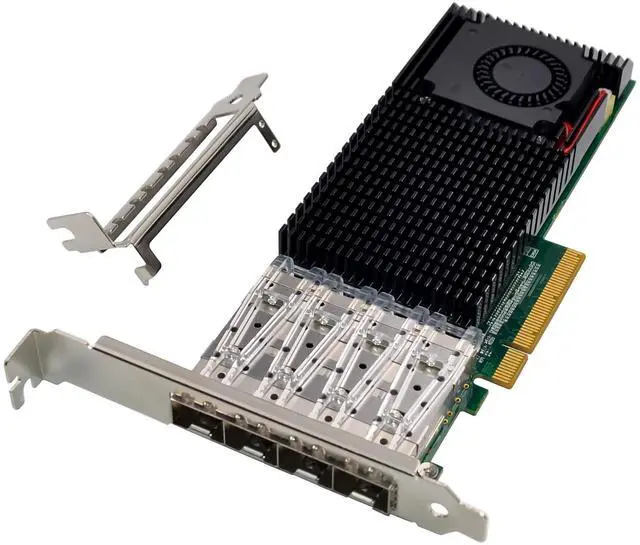

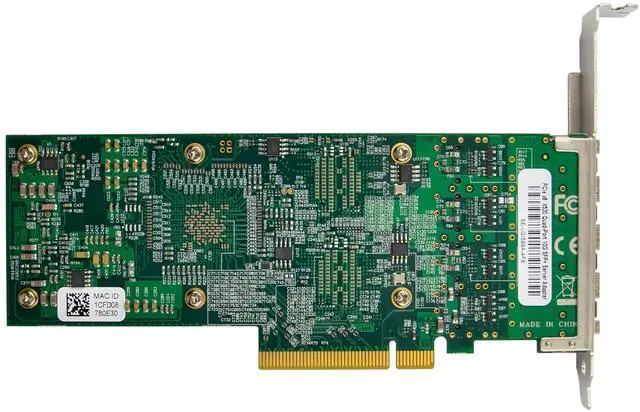

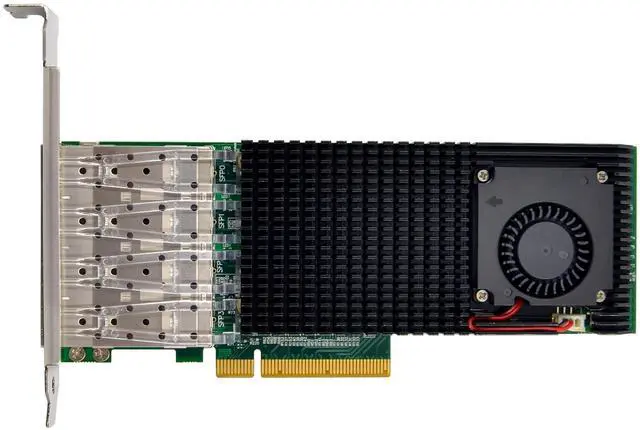

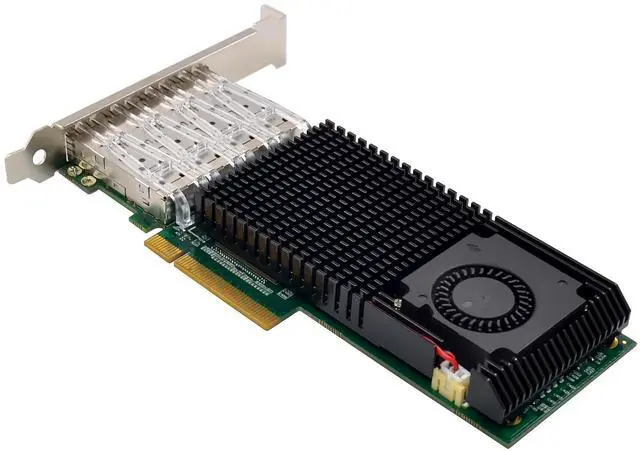

JVFYI PCIe X520 Quad-Port 10GbE SFP+ Ethernet Card

Specification

PCI-Express host interface specification v3.0 with 8GT/s BUS width and backward compliant with 2.0 and 1.x

PCI-Express interface: x8

Complies with Quad 10GbE SFP+ port

Complies with the IEEE802.3ae specification

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 15.5K

Supports Checksum offloading

Statistics for management and RMON

Support for virtual machines device queues

Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Chipset: JL82599ES&PEX8747

Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

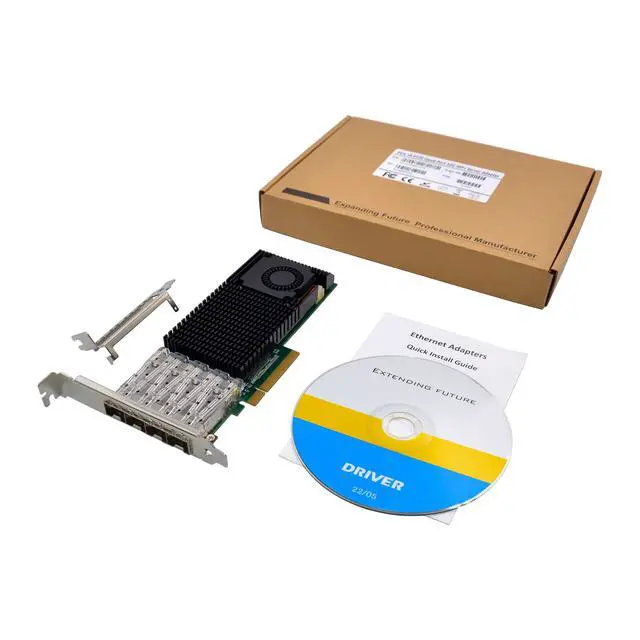

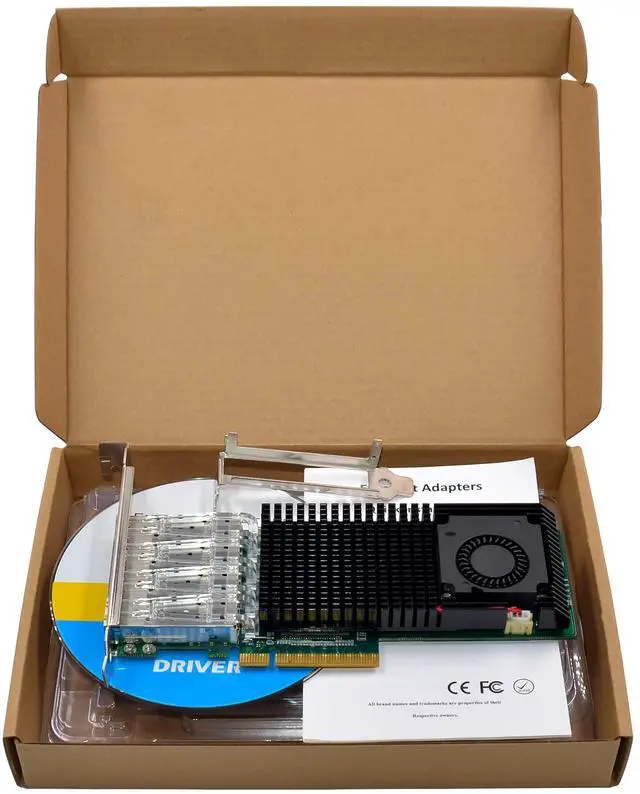

Package content

1 x PCIe Intel 82599ES Quad-Port 10G SFP+ Ethernet card

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Available PCI Express x8/x16 slot

Cabling Requirements:

Intel 10Gigabit adapters

SFP+ Module Laser wavelength:850 nanometer (not visible)

LC Cable type:

Multi-mode fiber with 50 micron core diameter, maximum length is 550 meters

Multi-mode fiber with 62.5 micron core diameter, maximum length is 275 meters

Connector type: LC

SFP+ Module laser wavelength:1310 nanometer(not visible)

LC Cable type:

Multi-mode fiber with 9 micron core diameter, maximum length is 3K meters

10 Gigabit Ethernet over SFP+ Direct Attached cable(Twinaxial)

Length 10 meters max.

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Note: select the correct slot, some systems have physical X8 PCI Express slots those actually only support lower speeds. Please check your system manual to identify the slot

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
