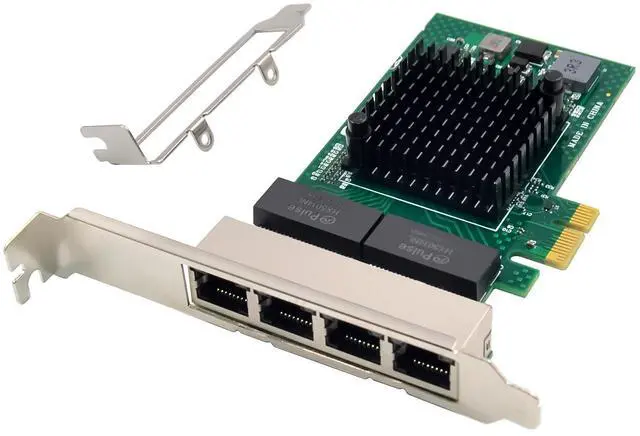

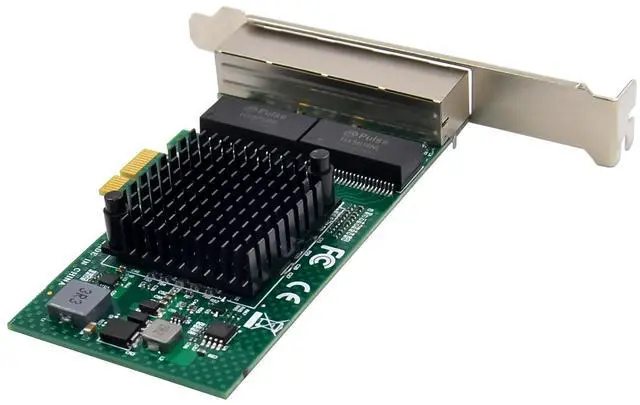

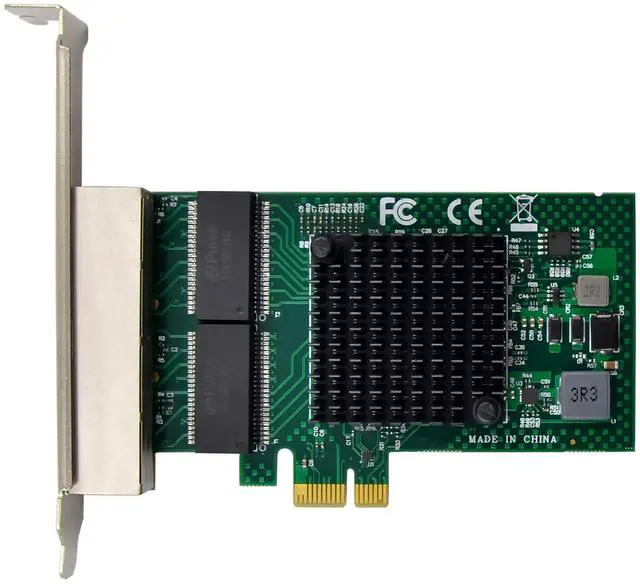

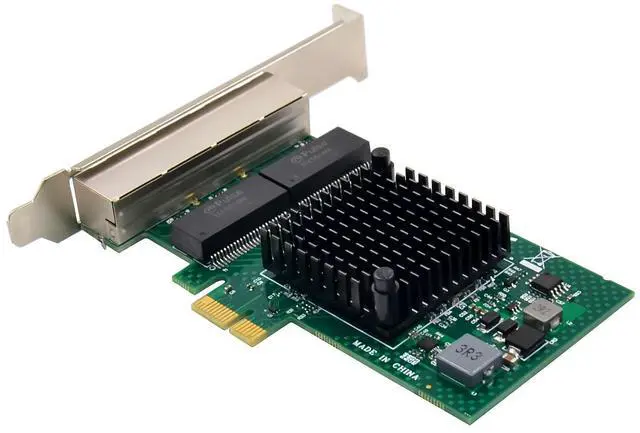

JVFYI PCIe BCM5719 NetXtreme Gigabit Network card

The BCM5719-4P Ethernet adapter is RoHS-compliant.

Energy Efficient Ethernet-compliant with IEEE Std 802.3az-2010

Quad-port Ethernet adapter

PCI Express v2.1 x1 at 5 GT/s or 2.5 GT/s

Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations

MSI and MSI-X capabilities up to 17 MSI-X vectors

I/O Virtualization support for VMWare NetQueue and Microsoft VMQ

17 receive queues and 16 transmit queues per port

17 MSI-X vectors supporting per queue interrupt to host

Function Level Reset (FLR)

ECC error detection and correction on internal SRAM

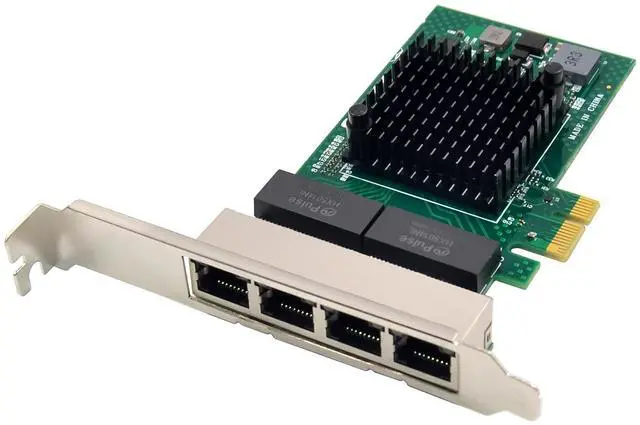

Quad RJ-45 connectors with integrated link and activity LEDs

RSS for multicore client processors

TCP, UDP, and IP checksum offload

Large Send Offload, TCP Segmentation Offload

Wake-on-LAN (WOL) support that complies with ACPI requirements

Statistics for SNMP MIB II and Ethernet-like MIB

Comprehensive diagnostic and configuration software suite

Jumbo frame support with up to 9.6 KB packet sizeDrivers for NT/2000/XP/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux2.2 and above

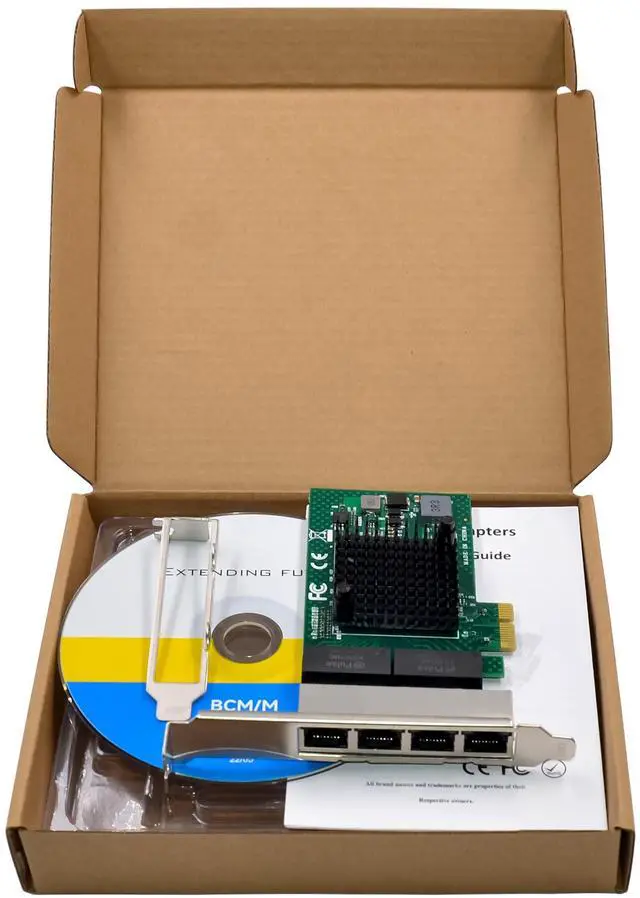

Package content

1 x PCIe BCM5719 NetXtreme Gigabit Network card

1 x Users Manual

1 x CD

1 x Low profile bracket

Accessories

System Requirements

Linux, NT/2000/XP/Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI Express x1/x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover, then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

Please select an installation file based on the product model and system type. You must have administrative rights to the operating system to install the drivers.

To install the adapter software for WinXP, do the following steps:

1.insert the CD driver bound with Intel network driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Next

3.select search for a suitable driver for my device(recommended)then click Next.

4.In the locate driver files window, click search for the best driver in these locations option and click browse to find the installation files, Press Next to continue to setup.

For Windows XP 32bit

TypeD:\ Broadcom\Broadcom NetXtremeI 1G\BCM5715_21_22_51\WinXP \WinXP_x86

For Windows XP 64bit

TypeD:\ Broadcom\Broadcom NetXtremeI 1G\BCM5715_21_22_51\WinXP \WinXP_x64

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Install the source RPM Package.

2.Change the directory to the RPM path and build the binary drivers for your kernel

3.Install the newly built package(driver and man page)

4.Load the driver.

5.To configure the network protocol and address ,refer to Linux-specific documentation

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
