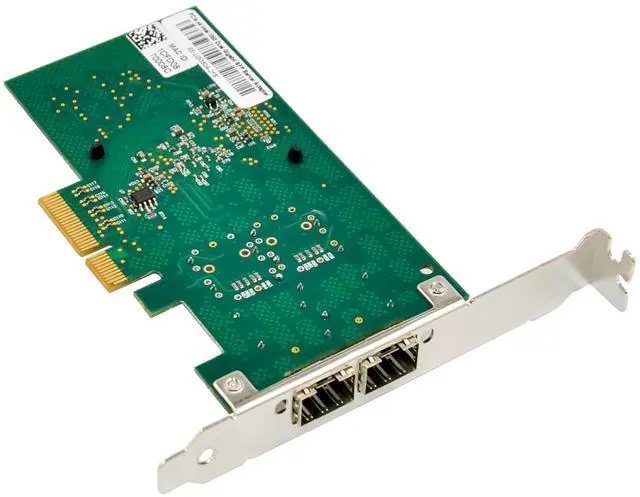

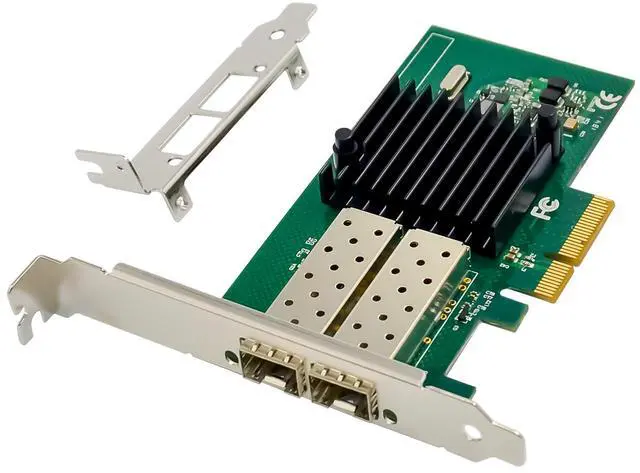

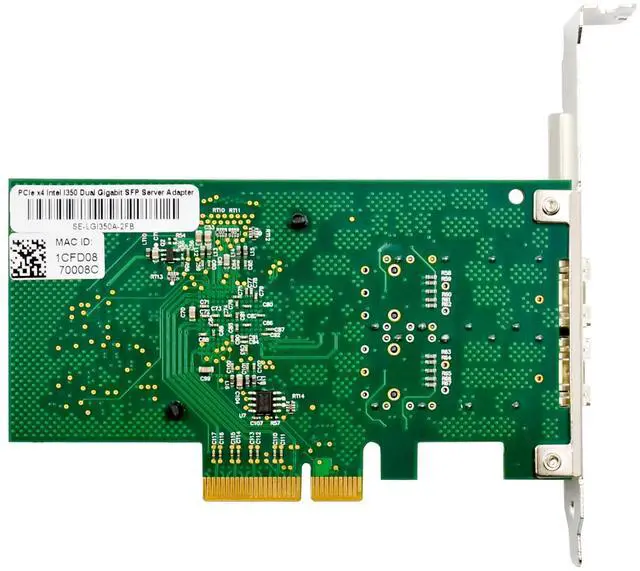

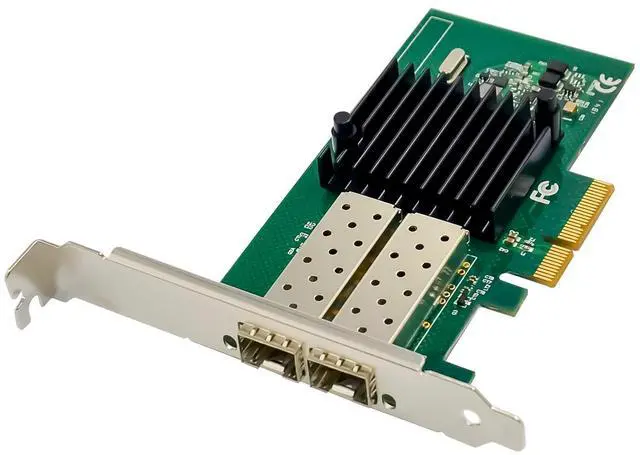

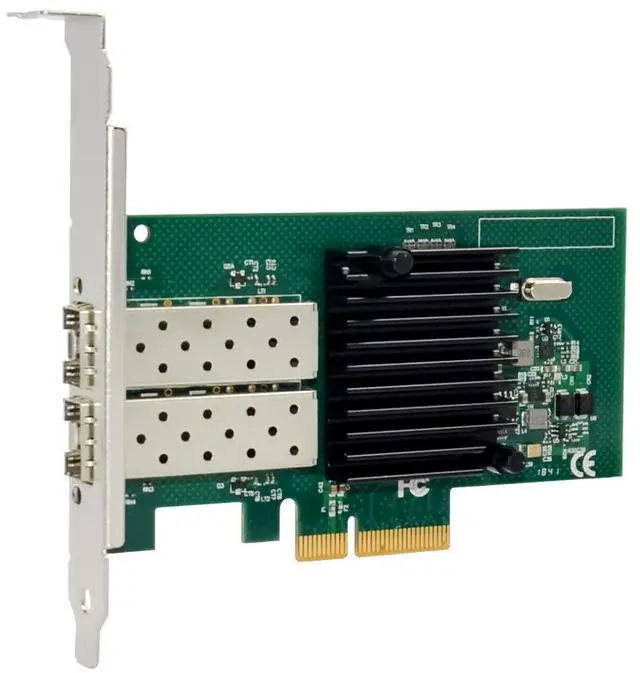

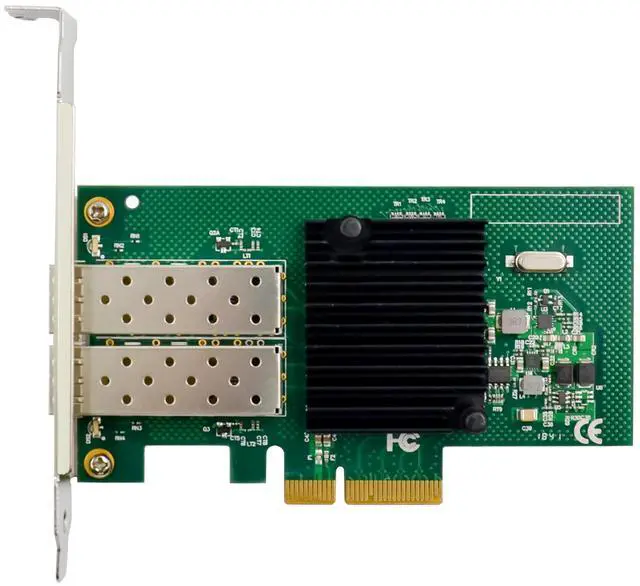

JVFYI PCIe I350 Dual-SFP Gigabit Fiber Server NIC

Halogen-free dual- or quad-port Gigabit Ethernet adapters with copper or fiber interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescingfor increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology from Intel Corporation

Controller Intel NHI350AM2

Transmission rate per port 1000Mbps

Network Standard Physical Layer Interfaces 1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm

1000BASE-LX: 10Km at 9µm

Jumbo Frame Support Up to 9.5 KB

Operating Temperature 0 °C to 55 °C (32 °F to 131 °F)

Boot Option and Virtualization PXE support, Intel® VT-c

LED Indicators Link/Activity LED: Off = No Link; On = Link; Blinking = Activity

Power supply PCI Express +12V±8% / +3.3V±9%

Operating System Windows Server 2003 / 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

Windows XP / Vista / 7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later

Linux SLES 10 / 11 or later/FreeBSD 7.x and later/

VMware ESX/ESXi 4.x/5.x/6.x or later

UnixWare / Open Unix 8 /Sun Solaris x86 / VMware

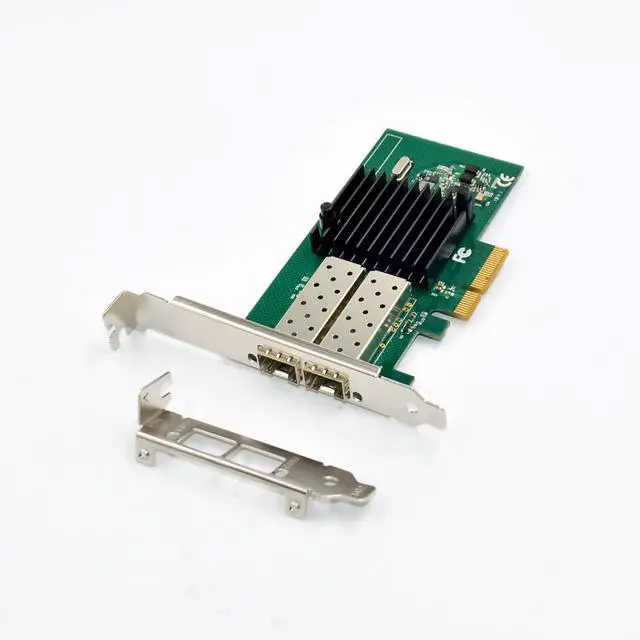

Package content

1 x SFP+ PCIe Network card

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI Express x4/x8/x16 slot

Cabling Requirements:

Intel 1 Gigabit adapters

SFP Module Laser wavelength:850 nanometer (not visible)

LC Cable type:

Multi-mode fiber with 50 micron core diameter, maximum length is 550 meters

Multi-mode fiber with 62.5 micron core diameter, maximum length is 275 meters

Connector type: LC

SFP Module laser wavelength:1310 nanometer(not visible)

LC Cable type:

Multi-mode fiber with 9 micron core diameter, maximum length is 3K meters

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Note: select the correct slot, some systems have physical X8 PCI Express slots that actually only support lower speeds. Please check your system manual to identify the slot

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
