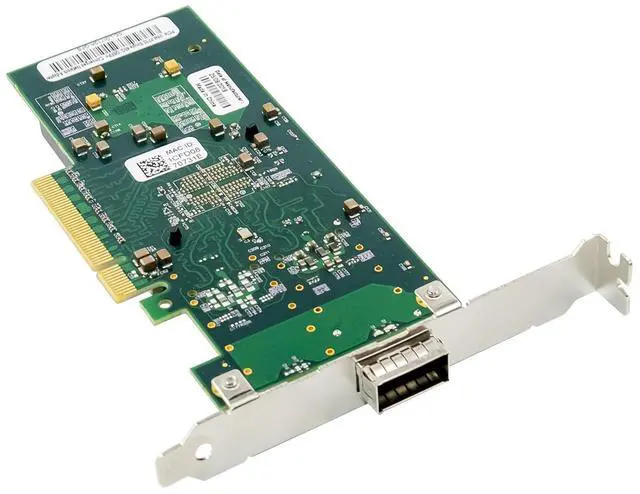

JVFYI PCIe x8 XL710 Single- QSFP+ 40G Server Converged NIC

PCI-Express host interface specification v3.0 x8 and higher

Supports the PCI Bus Power Management specification and section 5 of the PCI Express Base Specification

PCI-Express lanes: x8

Single-port 40GbE adapters

Network Virtualization offloads including VXLAN, NVGRE, Geneve and Network Service Headers.

Intel Ethernet Flow director for hardware based application traffic steering.

Intelligent offloads to enable high performance with Intel Xeon processor-based servers

Packet checksum offloads: Calculates IP,UDP, TCP, and Stream transmission Protocol checksums for insertion into transmitted packets and for integrity checking on received packets, Includes support for UDP and TCP checksums in both IPv4 and IPv6 data grams.

I/O virtualization innovations for maximum performance in a virtualized server

Support for optional End-to-End CRC generation and checking

Supports up to 1024 LAN queue sets(768 typically available)

Supports up to 384 VSIs with average of two TCs allocated per VSI

Supports up to 16VEB/VEPA switching components

Supports Network standard:IEE802.3 40GBASE-SR4 ,40GBASE-LR4,40GBASE-CR4

Supports the PXE remote boot standard ,Also supports Internet small Computer system interface

Chipset: Intel XL710-BM1

Package content

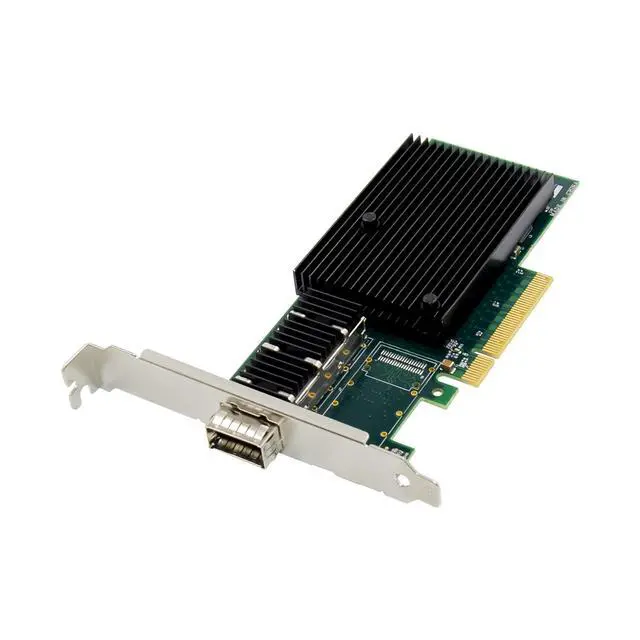

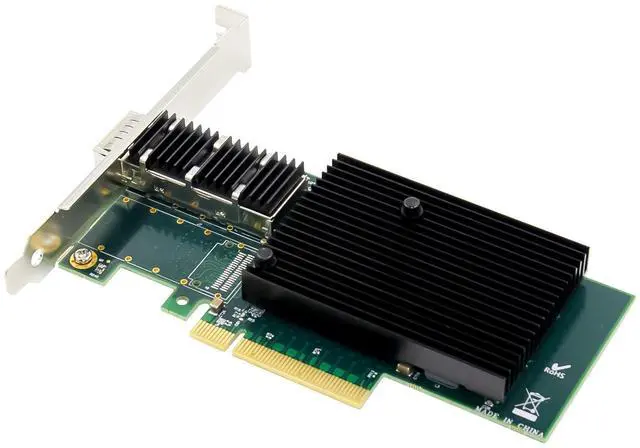

1 x PCIe x8 Intel X710 Single-Port 40G QSFP+ Converged adapter

1 x Users Manual

1 x CD Driver

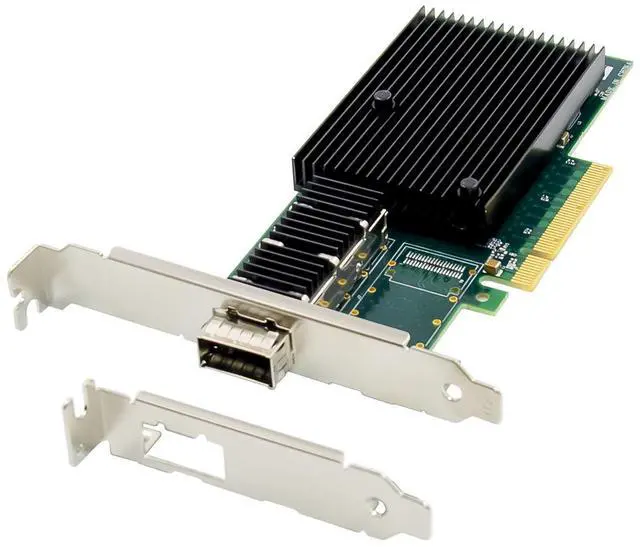

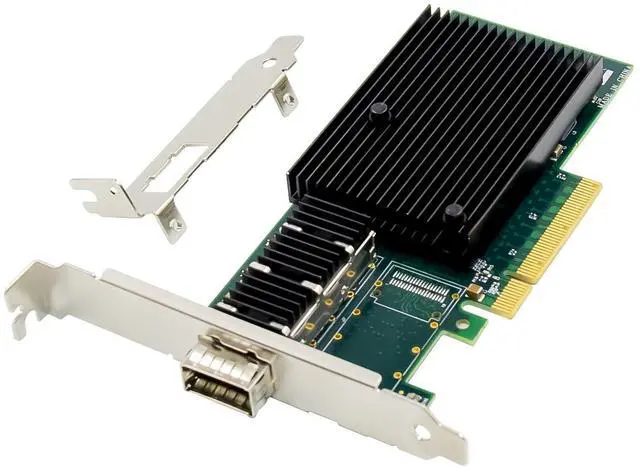

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win-server2012 R2/ Win-server2008 R2/

One available PCI Express x8/x16 slot

Cabling Requirements:

Intel 40 Gigabit adapters

Laser wavelength:850 nanometer (not visible)

SC Cable type:

Multi-mode fiber with 50micron core diameter, maximum length is 550 meters.

Multi-mode fiber with 62.5 micron core diameter, maximum length is 275 meters.

LC cable type:

Multi-mode fiber with 50 micron core diameter, maximum length is 550 meters.

Multi-mode fiber with 62.5 micron core diameter, maximum length is 275 meters.

Copper cables

40 Gigabit Ethernet over QSFP+ Direct Attached Cable(Twinaxial)

Length is 7 meters max

m

Hardware installation

1.Turn off the computer and unplug the power cord.

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter.

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis.

4.Replace the computer cover ,then plug in the power cord.

5.Power on the computer.

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it.

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module.

3.Install the module using the modprobe command.

4.Assign an IP address using the ifconfig command.

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
