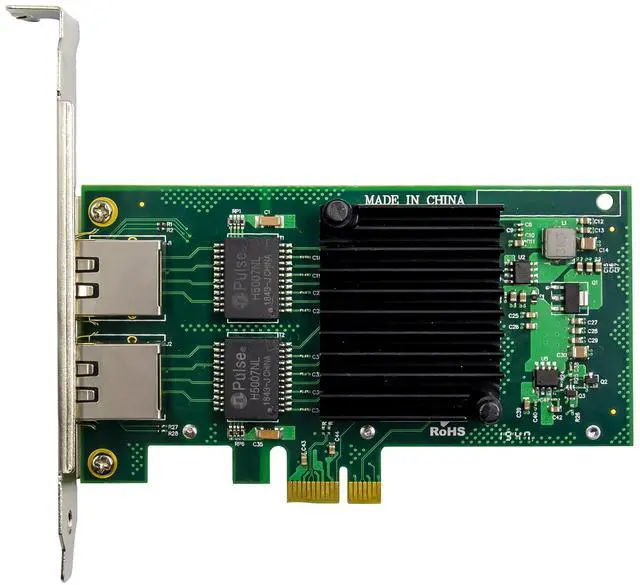

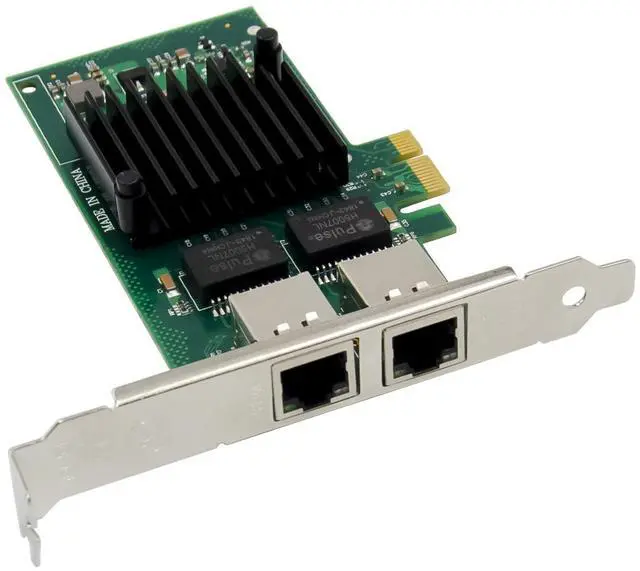

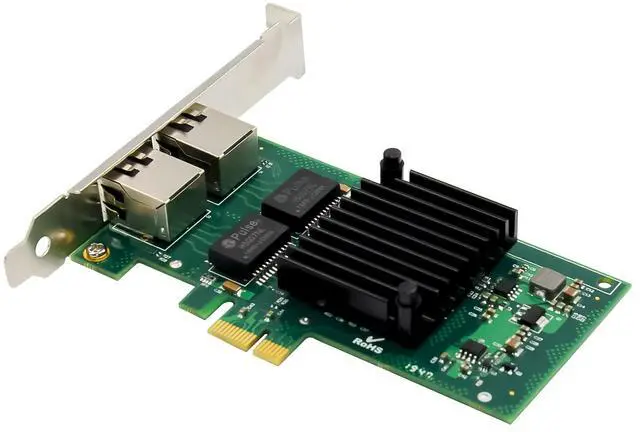

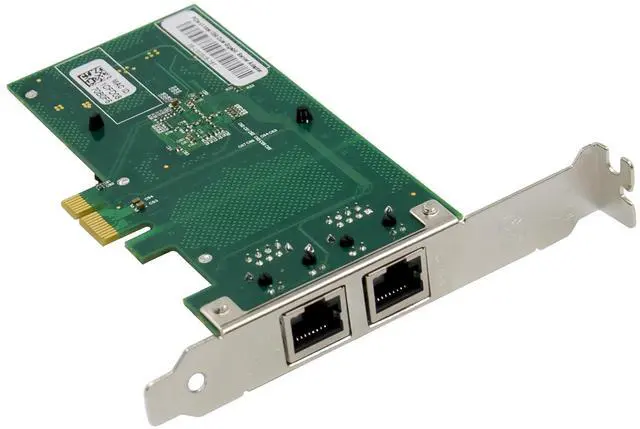

JVFYI PCIe I350AM2 Dual-RJ45 Gigabit Server NIC

Halogen-free dual- or quad-port Gigabit Ethernet adapters with copper or fiber interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescingfor increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology from Intel Corporation

Controller Intel NHI350AM2

Transmission Medium Copper UTP

Cable Type 1000Base-T Cat 5E / Cat6 Or Higher:Up to 100m

100Base-Tx Cat5/Cat 5E/ Cat6 Or Higher:Up to 100m

10Base-T Category 3/4/5/5E/6 Or Higher:Up to 100m

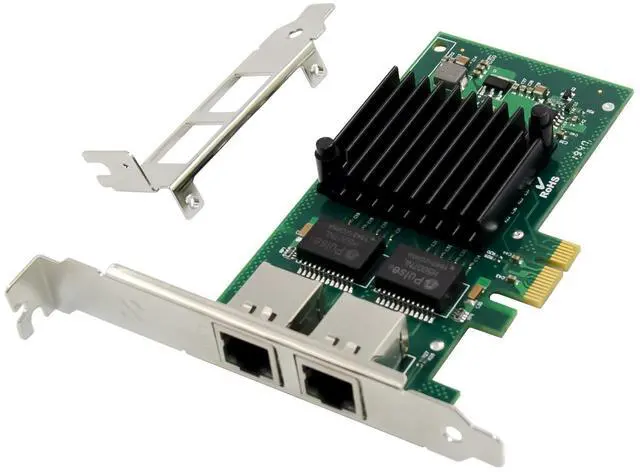

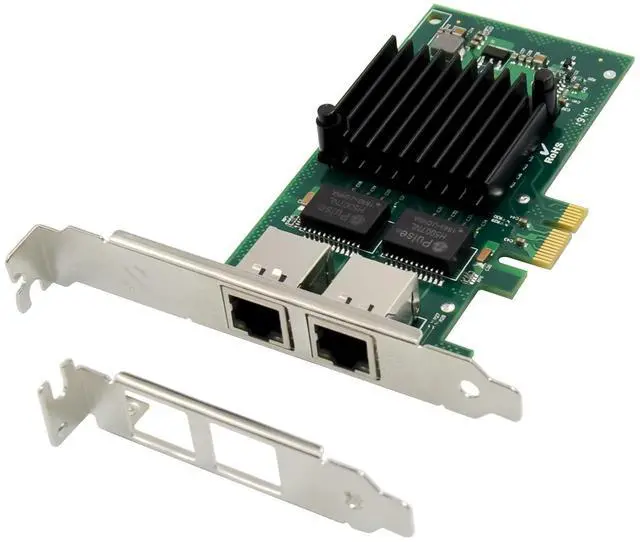

Bracket Low Profile Bracekt and Full-height Bracket

Power Dissipation (MAX) 2.0W

System requirements Windows 7/8/8.1/10/ XP/ Vista

Windows Server 2003 /2008 /R2/2012 /R2/2016 /R2

Novell Netware 5.x/6.x or later

Linux kernel version 2.4.x/2.6.x/3.x/4.x or later

FreeBSD 7/8/9 or later

Sun Solaris 9/10/11 or later

VMware ESX/ESXi 4.x/5.x/6.x or later

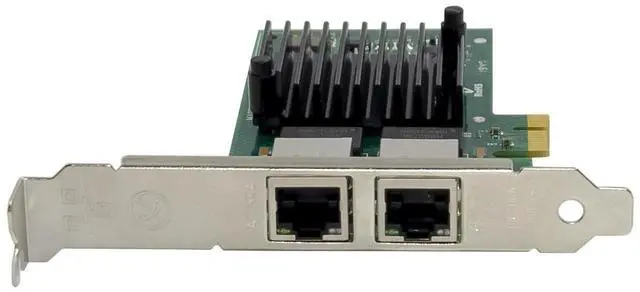

Connector 2* RJ45

Bus PCI Express v2.1 ( 5.0GT/s) x4, Compatible with PCIe x8 or x16

Data Rate Per Port 10Mbps/100Mbps/1000Mbps

Technical Parameters

Ethernet power management Yes

IEEE* 802.3 adaptive Yes

Support adaptation rate 10BASE-T, 100BASE-TX, 1000BASE-T

IEEE Standard / Network topology IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100base-TX,IEEE 802.3 az,IEEE 802.1Q VLAN

IEEE 802.1ad

PCI-SIG * SR-IOV Support Yes

Jumbo frame Support Yes

VMDq Yes

DPDK Support Yes

PXE Support Yes

iSCSI Support Yes

WOL Support Yes

FCoE Support No

Environmental Parameters

Operating Temperature 0 to 55 (32 to 131 )

Storage Temperature -40 to 70 (-40 to 158 )

Storage humidity 35% to 90%, non condensing

LED Indicators

LED Indicators 1000Mbps:Link Yellow+ Green blinking

Package content

1 x PCIe Network card

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Available PCI Express x1/x4/x8/x16 slot

Cabling Requirements:

Intel 1 Gigabit adapters

For 1000BASE-T OR 100BASE-TX.use Category 5 or Category5e wiring, twisted 4-pair copper:

Make sure you use Category 5 cabling that complies with the TIA-568 wiring specification For more information on this specification.

Length is 100 meters max.

Category 3 wiring supports only 10Mbps

CAUTION: If using less than 4-pair cabling, you must manually configure the speed and duplex setting of the adapter and the link partner. In addition,with2-and3-pair cabling the adapter can only achieve speeds of up to 100Mbps

For 100BASE-TX.use Category 5 wiring.

For10BASE-T.use Category 3 or 5wiring

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
