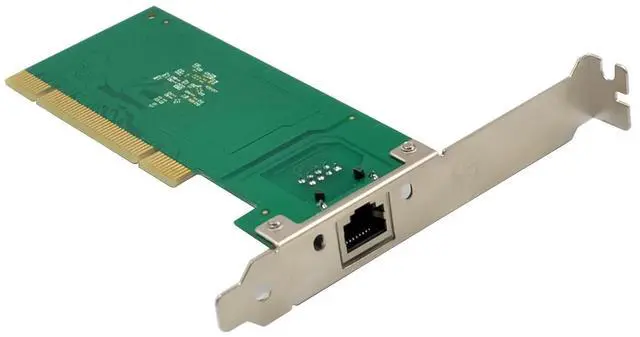

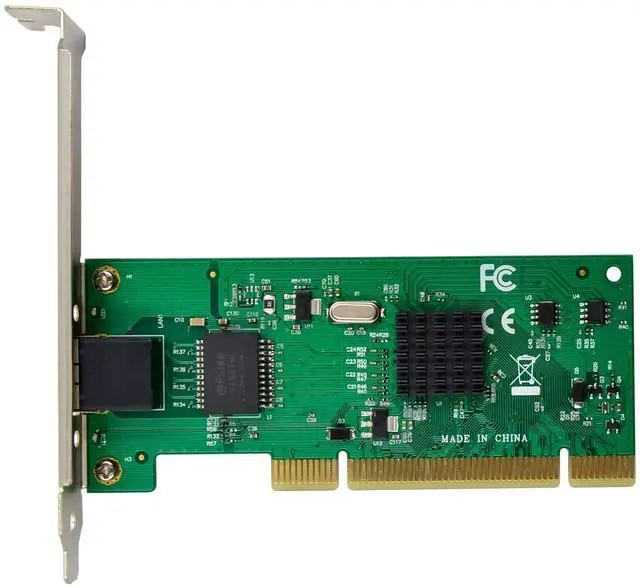

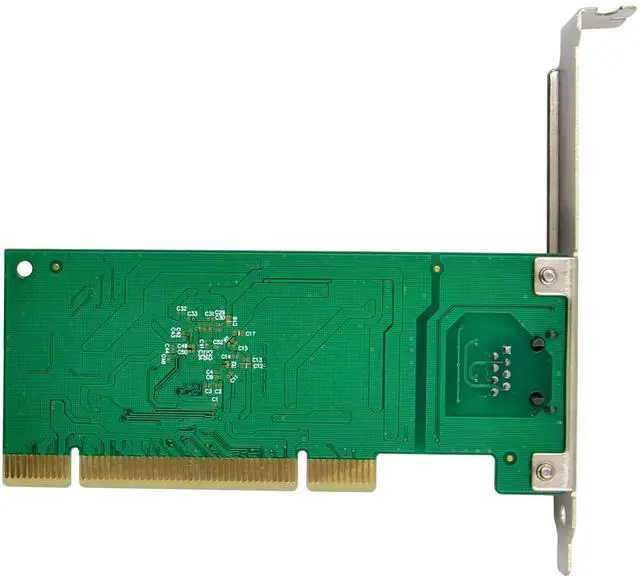

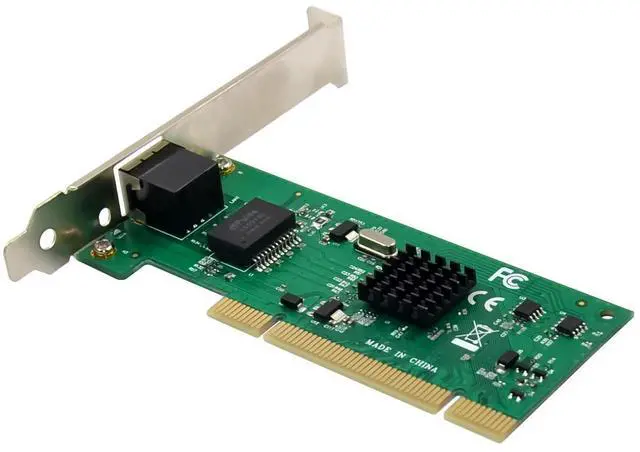

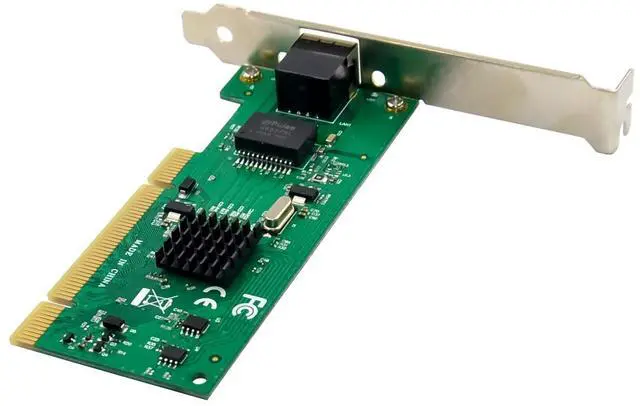

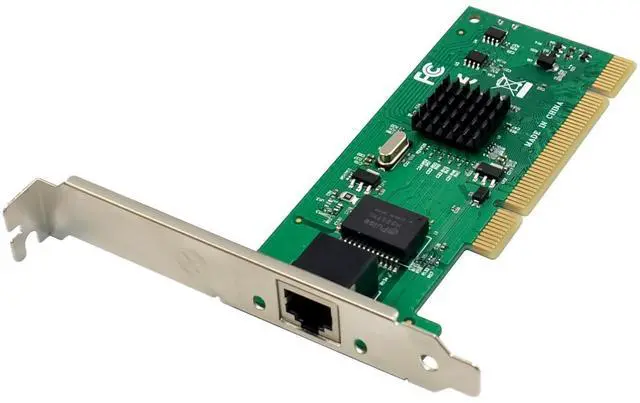

JVFYI PCI RC82540 Single-RJ45 Gigabit Ethernet NIC

Complies with PCI BUS Revision 2.2 32bit 33/66Mhz

Complies with PCI Bus Power Management Interface Specification Rev1.1/ACPI v2.0

64KB configurable RX and TX packet FIFO

Integrated PHYs for 10/100/1000Mb/s full-and half-duplex operation

Automatic link configuration including speed, duplex, and flow control

Transmit TCP segmentation IP.TCP. and UDP checksum off-loading capabilities on RX and TX

IEEE802.1Q VLAN support with VLAN tag insertion and stripping and packet filtering for up to 4096 VLAN tags

Interrupt moderation controls

Supports Jumbo Frames up to 16Kb

Wake on LAN support

Chipset: RC82540EM

Drivers support for Linux , VMWare ESXi, Windows 2000/XP/Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Feature table

Product Name PCI INTEL RC82540 Gigabit RJ45 network adapter

Bus Type PCI 2.2 32bit 33/66MHz

PCI Signaling 3.3V and 5V

Power dissipation 2.0W(typical)

Transmission speed 1000/100/10Mbps

Network interface RJ45 Copper

Network standards IEEE802.1P, IEEE802.1Q, IEEE802.3z, IEEE802.3x

Operating temperature 0°C to 70°C (maximum); Does not require a heat sink or forced airflow

Storage temperature -65°C to 140°C

Operating systems Linux , VMWare ESXi, Windows 2000/XP/Win7/Vista/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Package content

1 x PCI INTEL RC82540 Gigabit RJ45 Network adapter

1 x Users Manual

1 x CD Driver

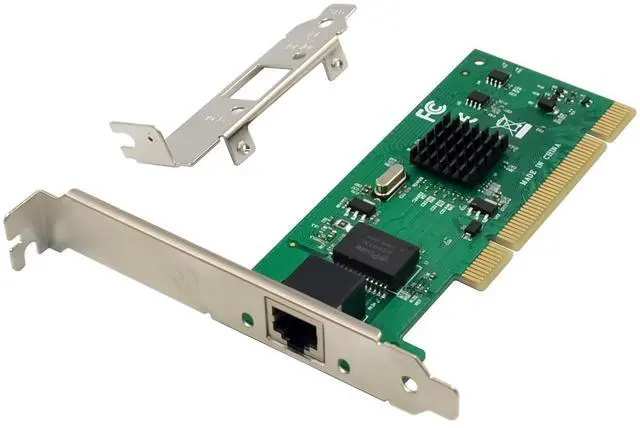

1 x Low profile bracket

Accessories

System Requirements

Linux , VMWare ESXi, Windows 2k/XP/Win7/Vista/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover, then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it.

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module.

3.Install the module using the modprobe command.

4.Assign an IP address using the ifconfig command.

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
