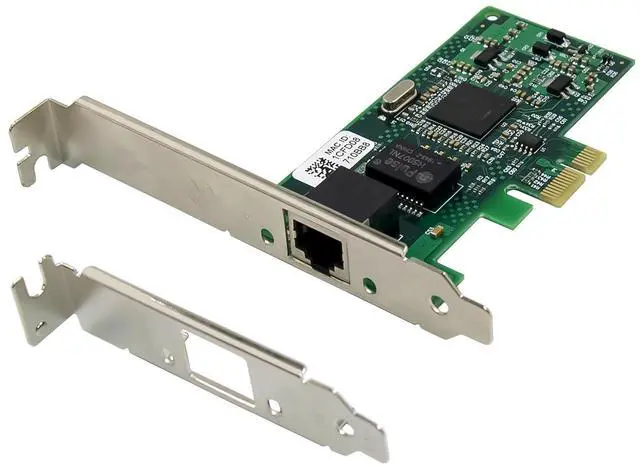

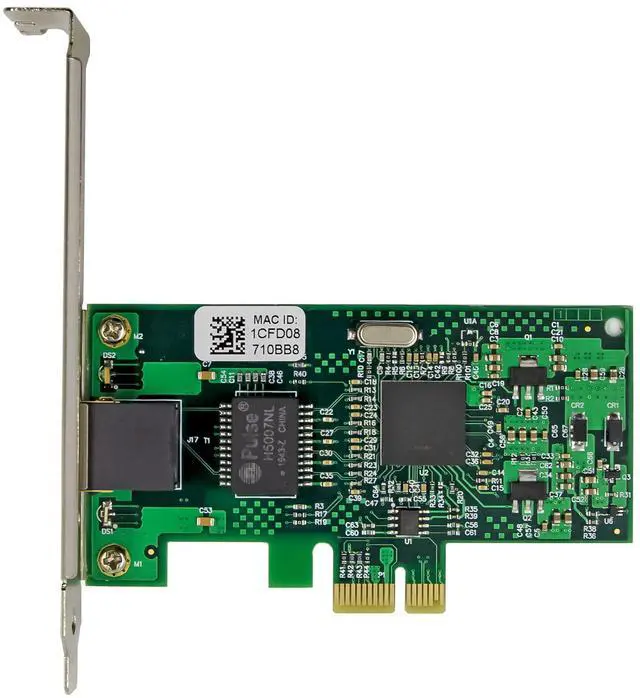

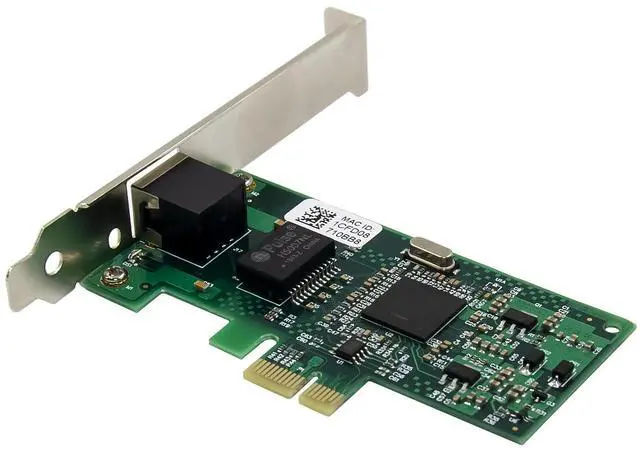

JVFYI PCIe 82573L Single-RJ45 Gigabit Server NIC

Fully compliant with PCI-Express Base Specification Revision1.1

Single-Lane(x1)PCI-Express with throughput up to 2.5Gbps

Fully Plug and Play compatible

Full-duplex operation at 10/100/1000Mb/s

Half-duplex operation at 10/100Mb/s

10/100/1000 data rate auto negotiation operation

Fully compliant with IEEE802.3,802.3u,802.3ab

Support full duplex flow control(IEEE802.3x)

Supports IEEE802.1P Layer 2 Priority Encoding

Supports IEEE802.1Q VLAN tagging

IPv4 and IPv6 checksum offload support

Receive Side Scaling(RSS) with two hardware receive queues

Supports jumbo frame to 9k bytes

Crossover detection and Auto correction operation

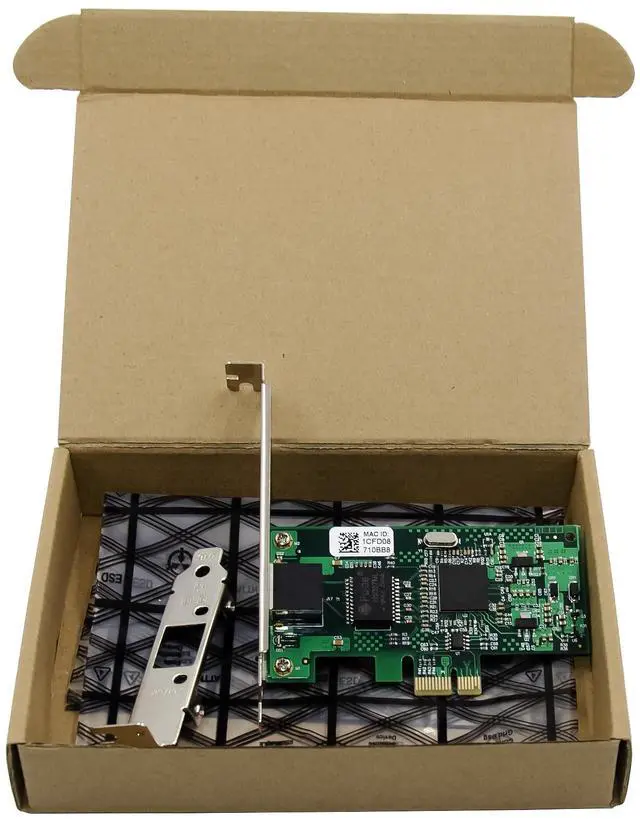

Package content

1 x PCIe Intel 82573L Gigabit network adapter

1 x Users Manual

1 x CD

1 x Low profile bracket

System Requirements

FreeBSD, Linux, VMware ESXi,XP,Vista,8,8.1,and 10 32/64bit

Windows server 2003/Server2008 R2/Server2012 R2

One available PCIe x1/x4/x8/x16 slot

Cabling Requirements:

Intel 1 Gigabit adapters

For 1000BASE-T or 100BASE-TX.use Category 5 or Category5e wiring, twisted 4-pair copper:

Make sure you use Category 5 cabling that complies with the TIA-568 wiring specification For more information on this specification.

Length is 100 meters max.

Category 3 wiring supports only 10Mbps

CAUTION: If using less than 4-pair cabling, you must manually configure the speed and duplex setting of the adapter and the link partner. In addition,with2-and3-pair cabling the adapter can only achieve speeds of up to 100Mbps

For 100BASE-TX.use Category 5 wiring.

For10BASE-T.use Category 3 or 5wiring

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it.

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module.

3.Install the module using the modprobe command.

4.Assign an IP address using the ifconfig command.

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
