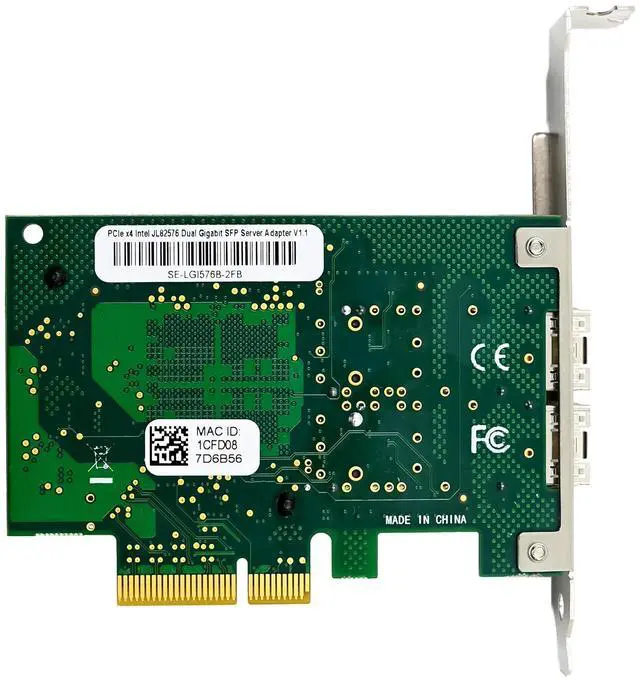

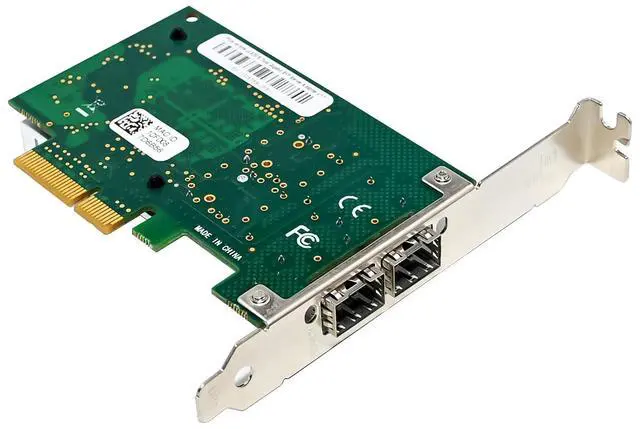

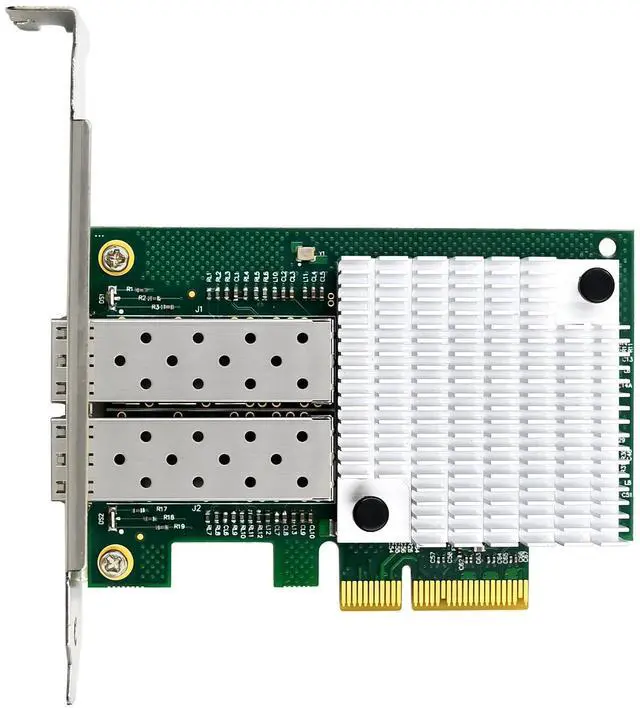

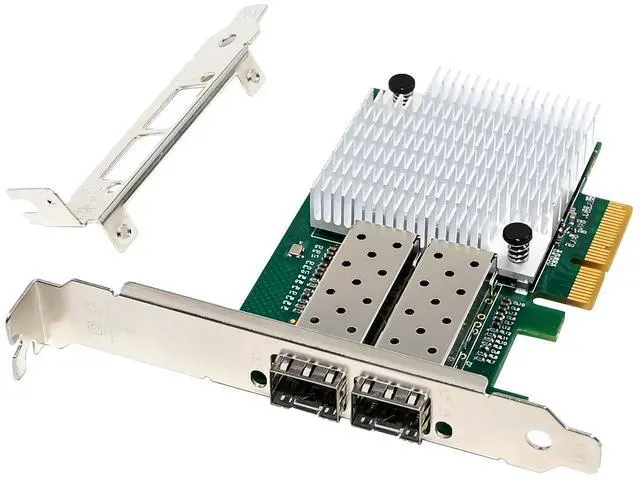

JVFYI PCIe x4 JL82576EB Dual 1GbE SFP Server NIC v2.0

PCI-Express host interface specification v2.0 with 2.5GT/s BUS width

Chipset: Intel JL82576EB

PCI-Express lanes: x4

Complies with dual port 1GbE SFP port

Complies with the IEEE802.3ab specification

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 9.5K

Supports UDP.TCP and IP Checksum offloading

Statistics for management and RMON

Support for virtual machines device queues

Next Generation VMDq Support (8VMs)

Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Package content

1 x SFP PCIe Network card

1 x Users Manual

1 x CD Driver

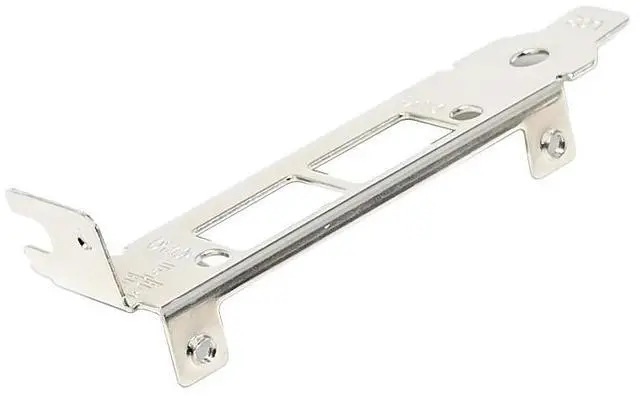

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI Express x4/x8/x16 slot

Cabling Requirements:

Intel 1 Gigabit adapters

SFP Module Laser wavelength:850 nanometer (not visible)

LC Cable type:

Multi-mode fiber with 50 micron core diameter, maximum length is 550 meters

Multi-mode fiber with 62.5 micron core diameter, maximum length is 275 meters

Connector type: LC

SFP Module laser wavelength:1310 nanometer(not visible)

LC Cable type:

Multi-mode fiber with 9 micron core diameter, maximum length is 3K meters

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
