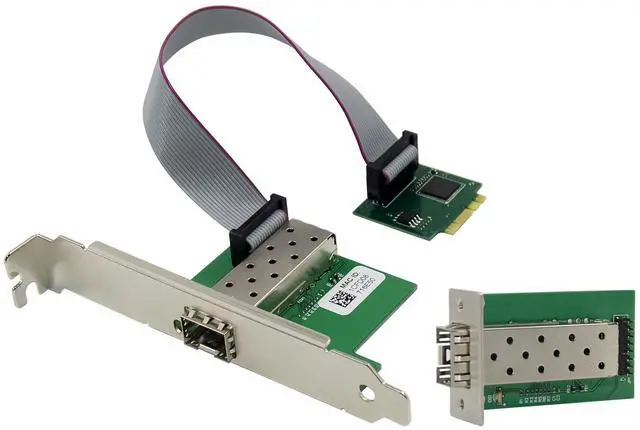

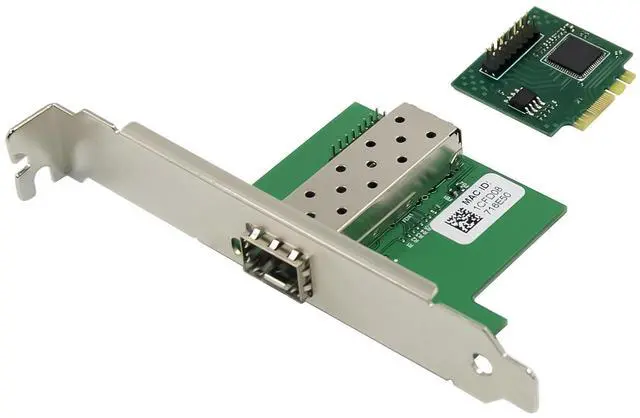

JVFYI M.2 A+E KEY I210 Single-SFP GbE Server NIC

Compliant with PCI Express MINI card Electromechanical Specification 1.2

Single-lane(x1)PCI-Express End-point controller with PHY integrated

Compliant with PCI Express 2.0 Gen1

Compliant with PCI Express M.2 Specification version1.0

Compliant with PCI Power Management 1.2

Connector type: A+E KEY, size: 22*30mm

SFP slot supporting the following transceivers: Mini GBiC

1000SX Multi mode, 1000LX Single mode, 1000BX Single mode WDM

Chipset: Intel WGI210AS

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 9K

Supports Checksum offloading

Drivers for Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux / DOS

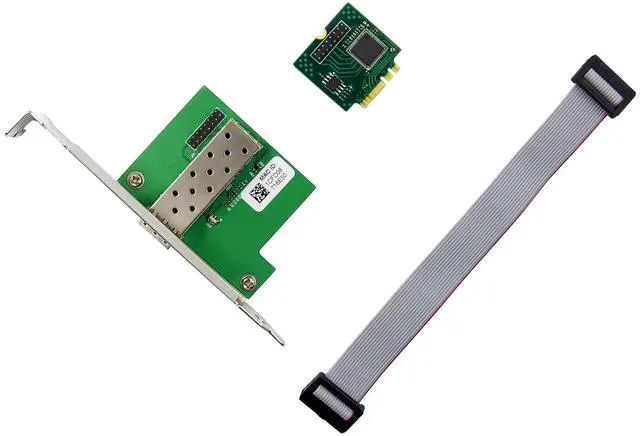

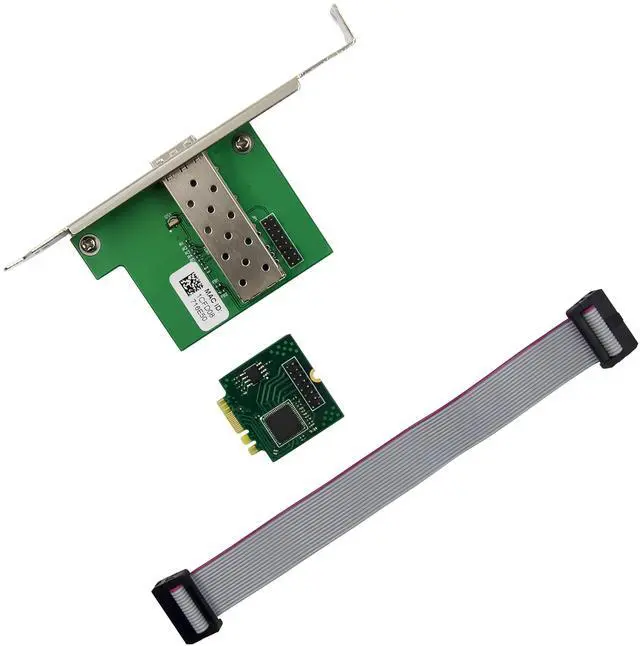

Package content

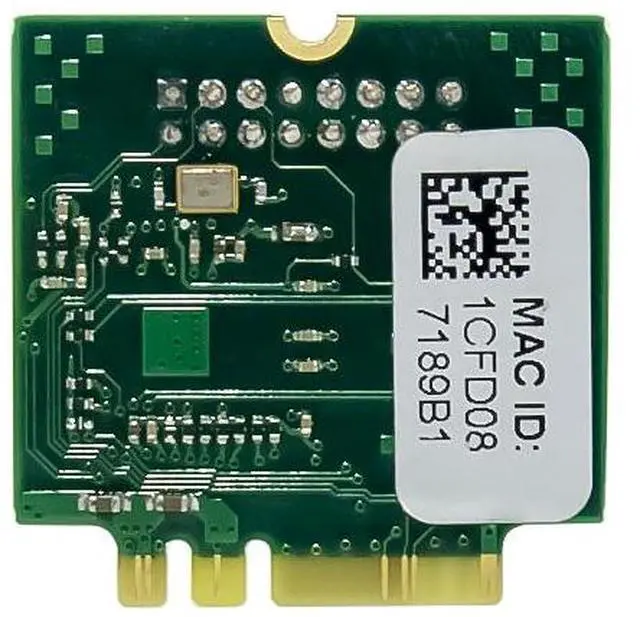

1 x M.2 A+E Intel I210 Network Adapter Main board

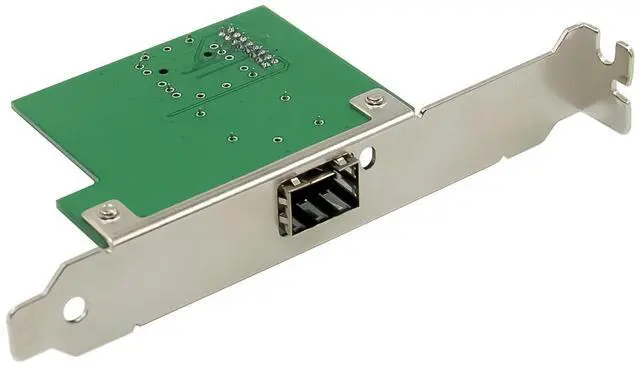

1 x SFP Fiber Network Adapter daughter board

1 x 16Pin Network cable

1 x Users Manual

1 x CD

1 x Low profile bracket

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available M.2 A+K KEY slot

Cabling Requirements:

Intel 1 Gigabit adapters

SFP Module Laser wavelength:850 nanometer (not visible)

LC Cable type:

Multi-mode fiber with 50 micron core diameter, maximum length is 550 meters

Multi-mode fiber with 62.5 micron core diameter, maximum length is 275 meters

Connector type: LC

SFP Module laser wavelength:1310 nanometer(not visible)

LC Cable type:

Multi-mode fiber with 9 micron core diameter, maximum length is 3K meters

Hardware installation

1.Turn off your computer and all external devices connected to it.

2.Open the computer case. Refer to your computer user manual for more details

3.Find an available Mini PCIe slot and remove the slot bracket, Save the bracket screw for later use.

4.Insert the main card to the Mini PCIe slot firmly and evenly ,Take care not to force it into the slot. Once you have properly positioned the main card into the slot, secure it with the screw you have just saved.

5.Connect the SATA cable and POWER cable between the main card and the daughter card.

6.Find an empty expansion slot on the back panel of the computer case and remove the metal bracket. Save the bracket for later use.

7.Place the bracket of the daughter card on the expansion slot on the back panel and secure it with the bracket screw you have just saved.

8.Connect the system to network by inserting the SFP module into SFP Port on the daughter card.

9.Secure the computer case and switch on your computer.

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
