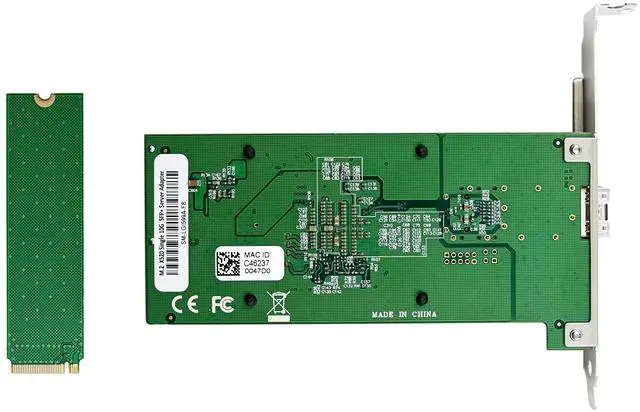

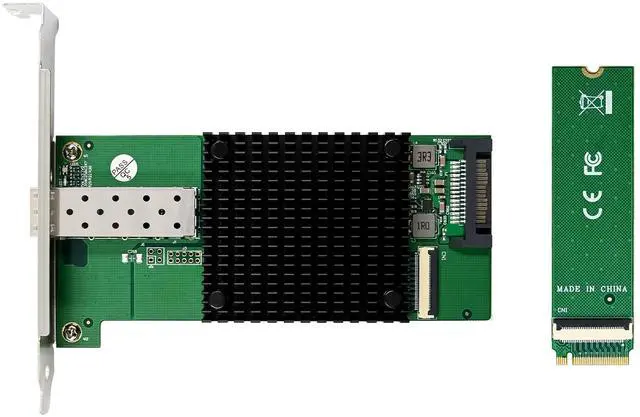

JVFYI M.2 M KEY X520 10GbE SFP+ Ethernet Card

Support M.2 M KEY with PCIe protocol

PCI-Express host interface specification v2.0 with 5GT/s BUS width

PCI-Express lanes: x4

Supports a single 10GbE SFP+ port

Complies with the IEEE802.3ae specification

Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN

Supports Receive-side scaling (RSS)

Supports IPv 4, IPv 6 protocols

Supports Jumbo Frames up to 15.5K

Supports Checksum offloading

Statistics for management and RMON

Support for virtual machines device queues

Interrupt throttling control to limit maximum interrupt rate and improve CPU usage

Chipset: Intel JL82599EN

Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

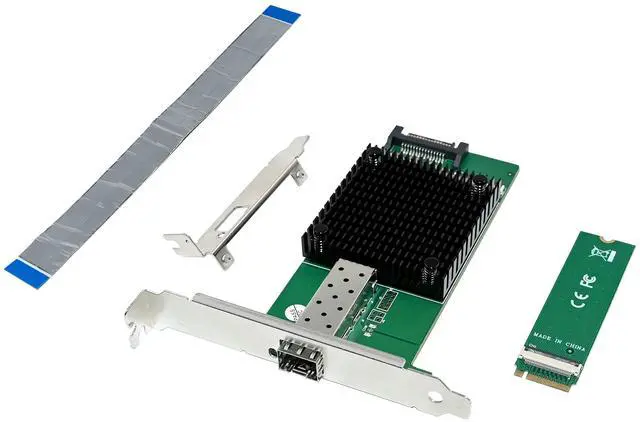

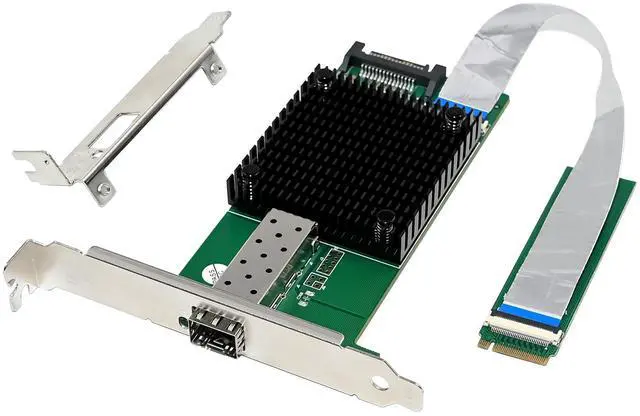

Package content

1 x intel X520 mainboard network card

1 x M.2 2280 converter card

1 x Users Manual

1 x CD Driver

1 x Low profile bracket

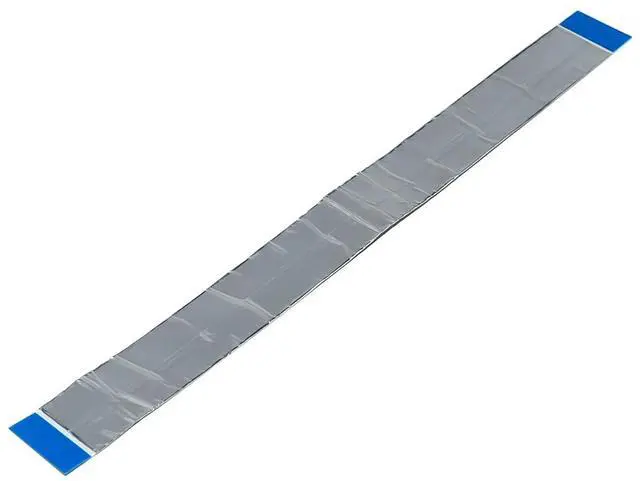

1 x FPC Cable

Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Available PCI Express x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Note: select the correct slot, some systems have physical X8 PCI Express slots those actually only support lower speeds. Please check your system manual to identify the slot

Feature table

Product name M2 M KEY INTEL X520 Single-Port 10G SFP+ Ethernet card

Media type Fiber SFP+

Interface type M.2 M KEY with PCIe protocol

Bus width PCI Express 2.0 x4

Transmission speed 10G/1Gbps

LED Indicators LINK, ACTIVITY

chipset INTEL JL82599EN

Network interface 10GBASE-KX4,1000BASE-BX,10GBASE-CX4,10GBASE-KR,

10GBASE-BX4,IEEE802.3ae,IEEE802.3ak,IEEE802.3ap,IEEE1588v2

Jumbo frame 15.5KB

Intel Virtualization Technology On-chip QoS and Traffic Management, flexible port partitioning, virtual machine device Queues, SR-IOV

Advanced software AFT,SFT,ALB,Teaming,IEEE802.3ad,IEEE802.3 flow control,IEEE802.1P,TCP/IP offload

Storage Over Ethernet iSCSI, FCoE, NFS, UEFI, PXE

Power Consumption 4.8w maximum

Operating Temperature 0-70

Operating systems UEFI/FreeBSD8.0/LINUX/Windows 7/Vista/ 8/ 8.1/ 10, Windows server2003 SP2/server2008 SP2/R2/R2 Core/server2012/SERVER2016/SERVER2019/SERVER2022

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
