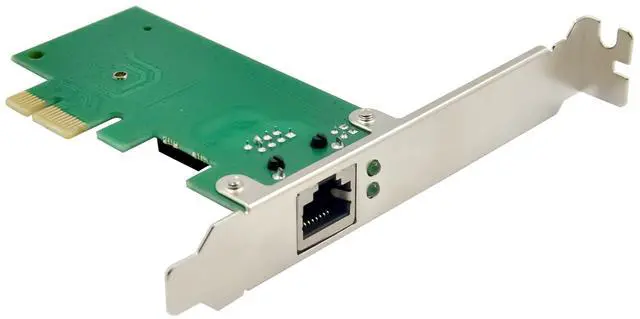

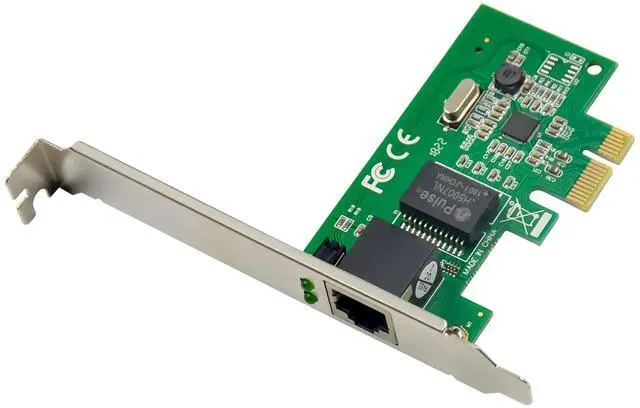

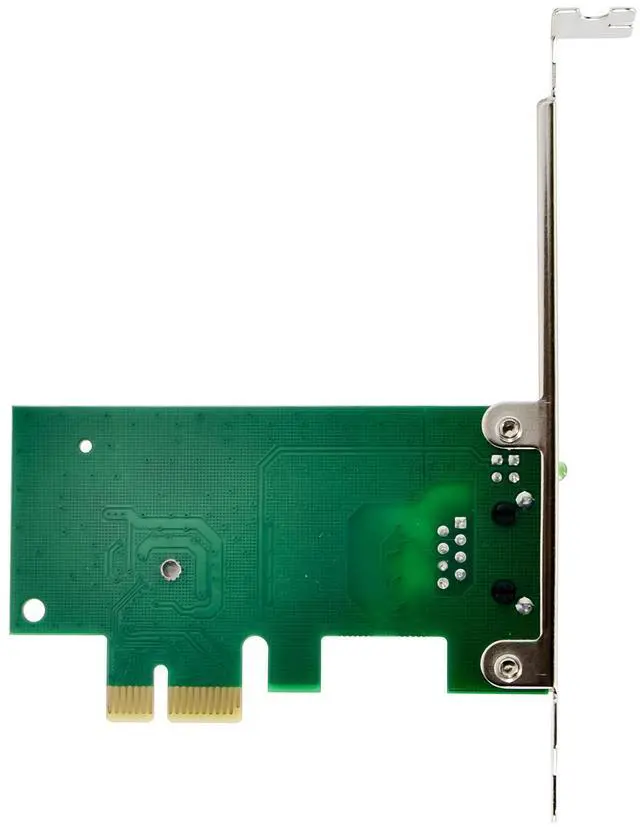

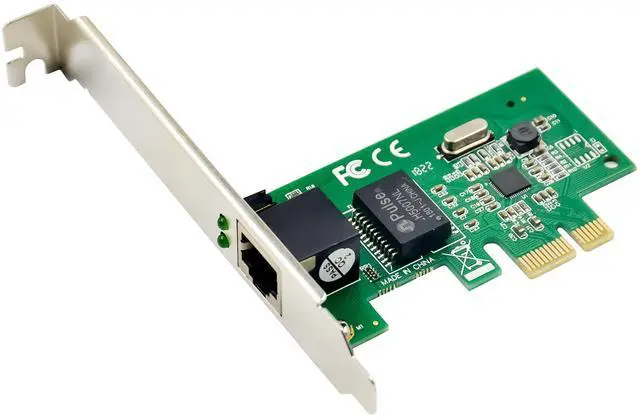

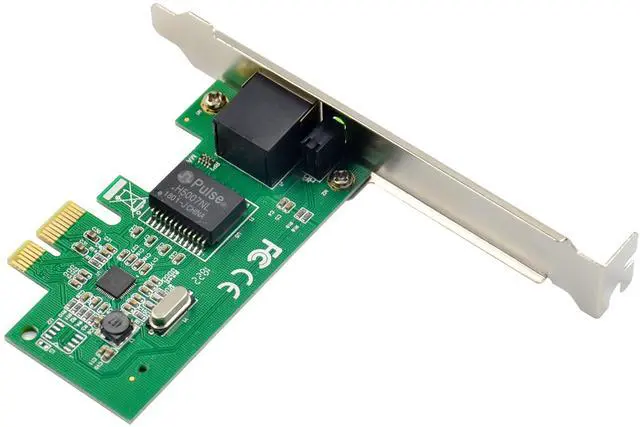

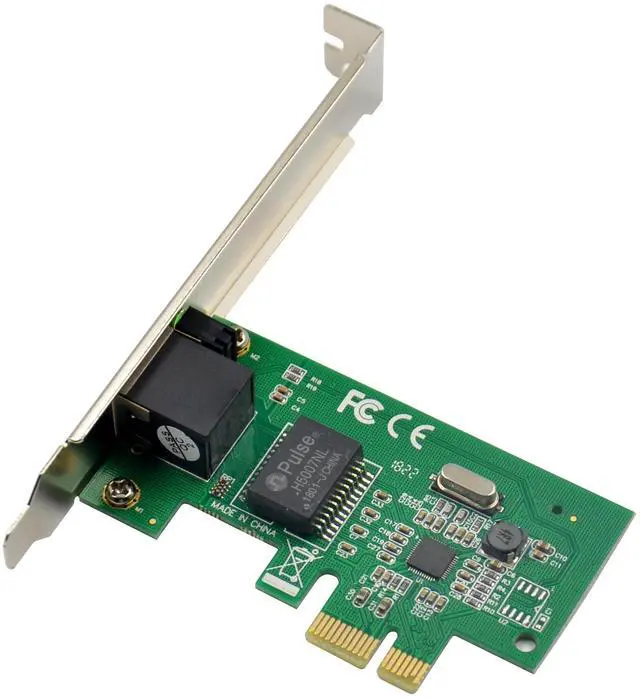

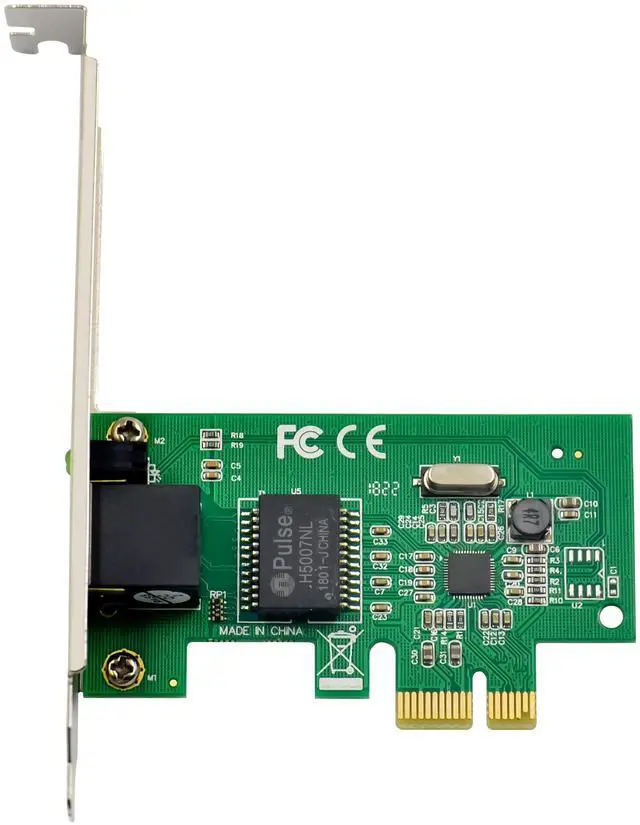

JVFYI PCIe RTL8111E Single-Port Gigabit Ethernet NIC
Limited time offer, ends 01/12 By BRIGHTOR
- This Gigabit Ethernet PCI-Express Card is a high performance 10/100/1000 BASE-T Ethernet LAN controller which designed by RTL8111E chipset, is perfectly for home and office use. It provides a low cost solution for connecting to a high speed Local Area Network with a data transfer rate up to 1000Mbps over a group of 4 twisted pair copper wires to a distance of maximum 100 meters away. It is 100 times faster than, and yet 100% fully backward compatible with 10/100BASE-T system, therefore, it can be easily plugged into almost any existing network with CAT-5 cabling.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Complies with PCI-Express Revision 1.1
PCI-Express 1-Lane (x1) interface
Supports standard and low profile chassis
A high performance 1000BASE-T Ethernet controller card
Backward compatible to 10/100BASE-T networking
10/100/1000Mbps data rate auto negotiation operation
Compatible to existing CAT-5 UTP cabling
Fully compliant with IEEE802.3,IEEE802.3u, IEEE802.3ab
Supports half / full duplex mode and 802.3x Flow Control
Supports IEEE802.1P Layer2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Crossover Detection and Auto Correction operation
Supports power down/link down power saving
Wake-on-LAN and remote wake-up function support
Package content
1 x PCIe RTL8111E Gigabit network adapter
1 x CD (Note: WinXP above the system use system drive can drive, so CD can be optional)
1 x Low profile bracket
Accessories
System Requirements
Linux , Windows® 98se/me/2000/XP/2003/Vista /Win7/2008/Win8 (32/64 bit)
PCI Express-enabled system with an available PCI Express slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter
3.Insert the adapter edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover ,then plug in the power cord
5.Power on the computer
100 Link/Active LED
1000Mbps Link
Driver Installation
1. Please insert the CD driver bound into your CD-ROM Drive.
2. At the Windows desktop, click Start, Run.
3. 1 For Windows® WIN98SE,WinME (32/64 bit)
TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN98SE,WINME\PCIE_Install_5708_1119\setup. exe, click OK.
3. 2 For Windows® WIN2K,XP,Server 2003 (32/64 bit)
TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN2K,XP,2003\PCIE_Install_5790_11182011\setup.exe, click OK.
3. 3 For Windows® Vista,WIN2008 (32/64 bit)
TypeRTL8168,RTL8111C,RTL8111E\Windows\VISTA,WIN2008\Install_Vista_6250_11182011\setup.exe, click OK.
3.4 For Windows® Win7,WIN2008 (32/64 bit)
TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN7,WIN2008\Install_Win7_7049_11182011\setup.exe, click OK.
3.5 For Windows® Win8,Win8.1 (32/64 bit)
TypeRTL8168,RTL8111C,RTL8111E\Windows\Win8,Win8.1\Install_Win8_8.1_8020_09182013\setup.exe, click OK.
4. Follow the on-screen instructions to complete the installation.
Support
More information and settings, please refer to the Adapter User Guides or you can contact us.
