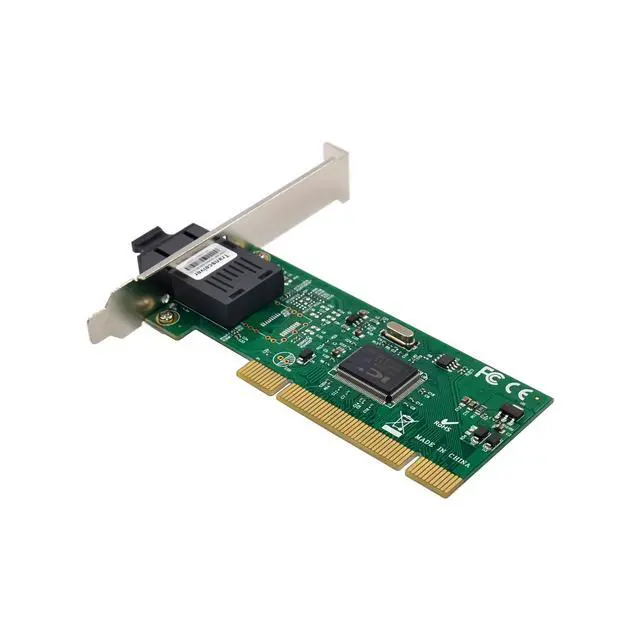

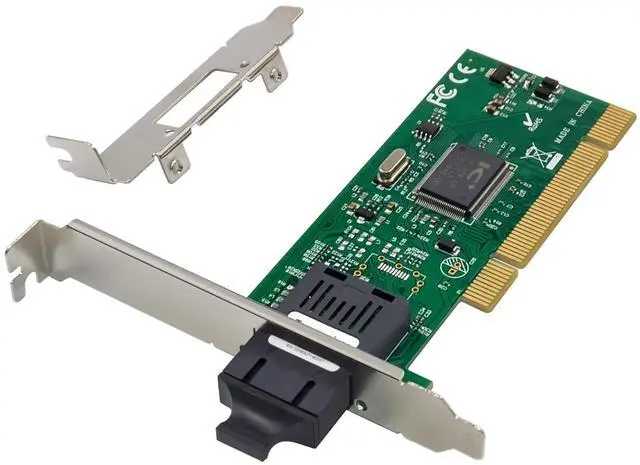

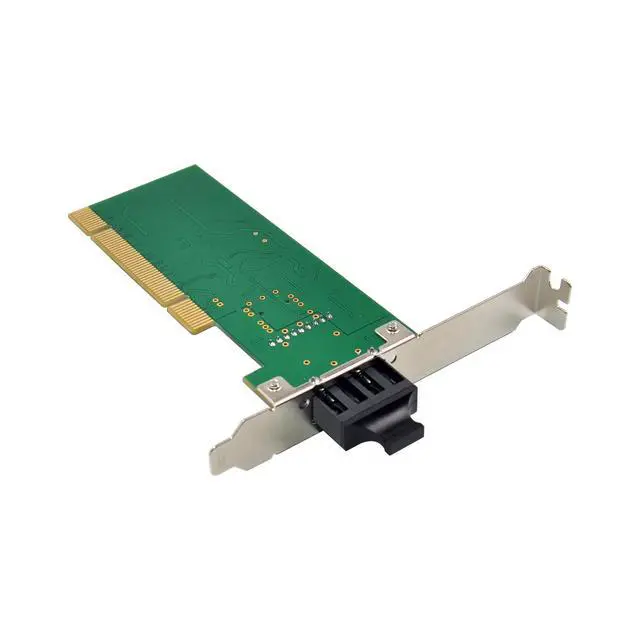

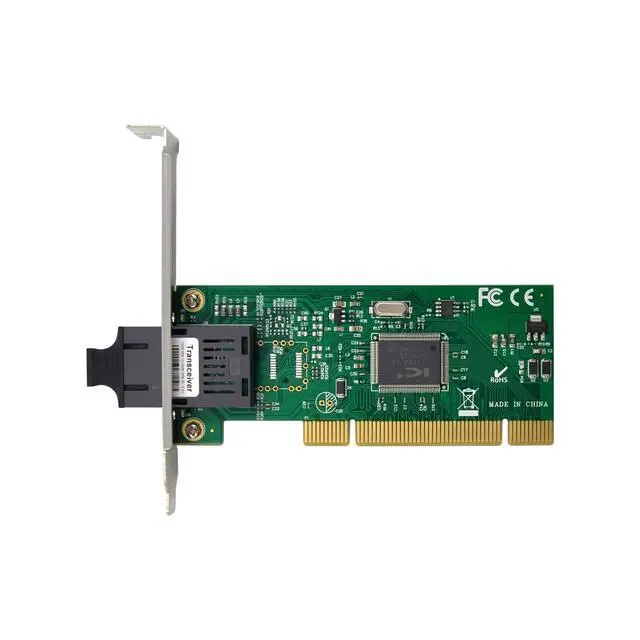

JVFYI PCI IP100A 100M Fiber Network Adapter
Limited time offer, ends 01/09 By BRIGHTOR
- The PCI IP100A 100M Fiber network adapter is a single-chip ,full-duplex,100Mbps Ethernet MAC+PHY incorporating a 32-bit PCI with bus master support. It is designed for use in a variety of applications including workstation NICs, PC motherboards, and other systems utilizing a PCI bus that require network connectivity to an Ethernet or fast Ethernet LAN.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Compliant with PCI BUS Revision 2.2
Compliant with PCI Bus Power Management interface Revision 1.1
Power management capabilities for ACPI 1.0 compliant systems
Full operation with PCI clock form 25MHZ to 33MHZ
Compliant with IEEE802.3 100Base-FX
Support IEEE802.3 Full Duplex Flow Control
Single mode 1310/1550nm can achieve the maximum transmission distance of 20KM
Connector interface: SC type
On-chip transmit and receive FIFO buffers
Wake-On-LAN support
LED status indicator
Transmit polling
Programmable minimum Inter Packet Gap
Management statistics gathering
IP multicast receive and filter support using 64bit hash table
Auto pad insertion for short packets
Drivers for Linux,Window98SE/2000/NT/XP/Win7/Win8/Win8.1/Win10 32 or 64bit

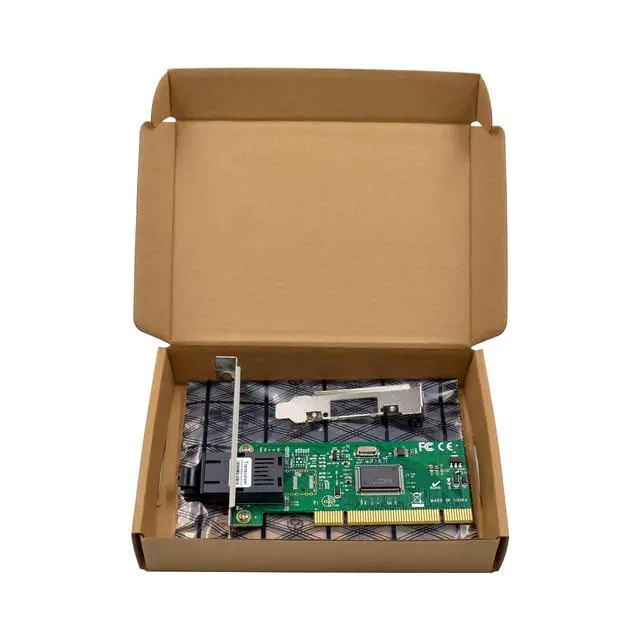

Package content

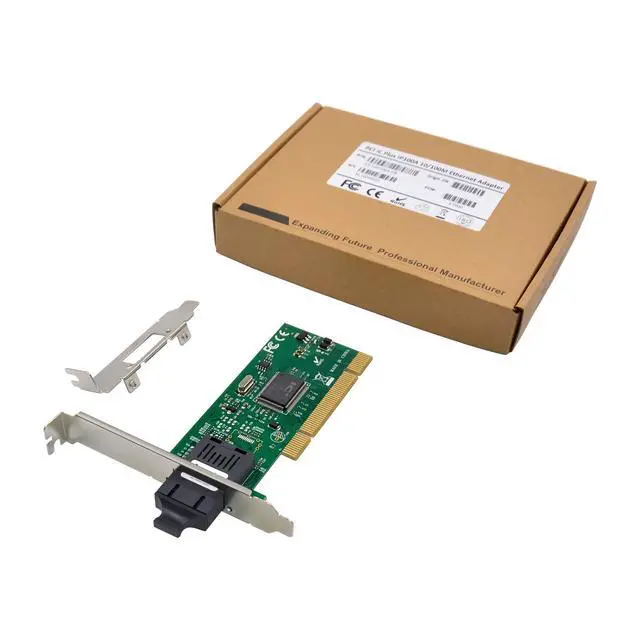

1 x PCI IP100A 100M Fiber network adapter
1 x Users Manual
1 x CD
1 x Low profile bracket
Accessories
System Requirements
Linux , Window98SE/2000/NT/XP/Win7/Win8/Win8.1/Win10
One available PCI slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter
3.Insert the adapter edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover ,then plug in the power cord
5.Power on the computer
Install Drivers
Windows Operating Systems
1. Please insert the CD driver bound into your CD-ROM Drive.
2. Double-click to open the CD-ROM drive and find the driver corresponding to the system.
3.1 For Windows® 98SE
TypeIP100A Driver\Win98SE \fSet98B.exe, Double click it.
3.2 For Windows® ME
TypeIP100A Driver\Win ME\fSetME.exe, Double click it.
3.3 For Windows®2000/NT
TypeIP100A Driver\Win2000\fSet2K.exe, Double click it.
3.4 For Windows® XP/Server2003
TypeIP100A Driver\WinXP_2003\fSetXP.exe, Double click it.
3.5 For Windows® Vista/Win7/Win8/Win8.1/Win10
(32bit )TypeIP100A Driver\Vista_Win7_Win8_Win8.1_Win10\32bit \DPInst32.exe, Double click it.
(64bit )TypeIP100A Driver\Vista_Win7_Win8_Win8.1_Win10\64bit \DPInst64.exe, Double click it.
4. Follow the on-screen instructions to complete the installation.
