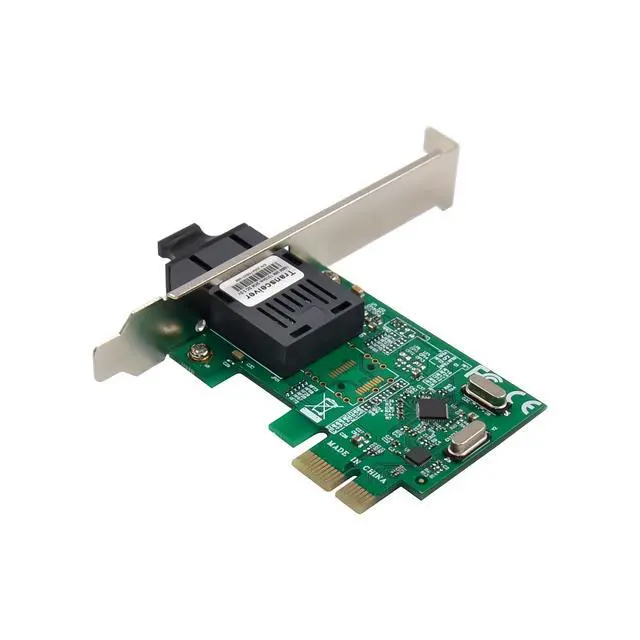

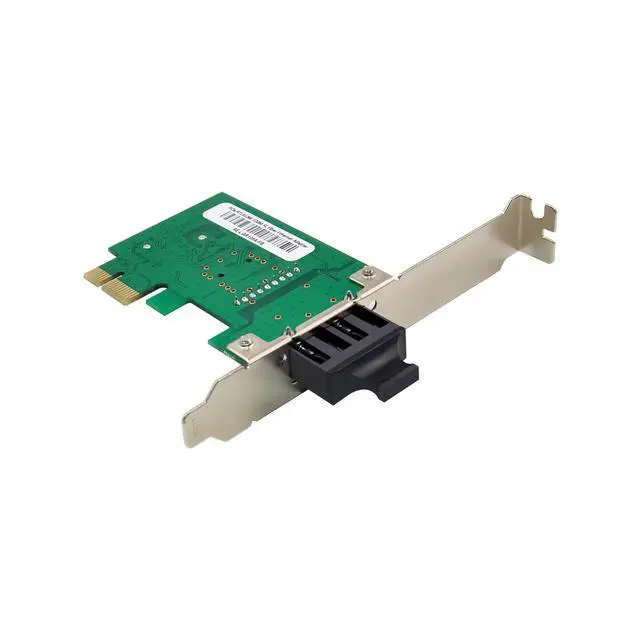

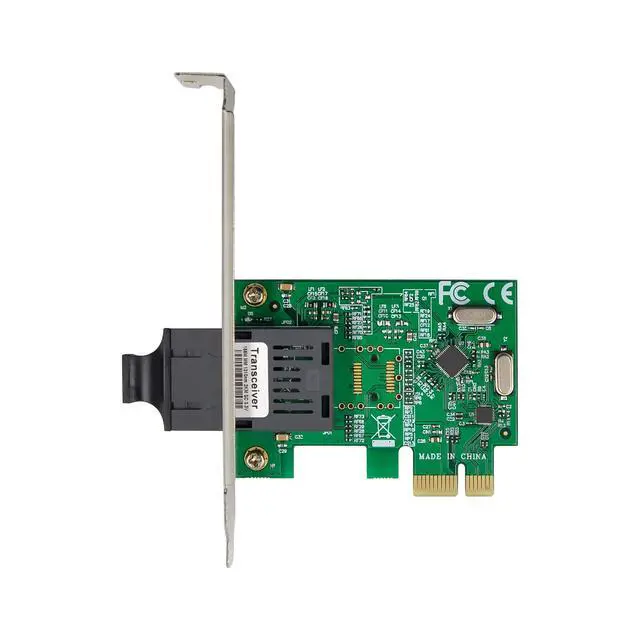

JVFYI PCIe RTL8106E 100M Fiber LC Fast Ethernet NIC

Compliant with PCI Express Revision 1.1

Support 1-Lane 2.5Gbps PCI Express Bus

Integrated 10/100M transceiver

Compliant with IEEE802.3 100MBase-FX

Support Full Duplex Flow Control( IEEE802.3x)

Support IEEE802.1P Layer 2 Priority Encoding

Support IEEE802.1Q VLAN tagging

Support IEEE802.3az Draft2.0(EEE)

Support quad core Receive-Side Scaling(RSS)

Support Protocol offload(ARP&NS)

Wake-on-LAN and remote wake-up support

Support power down/link down power saving

Support hardware ECC(Error Correction Code) function

Support hardware CRC(Cyclic Redundancy Check) function

Microsoft NDIS5,NDIS6 Checksum offload(IPv4,IPV6,TCP,UDP) and Segmentation Task-offload( Large send v1 and Large send v2)

Within Single mode 1310/1550nm can achieve the maximum transmission distance of 20KM

Connector interface: SC type

Drivers for Linux,Window98SE/2000/NT/XP/Win7/Win8/Win8.1/Win10 32 or 64bit

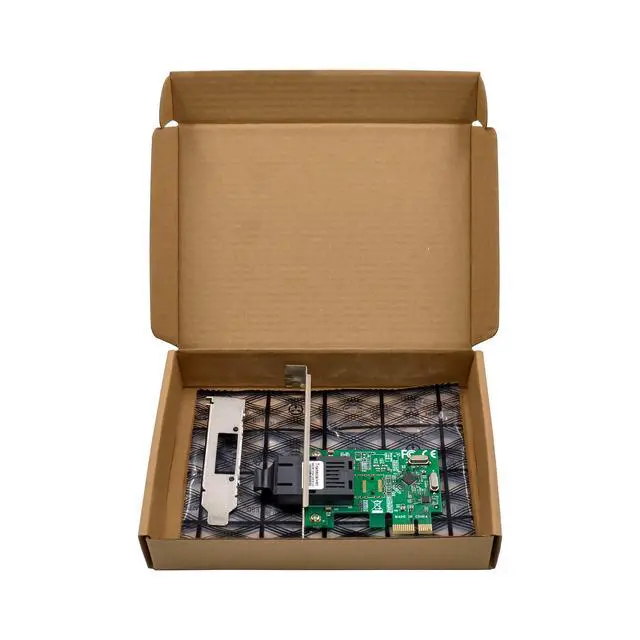

Package content

1 x PCIe RTL8106E 100M Fiber network adapter

1 x Users Manual

1 x CD(Note: WinXP above the system use system drive can drive, so CD can be optional)

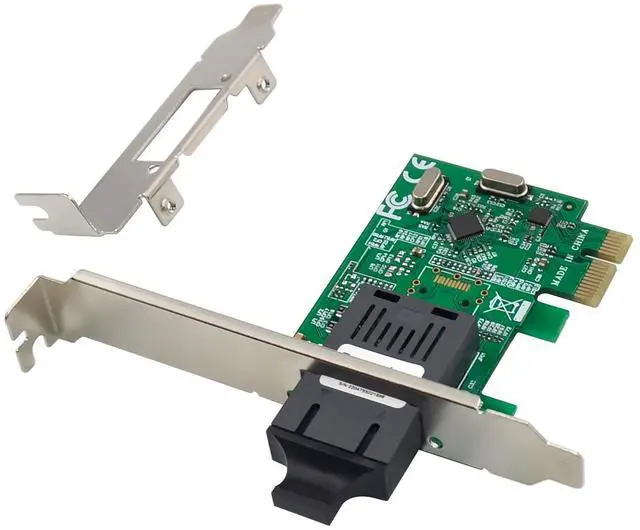

1 x Low profile bracket

Accessories

System Requirements

Linux , Windows98SE/2000/NT/XP/Server2003/Vista/Win7/server2008/Win8/Win8.1/Win10

One available PCI Express x1/x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover ,then plug in the power cord

5.Power on the computer

Install Drivers

Windows Operating Systems

1. Please insert the CD driver bound into your CD-ROM Drive.

2. Double-click to open the CD-ROM drive and find the driver corresponding to the system.

3.1 For Windows® WIN98SE,WinME

TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN98SE,WINME\PCIE_Install_5708_1119\setup. exe, Double click it.

3. 2 For Windows® WIN2K, XP, Server 2003 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN2K,XP,2003\PCIE_Install_5790_11182011\setup.exe, Double click it.

3. 3 For Windows® Vista, WIN2008 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\VISTA,WIN2008\Install_Vista_6250_11182011\setup.exe, Double click it.

3.4 For Windows® Win7, WIN2008 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\WIN7,WIN2008\Install_Win7_7049_11182011\setup.exe, Double click it.

3.5 For Windows® Win8, Win8.1 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\Win8,Win8.1\Install_Win8_8.1_8020_09182013\setup.exe, Double click it.

3.6 For Windows® Win10 (32/64 bit)

TypeRTL8168,RTL8111C,RTL8111E\Windows\Win10\Install_Win10_10003_08202015\setup.exe , Double click it.

4. Follow the on-screen instructions to complete the installation.
