JVFYI PCIe VL805 USB3.0 4-Port Card

Compliant with PCI Express base specification 2.0 backward with PCI Express 1.0

Compliant to Universal Serial Bus 3.0 Specification Revision 1.0

Compliant to Universal Serial Bus 2.0 Specifications

Compliant to eXtensible Host Controller Interface Specification Revision 1.0

Support 4 Ports USB3.0 Type AF

Support Legacy USB Function, Four Down-stream ports Support Super-Speed (5Gbps)High-Speed(480Mbps),Full-Speed(12Mbps) and Low-Speed (1.5Mbps)

No external power supply required

Fully plug ,play and hot plug compatible

Chipset: VL805

Package content

1 x PCIe VL805 USB3.0 4-Port Card

1 x Users Manual

1 x Low profile bracket

1 x CD

Accessories

System Requirements

Linux, Win7/Win8/Win8.1/Win10 32bit or 64 bit

One available PCI-Express x1/x4/x8/x16 slot

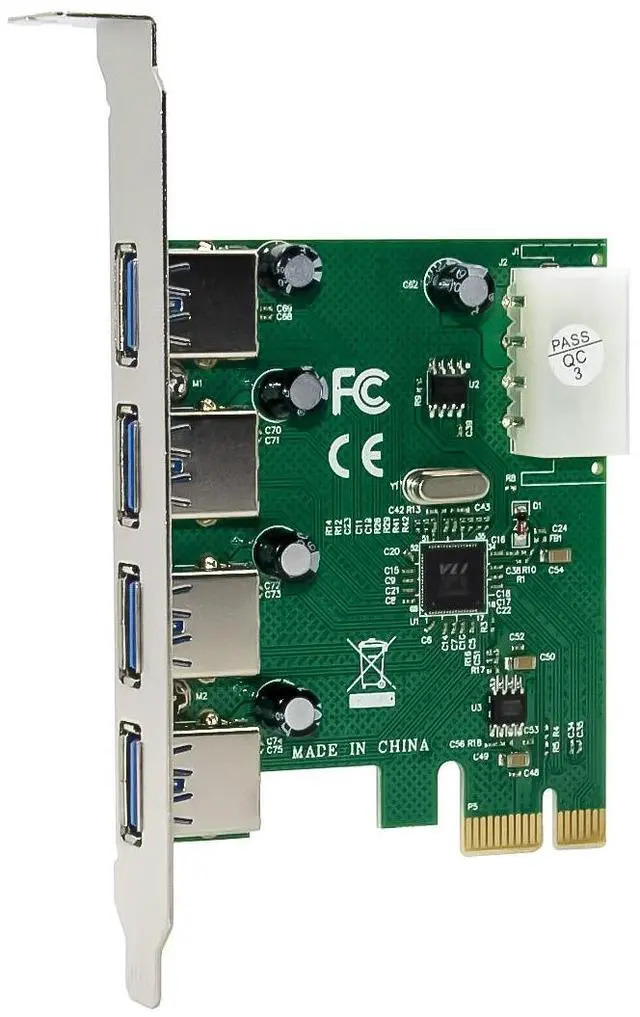

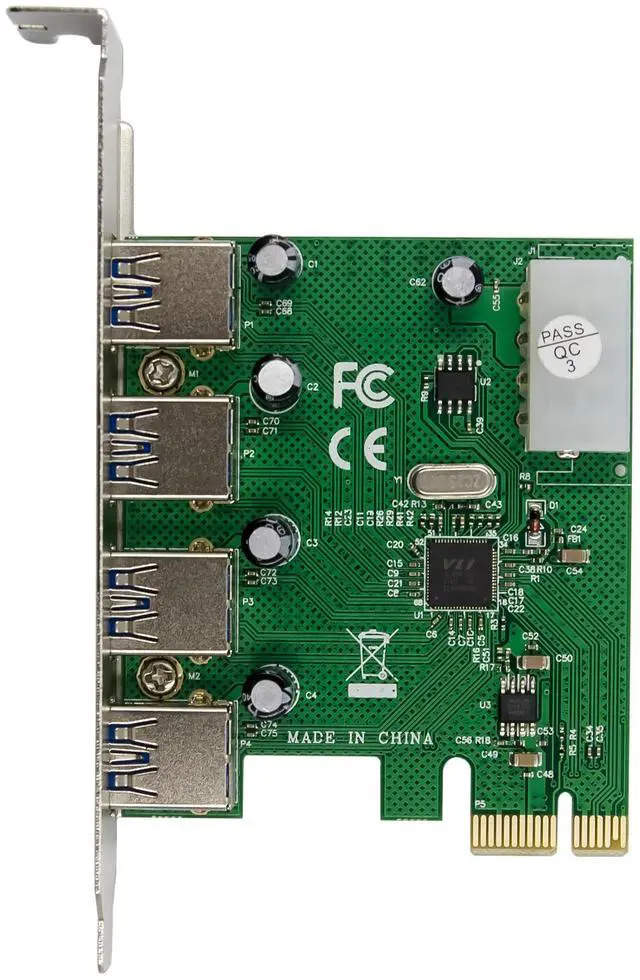

Hardware Description

Hardware installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computers cover.

3. Remove the slot bracket from an available PCIe X1 slot.

4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.

5. Replace the slot brackets holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Install Drivers

Windows Operating Systems

For Windows® XP/Vista/Win7/Win8/Win8.1/Win10(32/64 bit)

1. Please insert the CD driver bound with PCIe USB 3.0 4-Port Card into your CD-ROM Drive.

2. At the Windows desktop, click Start, Run.

3.TypeUSB3.0 VL805-806\ VIA_XHCI_Driver_V4.40D_AP \ VIA_XHCI_Driver _V4.40D_AP.exe, click OK.

4. Follow the on-screen instructions to complete the installation.

To Verify Driver Installation

Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. You should see a VIA USB 3.0 Root Hub and a VIA USB eXtensible Host Controller under the Universal Serial Bus controllers item.

Support

More information and settings please refer to the User Guides or you can contact us.
