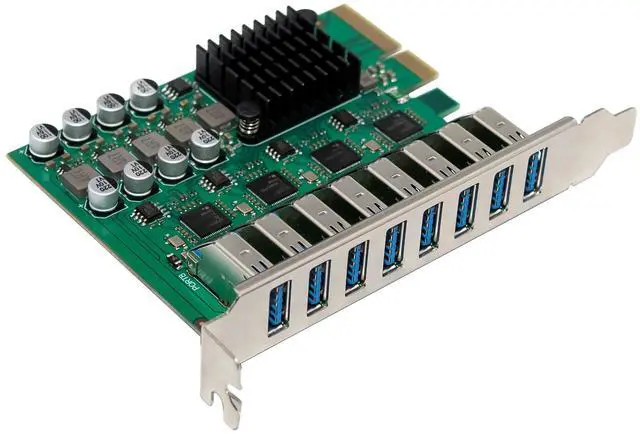

JVFYI PCIe X4 NEC720201 4CH 8-USB3.0 Expansion Card

Fully compliant with PCI Express Base Specification Revision 2.0

2-lane (x2) PCI Express throughput rates up to 10Gbps

compliant with Intels extensible Host controller interface (xHCI) Specification 1.0

supports PCI Bus Power Management Interface Specification Revision1.2

Compliant with Universal Serial Bus 3.0 specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 4-CH 8-USB3.0 ports for all speeds

Each USB3.0 port transmitting speeds up to 5Gbps

Each usb3.0 port with max 5V/900MA power supply.

Supports USB Attached SCSI Protocol(UASP) mode

No external power supply required

Hot-swapping feature allows you to connect/disconnect devices without powering down the system

Support Windows® XP/Vista/7/8/8.1/10/11(32/64 bit), Linux

Chipsets: D720201 & ASM2806

Package content

1 x PCIe x4 NEC720201 4CH 8-Ports USB3.0 Expansion Card

1 x Users Manual

1 x CD

Accessories

System Requirements

Windows® XP/Vista/7/8/8.1/10/11(32/64 bit), Linux

One available PCI-Express x4/x8/x16 slot

Hardware Description

Hardware installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computers cover.

3. Remove the slot bracket from an available PCIe X1 slot.

4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.

*The PCI Express USB3.0 Card must be connected the SATA power cable to SATA power jack

5. Replace the slot brackets holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Install Drivers

Windows Operating Systems

For Windows® XP/Vista/Win7/Win8/Win8.1 (32/64 bit)

1. Please insert the CD driver bound with PCIe USB 3.0 7-Ports Card into your CD-ROM Drive.

2. At the Windows desktop, click Start, Run.

3.TypeUSB3.0 VL805-806\ VIA_XHCI_Driver_V4.40D_AP \ VIA_XHCI_Driver _V4.40D_AP.exe, click OK.

4. Follow the on-screen instructions to complete the installation.

For Windows® 10/11 (32/64 bit)

Using windows box driver to complete installation, plug and play.

To Verify Driver Installation(winXP/win7/Win8.Win8.1)

Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. You should see a VIA USB 3.0 Root Hub and a VIA USB eXtensible Host Controller under the Universal Serial Bus controllers item.

Support

More information and settings please refer to the User Guides or you can contact us.
