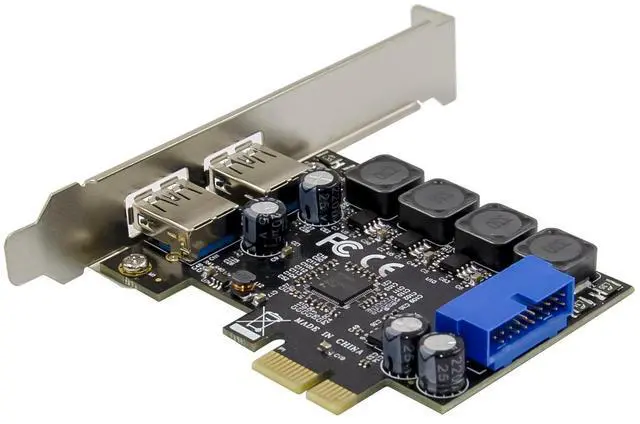

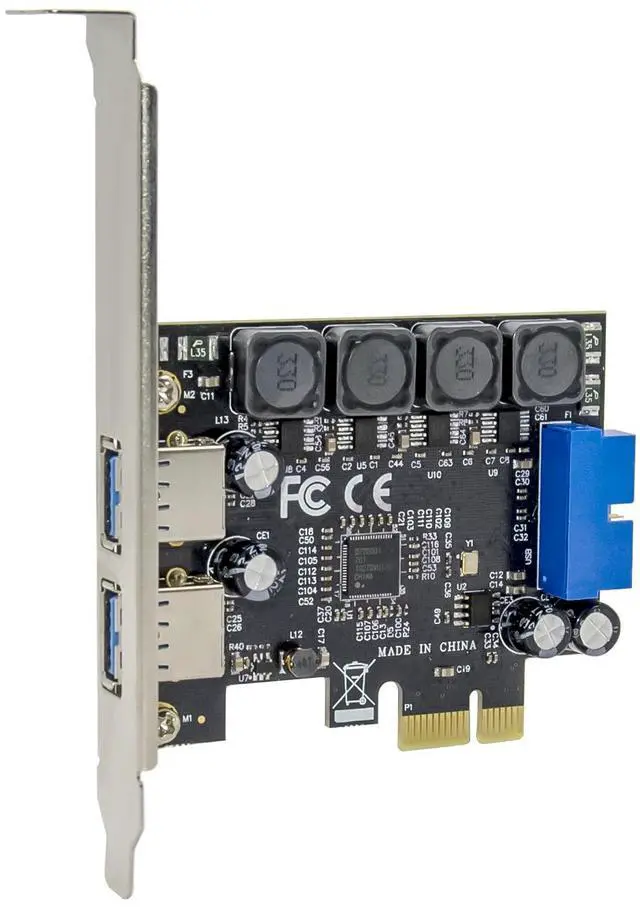

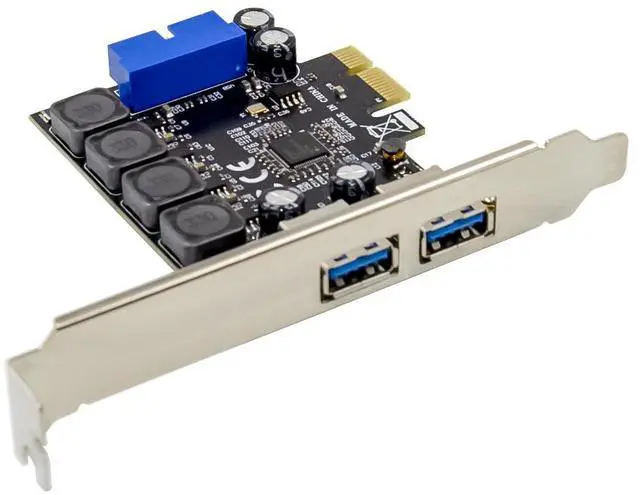

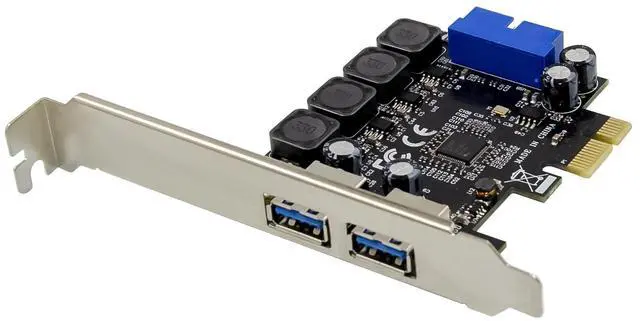

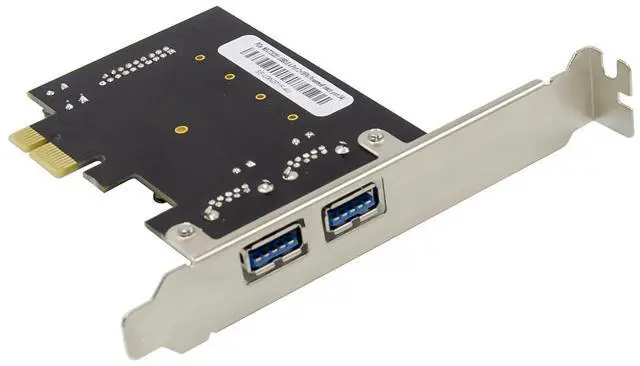

JVFYI PCIe USB3.0 2-Port&19Pin Card(Enhanced)

Compliant with PCI Express base specification 2.0 backward with PCI Express 1.0

Compliant to Universal Serial Bus 3.0 Specification Revision 1.0

Compliant to Universal Serial Bus 2.0 Specifications

Compliant to eXtensible Host Controller Interface Specification Revision 1.0

Support 2x external USB3.0 Type AF port and 1x 19Pin composite port

Support Legacy USB Function, Four Down-stream ports Support Super-Speed (5Gbps)High-Speed(480Mbps),Full-Speed(12Mbps) and Low-Speed (1.5Mbps)

USB Attached SCSI Protocol(UASP)mode

Max. 5V/3000mA power output to each USB 3.0 Port

No external power supply required

Fully plug ,play and hot plug compatible

Chipset: D720201

Package content

1 x PCIe USB3.0 2-Port&19Pin Card

1 x Users Manual

1 x Low profile bracket

1 x CD

Accessories

System Requirements

Linux, Win7/Win8/Win8.1/Win10 32bit or 64 bit

One available PCI-Express x1/x4/x8/x16 slot

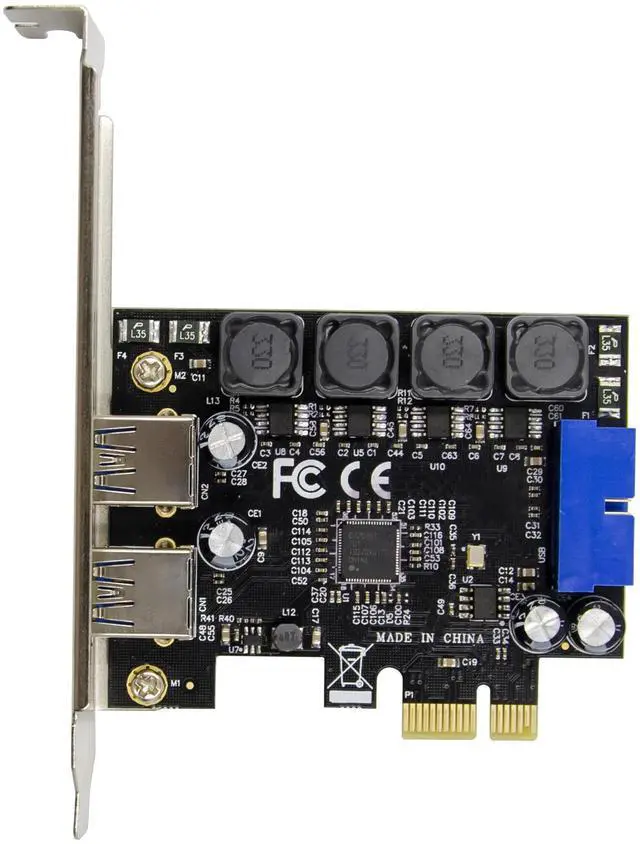

Hardware Description

. USB3.0 AF

. USB3.0 Composite port

Hardware installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computers cover.

3. Remove the slot bracket from an available PCIe X1 slot.

4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.( If your computer case has Front USB3.0 Port cable ,you can connect it to the USB3.0 19Pin composite port)

5. Replace the slot brackets holding screw to secure the card.

6. Replace the computer cover and reconnect the power cord.

Install Drivers

Windows Operating Systems

For Windows® XP/Vista/Win7/Win8/Win8.1/Win10(32/64 bit)

1. Please insert the CD driver bound with PCIe USB 3.0 2-Port&19Pin Card into your CD-ROM Drive.

2. At the Windows desktop, click Start, Run.

3.TypeUSB3.0 NEC720201-720202\ EXE \ Setup.exe, click OK.

4. Follow the on-screen instructions to complete the installation.

To Verify Driver Installation

Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. You should see a Renesas USB 3.0 Root Hub and a Renesas USB eXtensible Host Controller under the Universal Serial Bus controllers item.

Support

More information and settings please refer to the User Guides or you can contact us.
