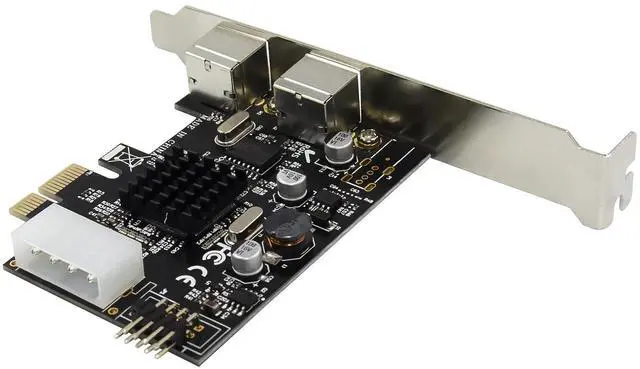

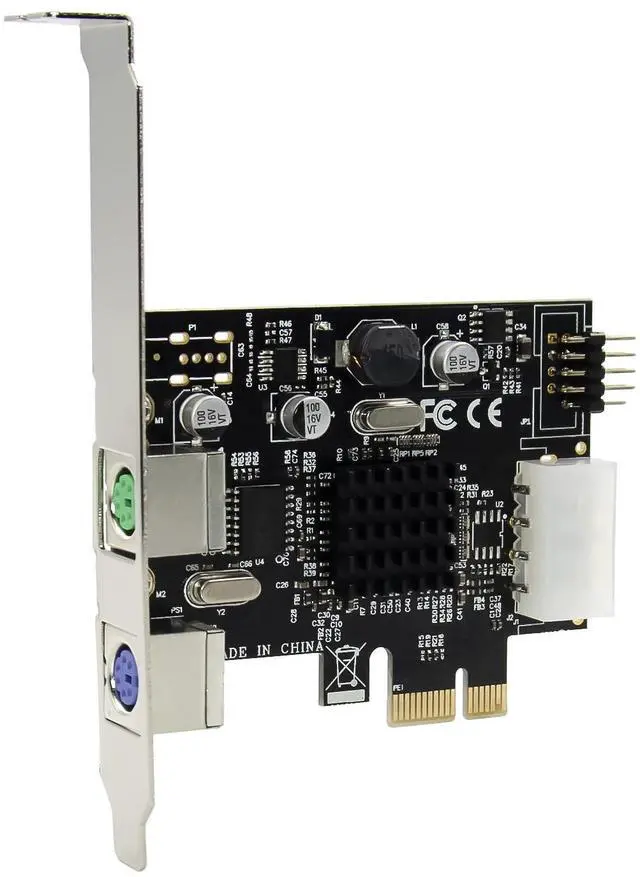

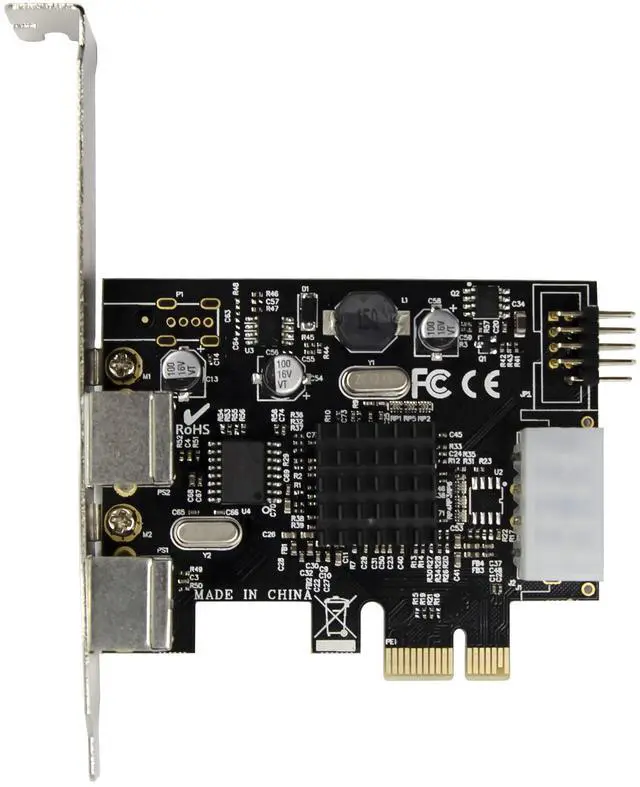

JVFYI PCIe MCS9990 PS/2&USB2.0 Expansion card

Single-lane(x1) PCI Express endpoint controller with integrated PHY

Compliant with PCI Express base specification revision1.1

Compliant with PCI Express Card specification

Conforms to USB HID specification,version1.1

Supports multiple DMA transactions

Support Message TLP generation

Supports PCIe Power Management with ASPM support

Two USB2.0 host ports with on-chip transceivers can handle high-speed(480Mbps),Full-speed(12Mbps) and Low-speed(1.5Mbps)transactions

Four dedicated Enhanced Host controller interface (ECHI)controllers

Four dedicated Companion Open Host controller interface(OHCI)controllers

Compatible with Bulk, Interrupt and isochronous type USB devices.

Supports USB power Management

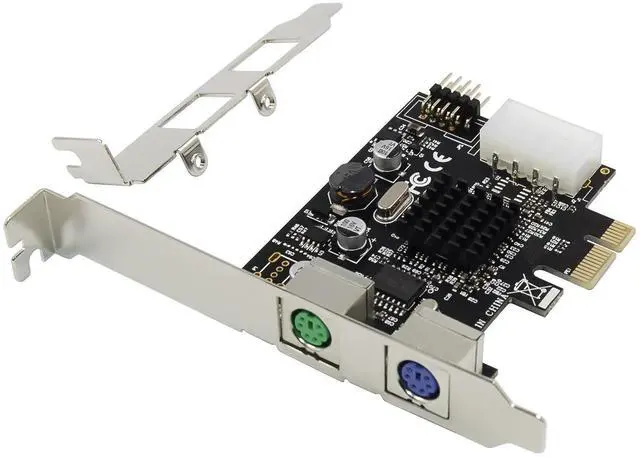

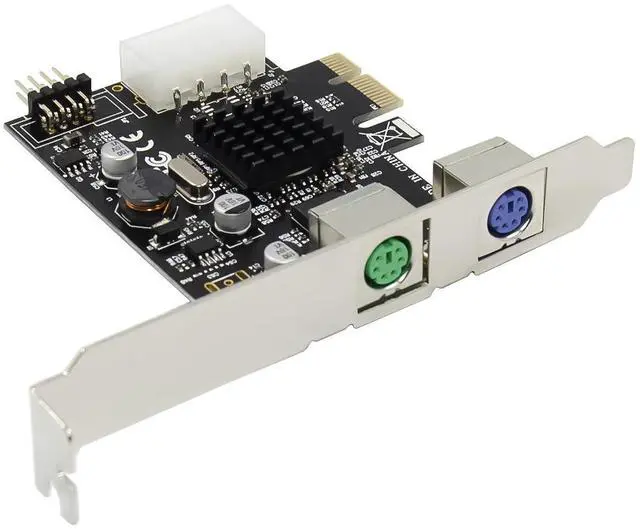

Support 2x PS/2 ports and 2xUSB2.0 Ports

Each USB2.0 Port support power current max 5V/500mA

Standard PS/2 Keyboard with Multimedia function

Standard PS/2 3D/3Keys mouse

Mice or keyboard can be used in either port

Chipset:MCS9990+CSC0101A

Package content

1 x PCIe MCS9990 PS/2&USB2.0 Expansion card

1 x Users Manual

1 x CD

1 x Low profile bracket

Accessories

System Requirements

Operation Systems: Linux, Microsoft Windows2000.XP/Vista/Win7/Win8/Win10 32 or 64bit

An available PCI Express x1/x4/x8/x16 slot

Hardware Description

Hardware installation

1.Turn off the computer and unplug the power cord.

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter.

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis.

4.Plug your computers front USB cable into the built-in USB port.

5.Replace the computer cover ,then plug in the power cord.

6.Power on the computer.

Install Drivers

Windows Operating Systems

no need additional driver, plug and play.

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
