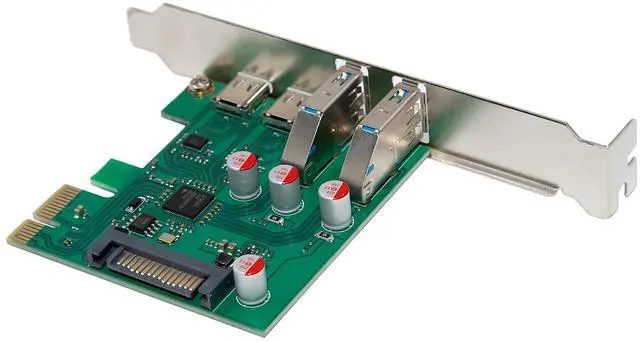

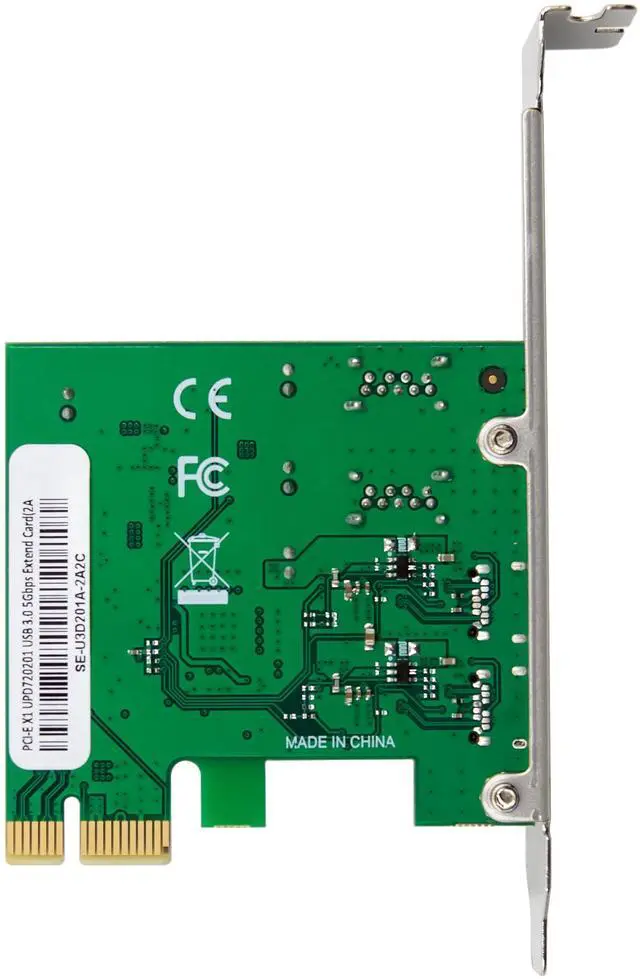

JVFYI PCIe x1 USB3.0 2A2C 5Gbps Expansion Card
- The PCIe X1 NEC720201 USB3.0 2A2C 5Gbps Expansion Card is Renesas third generation Universal Serial Bus 3.0 Host controller D720201. which comply with Universal Serial Bus 3.0 Specification ,and Intels eXtensible Host Controller interface(xHCI). It supports USB3.0 2A2C SuperSpeed ports, and all ports support up to 5Gbps transmission speeds, it is complete used for personal Computer, MINIPC, Embedded Systems. Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Complies with PCI Express Base Specification Revision 2.0
Single-lane (x1) PCI Express throughput rates up to 5Gbps
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

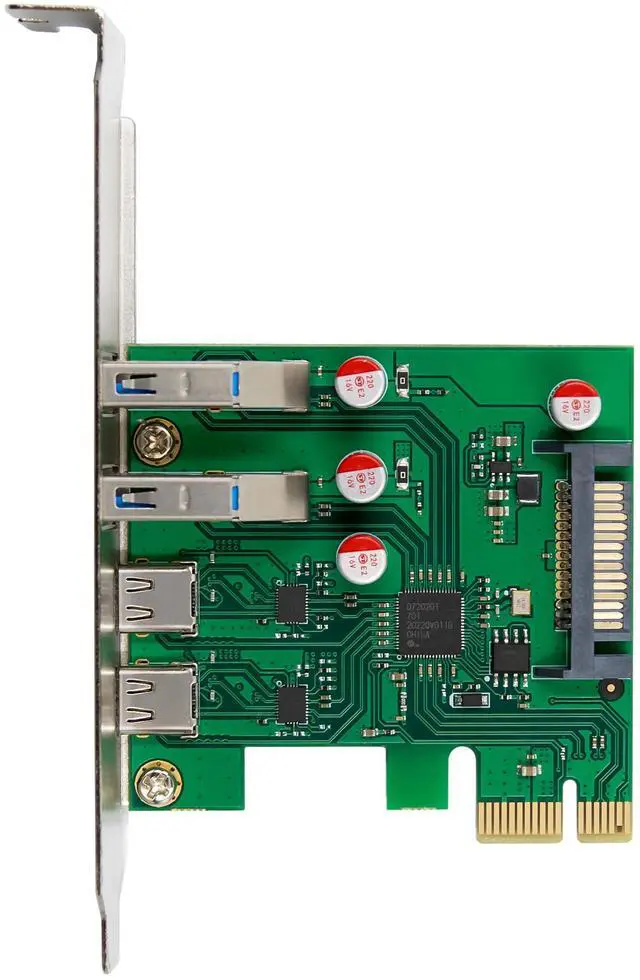

Chipset: NEC D720201
USB Attached SCSI Protocol(UASP)mode
Max. 5V/3000mA power output to each USB 3.0 Port
Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
Built-in SATA 15-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Support Windows® Win7/ Win8/Win8.1 /win10, 32 or 64bit, Linux base OS
Interface
PCI-Express X1
Connectors:

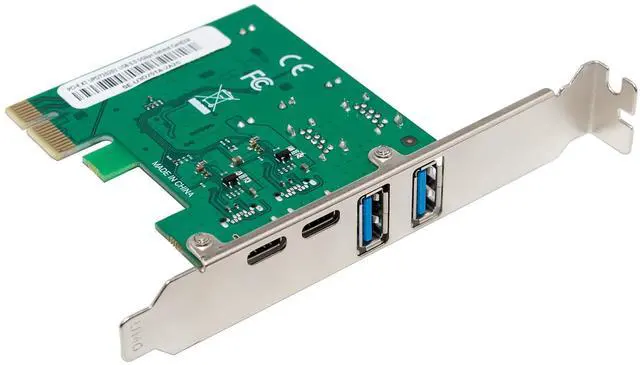

2 x USB3.0 Type AF Connectors, 2 x USB3.0 Type C Connectors
System Requirements
Windows® Win7/ Win8/Win8.1 /win10, 32 or 64bit, Linux base OS
Available PCI-Express x1/x4/x8/x16 slot
Package Contents
1 x PCIe x1 NEC720201 USB3.0 2A2C Expansion Card
1 x Users Manual

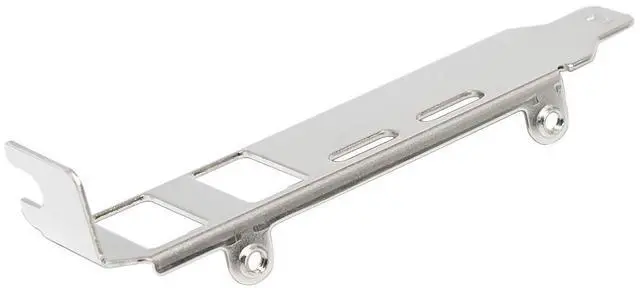

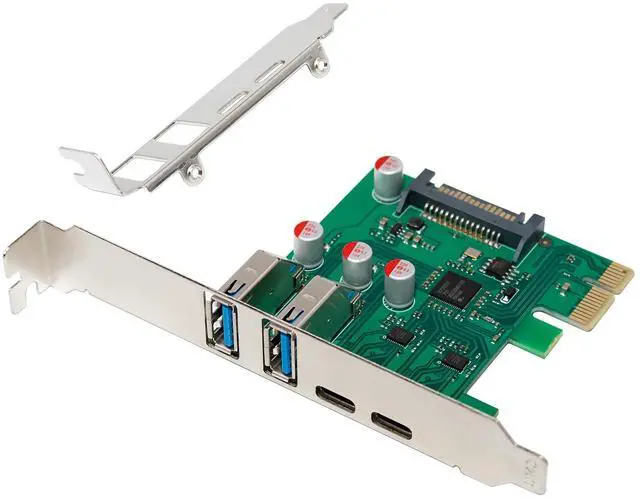

1 x Low profile bracket
1 x CD
Accessories
Hardware Installation
Step 1: Turn off your PC, unplug the power Card and open the case of PC.
Step 2: Remove the mini PCIe Slot cover as below.
Step 3: Plug USB3.0 PCIe card in mini PCIe Slot and install the bracket screw that secures the card to the computer chassis.
Step4: Replace the computer chassis cover ,reconnect the Computer Power Card and turn on your PC.
Driver Installation
For Windows XP, VISTA, 7 and Server 2008 Release 2
1. Please insert the CD driver bound with USB 3.0 4-Port PCI Express Card into your CD-ROM Drive.
2. At the Windows desktop, click Start, Run.
3. TypeUSB3.0 NEC720201-720202\EXE \Setup.exe, click OK.
4. Follow the on-screen instructions to complete the installation.
To Verify Driver Installation
Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. You should see a NEC USB 3.0 Root Hub and a Renesas Electronics USB3.0 Host Controller under the Universal Serial Bus controllers item.
