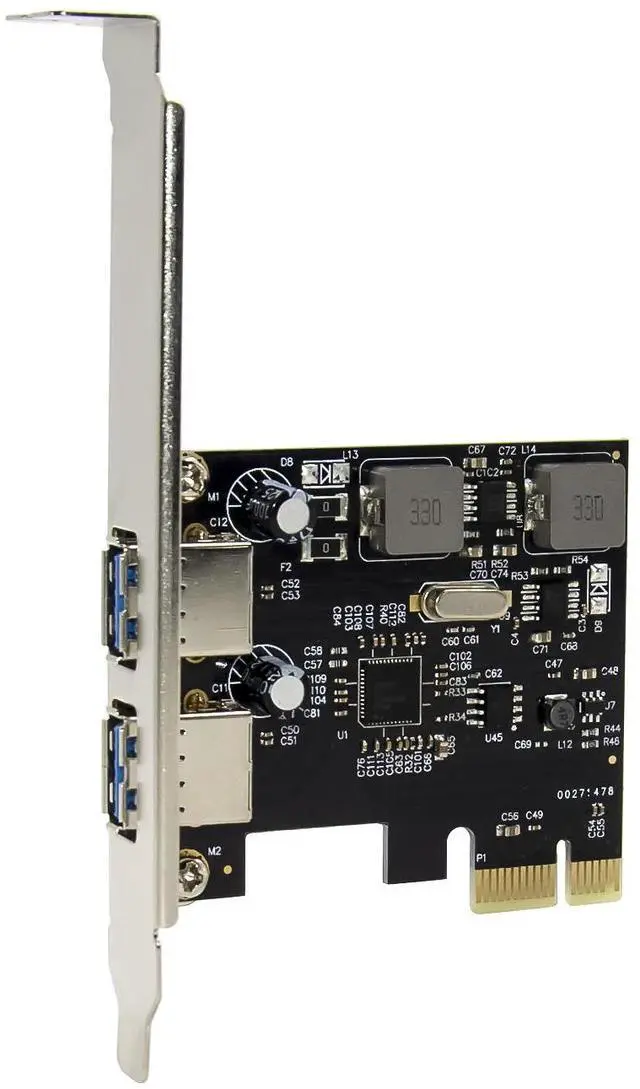

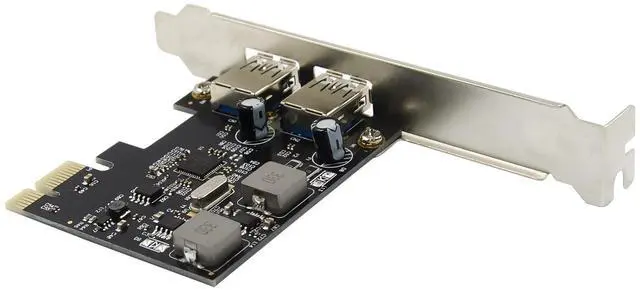

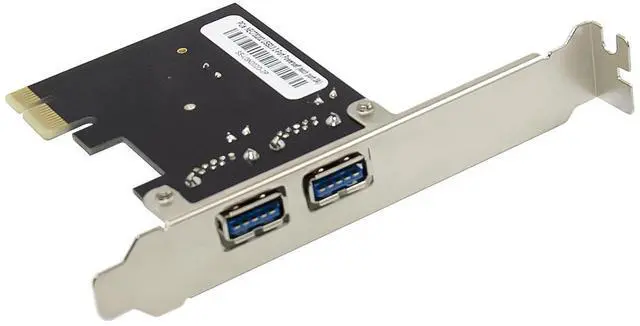

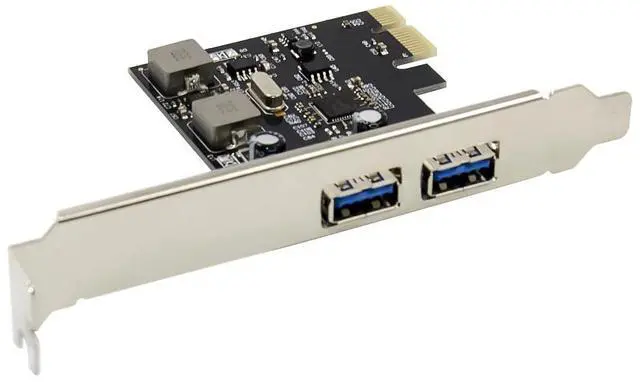

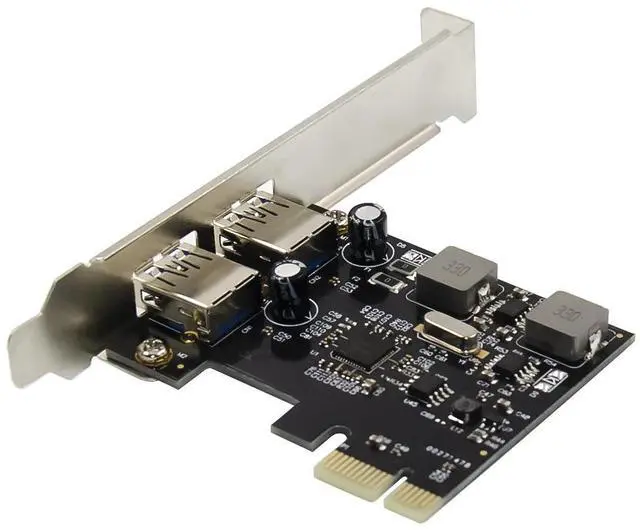

JVFYI PCIe x1 D720202 2-Ports USB 3.0 Card Self-Power
Limited time offer, ends 01/09 By BRIGHTOR
- Fully compliant with PCI Express Base Specification Revision 2.0
- Single-lane (x1) PCI Express throughput rates up to 5 Gbps
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0
- Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
- Supports 2 downstream ports for all speeds
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Each USB port support Power supply 5V/3A output by itself
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Support Windows® XP/Vista/7 (32/64 bit),linux
System Requirements
Windows® XP/Vista/7/8/8.1/10/11 (32/64 bit)
One available PCI Express slot (Recommend PCI Express 2.0)
Package Contents
1 x USB 3.0 2-Port PCI Express Card
1 x Driver CD
1 x User Manual
Hardware Installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computer?s cover.
3. Remove the slot bracket from an available PCIe slot.
4. To install the card, carefully align the card?s bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot bracket?s holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Driver Installation
For Windows® XP/Vista/Win7 (32/64 bit)
1. Please insert the CD driver bound with USB 3.0 2-Port PCI Express Card into your CD-ROM Drive.
2. At the Windows desktop, click Start, Run.
3. Type D:\ USB3.0 NEC D720201-202\EXE \Setup.exe, click OK. (Change D: to match your CD-ROM drive letter)
4. Follow the on-screen instructions to complete the installation.
To Verify Driver Installation
Click on the ?Device Manager? tab in System Properties, which you access from the Windows Control Panel. You should see a ?Renesas Electronics USB 3.0 Host Controller? and a ?Renesas Electronics USB 3.0 Root Hub? under the ?Universal Serial Bus controllers? item.
