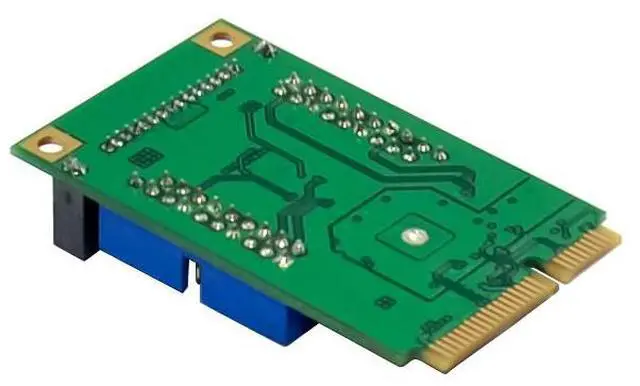

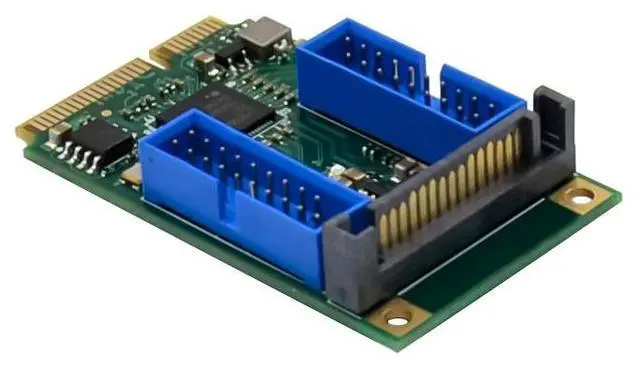

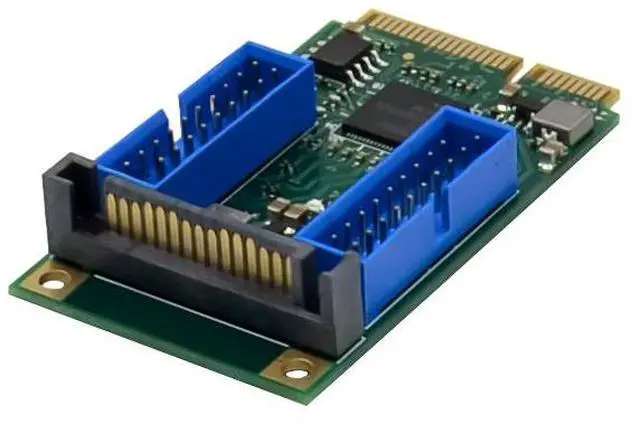

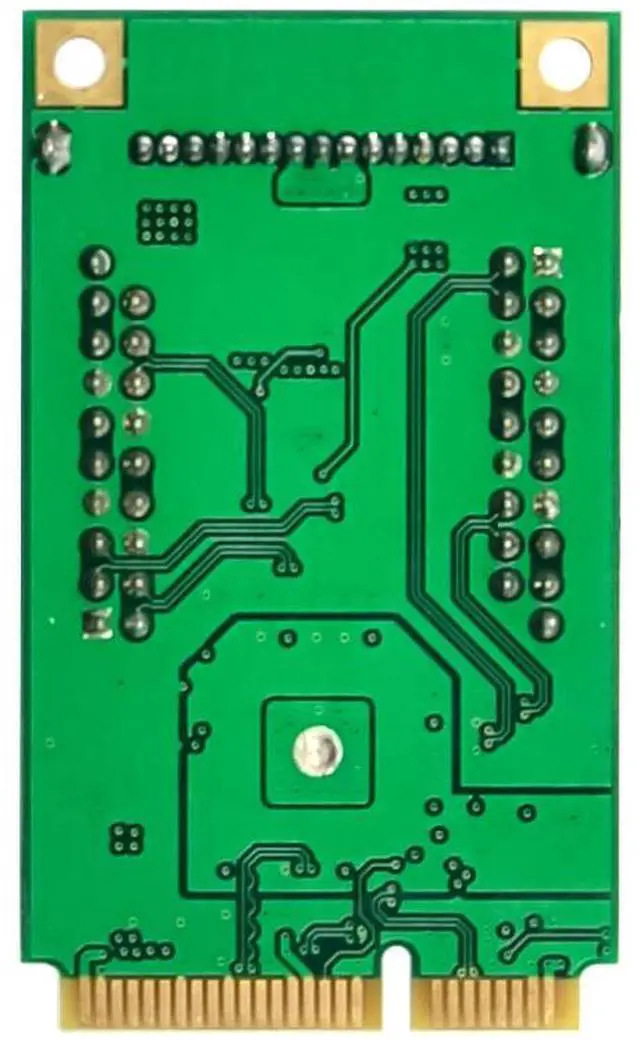

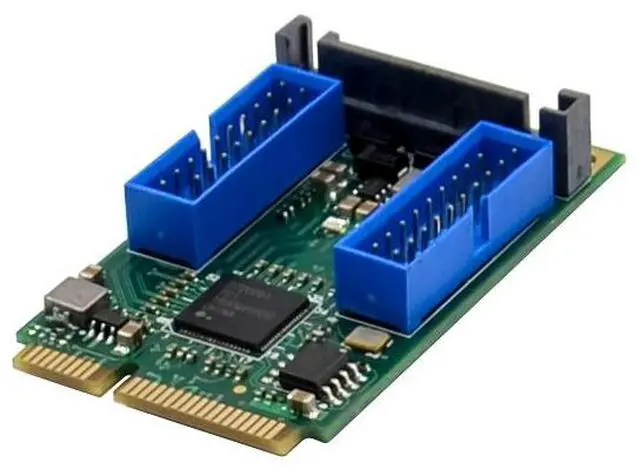

JVFYI MiniPCIE NEC720201 4-Port 5Gbps USB3.0 Card

Compatible with PCI-E MINI Card Electromechanical specification revision1.2

Compatible with Full size MINI card type form factor

Complies with PCI Express Base Specification Revision 2.0

Single-lane (x1) PCI Express throughput rates up to 5Gbps

Compliant with Universal Serial Bus 3.0 specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 2 downstream ports for all speeds

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system

Support Windows® Win7/ Win8/Win8.1 /win10, 32 or 64bit, Linux base OS,

Package content

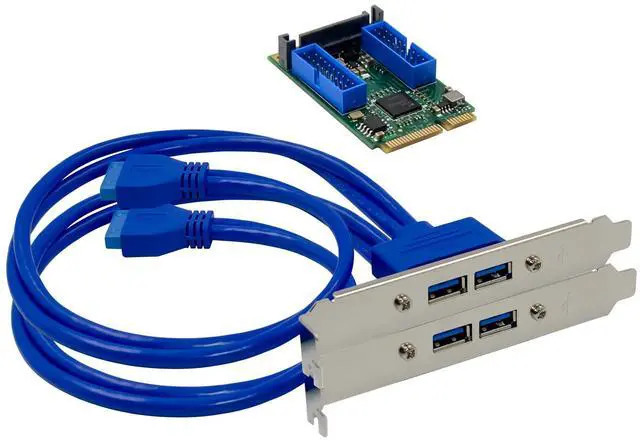

1 x MiniPCIE NEC720201 4-Port USB3.0 card

1 x Users Manual

1 x 19PIN USB3.0 Convertor cable

1 x 4Pin power cable

System Requirements

Linux base OS, Win7/ Win8/Win8.1 /win10, 32 or 64bit

Available MiniPCIE slot

Hardware installation

1.Turn off the power to your computer

2.Unplug the power cord and remove your computers cover

3.Locate to an empty MINIPCIE slot on the motherboard.

4.To install the board, carefully align the cards MINIPCIE connector with the selected MINIPCIE slot on the motherboard, installed of fixing screws

5.Attach your internal device to the MINIPCIE SATAIII controller card

6.Replace the Slot brackets holding screw to secure the card

7.Replace the computer cover and reconnect the power cord

Install Drivers

Windows Operating Systems

8.For Windows® XP/Vista/Win7 (32/64 bit)

9.1. Please insert the CD driver bound with USB 3.0 2-Port PCI Express Card into your CD-ROM Drive.

10.2. At the Windows desktop, click Start, Run.

11.3. Type D:\ USB3.0 NEC D720201-202\EXE \Setup.exe, click OK. (Change D: to match your CD-ROM drive letter)

12.4. Follow the on-screen instructions to complete the installation.

Support

More information and settings, please refer to the User Guides or you can contact us.
