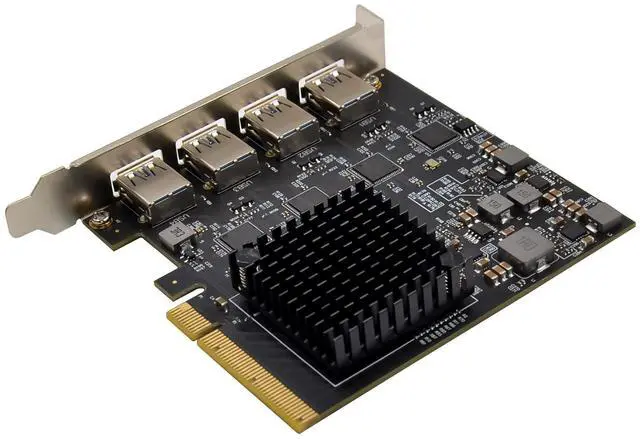

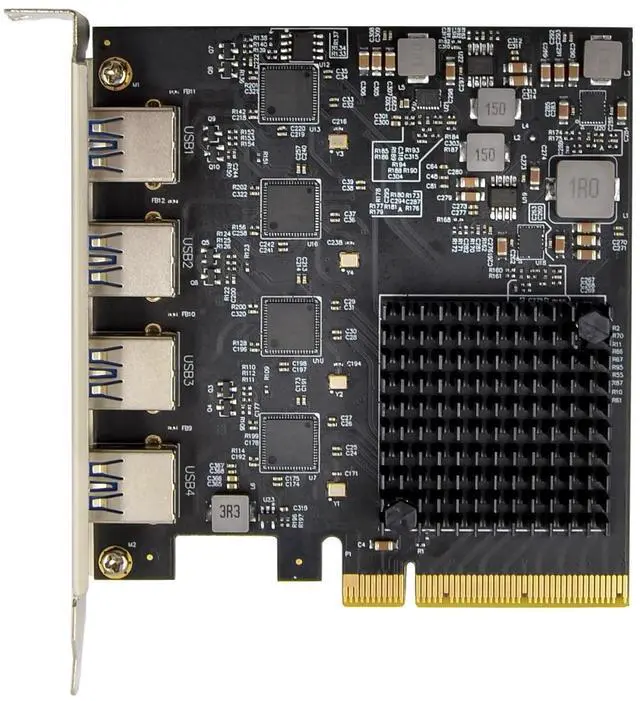

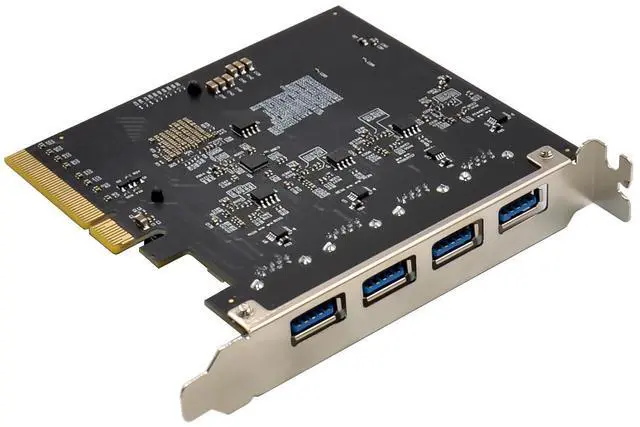

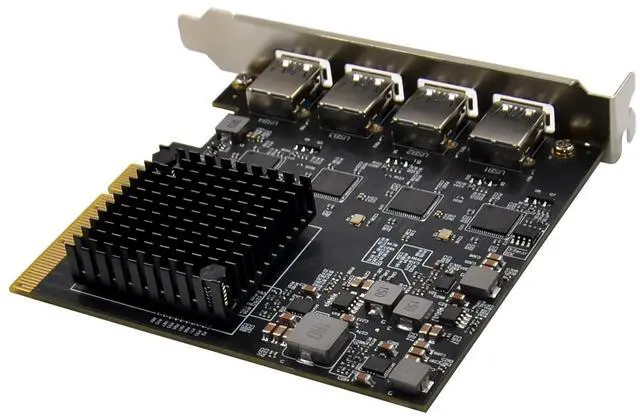

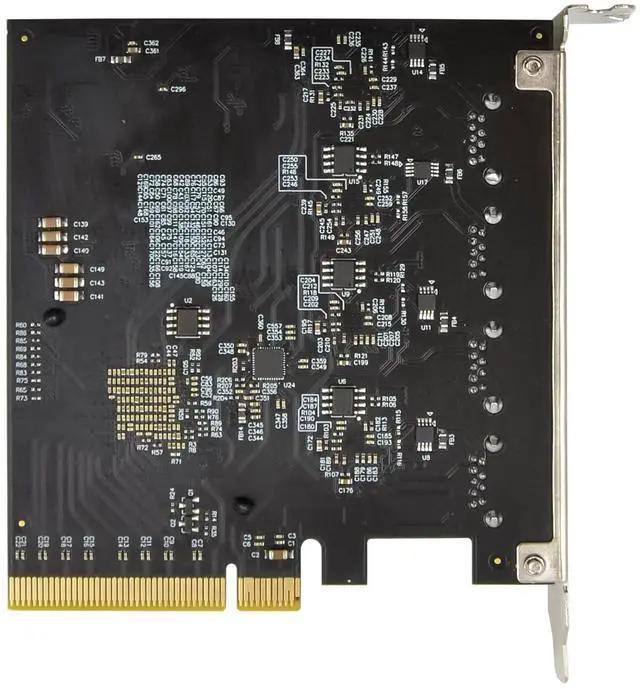

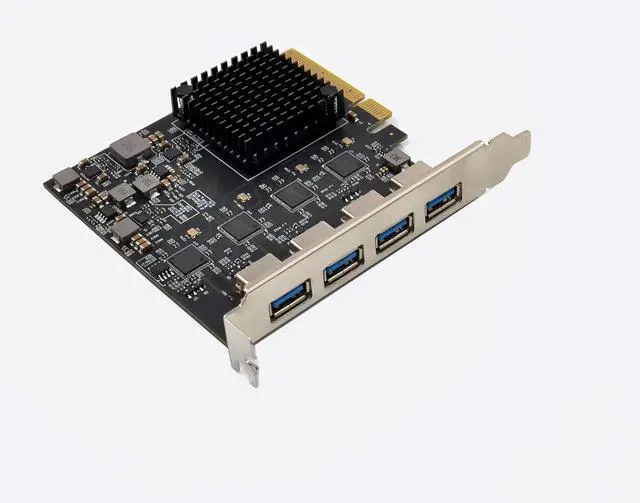

JVFYI PCIe X8 ASM3142 4CH 10Gbps USB3.1-A Card
Limited time offer, ends 01/09 By BRIGHTOR
- The PCIe ASM3142 4CH 10Gbps USB3.1-A Card is the next generation Universal Series Bus xHCI host controller, bridging PCI Express to USB3.1 Gen-II , compliant with USB3.1 Specification Revision1.0 and Intel eXtensible Host Controller Interface Specification revision1.1,it supports the new feature of USB3.1 Gen2, named multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB3.1 Gen2 bus. The USB3.1 Card application of Desktop PC, Workstations, Servers, etc..
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Support PCI Express Gen-III x8
Compliant with PCI Express Base3.0 Specification
Compliant with PCI Express card Electromechanical 2.0 specification
Compliant with Universal Serial Bus 3.1 Specification Revision1.0
Compliant with eXtensible Host Controller Interface specification Revision 1.1
Compliant with USB Attached SCSI Protocol Revision 1.0
PCI Express interface: X8
Support high bandwidth performance with low latency
Support PCI Express Link power management
Support four USB3.1 Type A Port
Each port transmission speeds up to USB3.1 Gen-II 10Gbps(not share)
Maximum current 3A each port
Backward compatible with Legacy USB function and device
Support USB SuperSpeed+(10Gbps),SuperSpeed(5Gbps),HighSpeed(480Mbps) , FullSpeed(12Mbps),and LowSpeed(1.5Mbps) transmission
Support proprietary driver for Windows7,and in box driver for Windows8,Window8.1, Server2012 and Windows 10
Support various Linux kernels
Chipset: ASM3142+PEX8747
Package content
1 x PCIe ASM3142 4-Ports USB3.1 10Gbps Card(pro)
1 x Users Manual
1 x CD
Accessories
System Requirements
Various Linux kernel2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required
Mac 10.8 to 10.10 , Mac12.12 and later
Windows Operation Systems: Win7/Win8/Win8.1/Server2012/Win10 32bit or 64 bit
An available PCI-Express x8/x16 slot
Hardware installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your computers cover.
3. Remove the slot bracket from an available PCIe x4/x8/X16 slot.
4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
5. Replace the slot brackets holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Install Drivers
Windows Operating Systems
For Windows 7 32 or 64bit
Please insert the CD driver bound with PCIe USB3.1 Card into your CD-ROM Drive.
At the Windows desktop, click Computer Double click CD-ROM Drive to Brower drivers files:
Type: D: \ USB3.1 ASM3142 \Setup.exe, click OK. (Change D: to match your CD-ROM drive letter)
Follow the on-screen instruction to complete the installation
For Win8, Win8.1, Win SERVER2012 ,Win10 32 or 64bit
Using in Windows box driver for Win8, Win8.1 and Win10 to complete install the drivers
To Verify Windows® Driver Installation
Click on the Device Manager tab in System Properties, which you access from the Windows Control Panel. If you has installed successfully, you should see ASMedia USB3.1eXtensible Host controllerinstalled under Universal Serial Bus Controllers item.
Support
More information and settings please refer to the User Guides or you can contact us.
