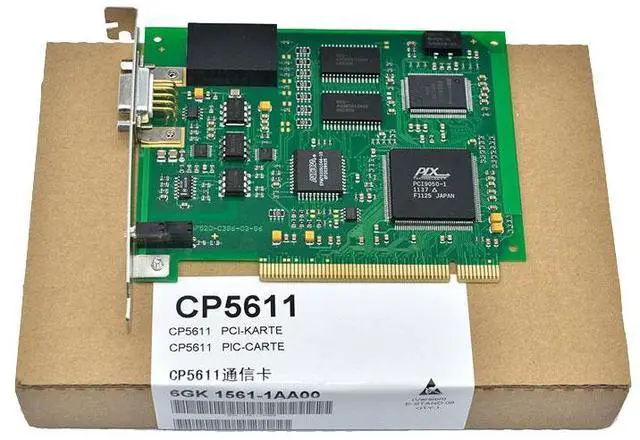

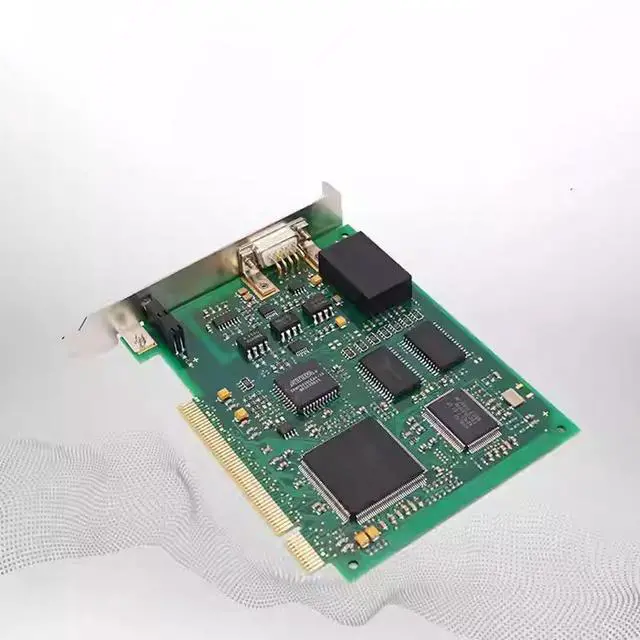

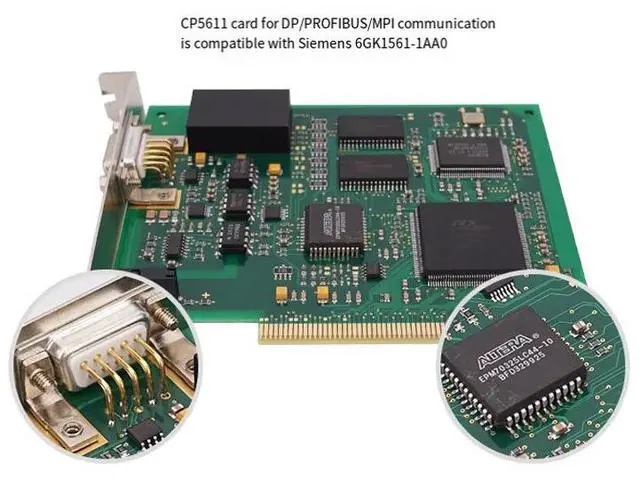

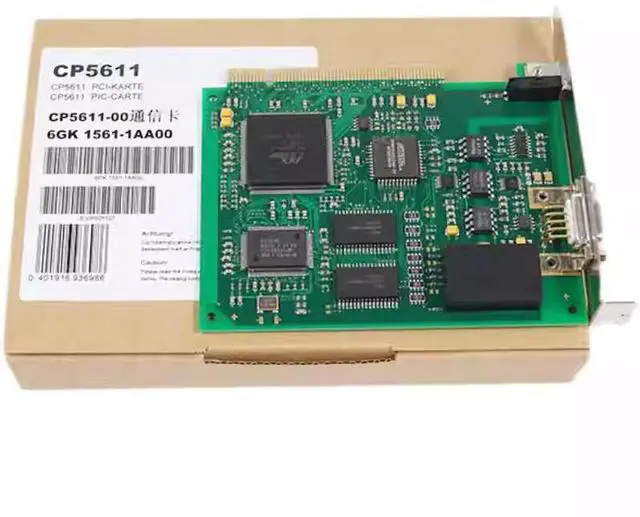

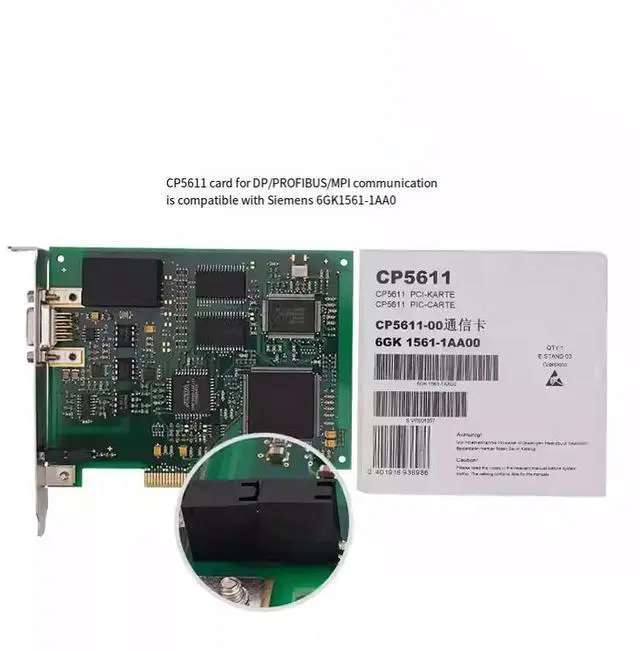

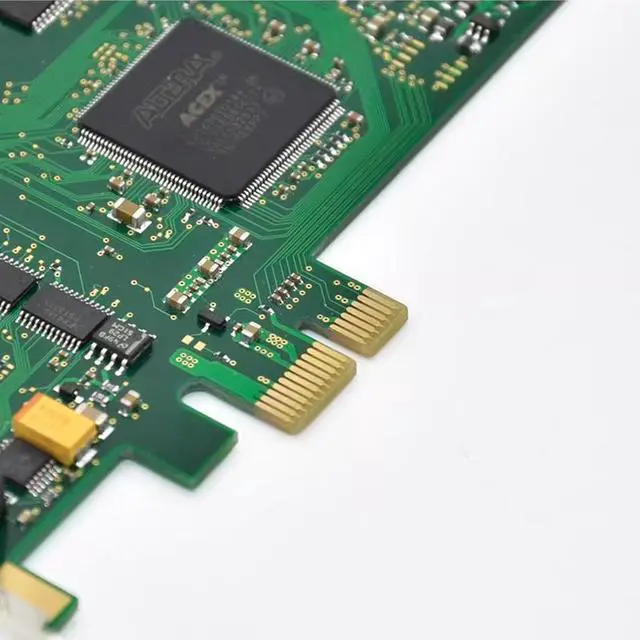

6GK1561-1AA00 Communications Processor CP 5611 PCI Card

This communication card model is the 6GK1561-1AA00 and it supports a spread rate of 9.6Kbps to 12Mbps, with a maximum communication distance that complies with the Profibus standard. Its interface allows it to connect to PROFIBUS/MPI/PPI through networks with an isolation type 9PIN Sub-D port. The isolation voltage is 1000VDC, and the RS485 port has a lightning protection device that can handle a repeatable surge voltage capacity of Ipp=100A (10/700us, 4KV). The card meets ITU-TK20/ 21 and VDE 0433 standards and offers ± 15KV ESD protection. The RS485 port has automatic recovery over-current protection and can handle a 60V voltage-caused continuous current. This card can connect to PG/PC through a PCI 2.1 standard card slot and on +5V DC with a power consumption of 2.0W. The working temperature range is 0 to +70 , and the card has a dimension of 102*130MM and a weight of 100G.

Model:6GK1561-1AA00 Communication Card

Spread rate: 9.6Kbps ~ 12Mbps, the max communication distance conforms to Profibus standard.

Interface: Connect PROFIBUS/MPI/PPI, Isolation type 9PIN Sub-D port

Isolation Voltage:1000VDC

RS485 Port with lightning protection device, repeatable surge Voltage Capacity: Ipp= 100A ( 10/700us, 4KV )

Standard: ITU-TK20/21 VDE 0433 ± 15KV ESD protection

Automatic Recovery Over-current Protection: RS485 port can burden 60V voltage-caused continuous current.

Connect PG/PC: PCI2.1 Standard card slot

Voltage: +5V DC

Power:2.0W

Working Temperature: 0 ~ + 70

Dimension(W*H): 102*130MM
