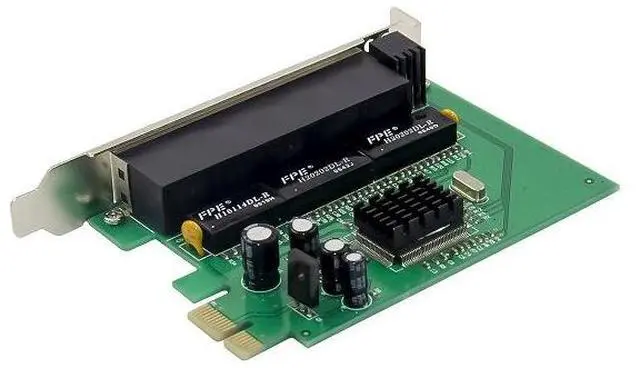

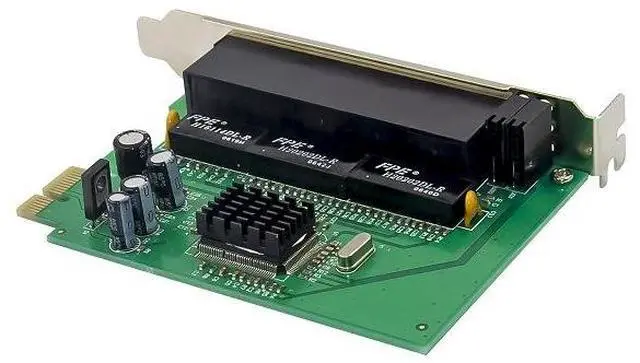

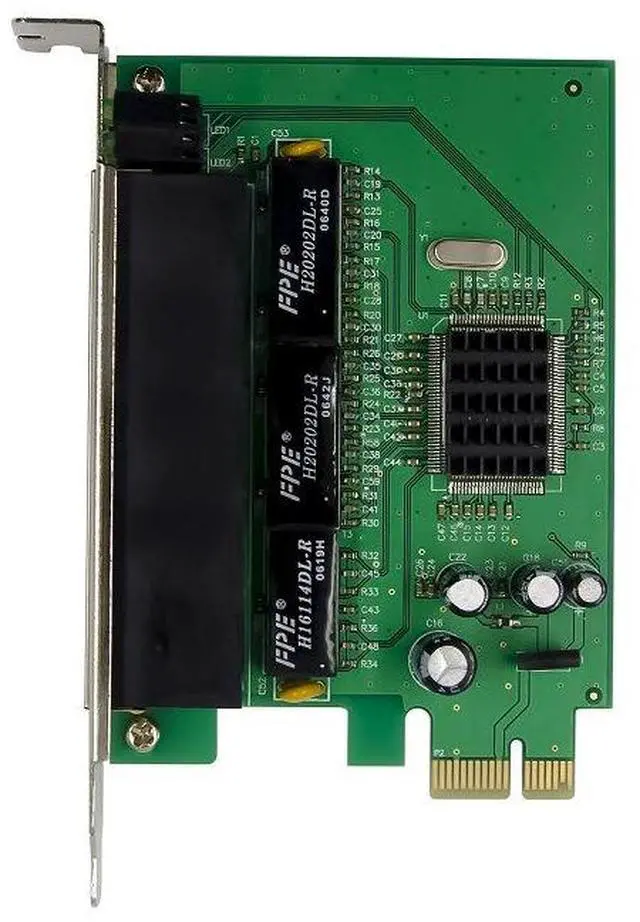

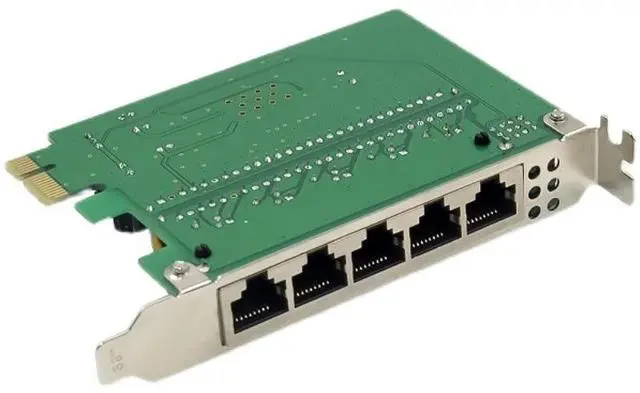

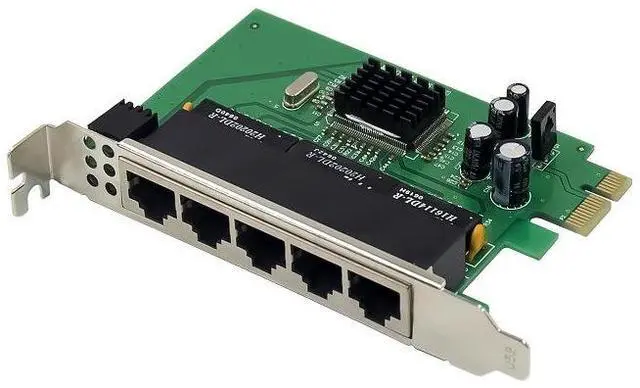

PCIe x1 to 5-Port 10/100 Ethernet Switch Card IC Plus IP175C, 5 x RJ45, Auto MDI-MDIX, VLAN Support, for Industrial & Embedded Systems
Limited time offer, ends 04/19 By StarVelocity Technology
- 5-Port 10/100 Ethernet Switch: Adds five independent 10/100Mbps Fast Ethernet ports via a single PCIe x1 slot, providing a compact switching solution for industrial PCs, embedded systems, and network appliances.
- IC Plus IP175C Integrated Controller: Features the IP175C 6-port switch controller with 5 integrated PHYs, delivering reliable switching performance with built-in MAC address table (2K entries) and store-and-forward architecture.
- Advanced Switching Features: Supports port-based VLAN, tag VLAN, CoS (Class of Service), broadcast storm protection, bandwidth control, and Spanning Tree Protocol (STP) for flexible network management.
- Auto MDI-MDIX & Auto-Negotiation: Each port automatically detects cable type (straight-through or crossover) and negotiates speed (10/100Mbps) and duplex mode for hassle-free installation.
- Broad OS Compatibility: Works with Windows XP/Vista/7/8/10, Windows Server, Linux, and FreeBSDideal for industrial and embedded applications requiring a compact, integrated switch.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Add a five-port Fast Ethernet switch directly to your system with this PCIe x1 to 5-Port 10/100 Ethernet Switch Card. Powered by the IC Plus IP175C integrated switch controller, this compact card provides five independent 10/100Mbps RJ45 ports, making it the ideal solution for industrial PCs, embedded systems, network appliances, and testing environments requiring a built-in switching solution.
Integrated Switch on a Card
Unlike traditional network cards that require external switches, this card integrates the switching functionality directly onto the PCIe card:
- 5 x 10/100Mbps RJ45 ports for device connectivity
- Store-and-forward switching architecture for reliable data transmission
- 2K MAC address table for efficient packet forwarding
- Integrated PHYs with DSP-based design for high noise immunity
