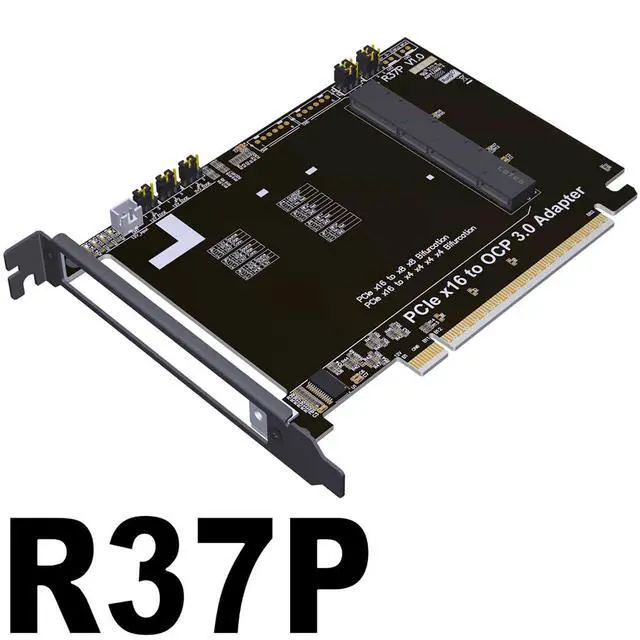

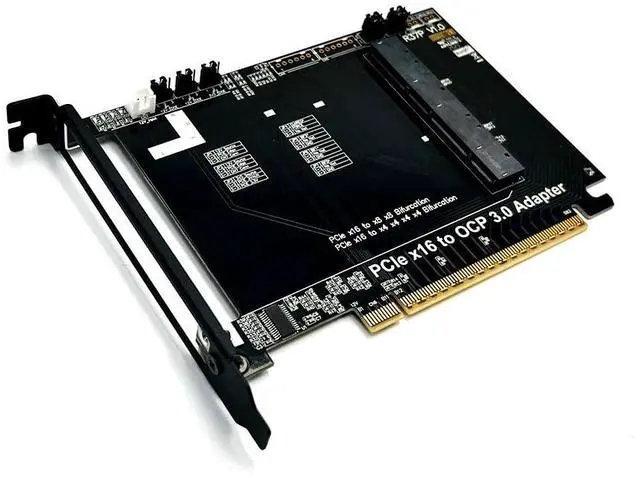

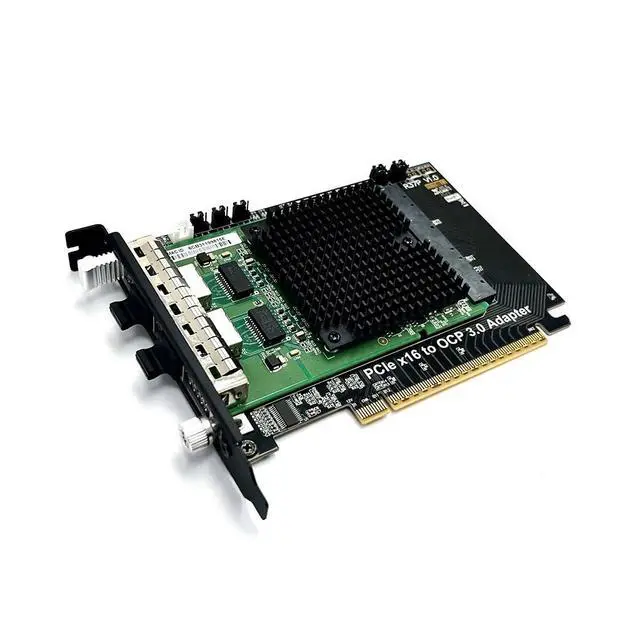

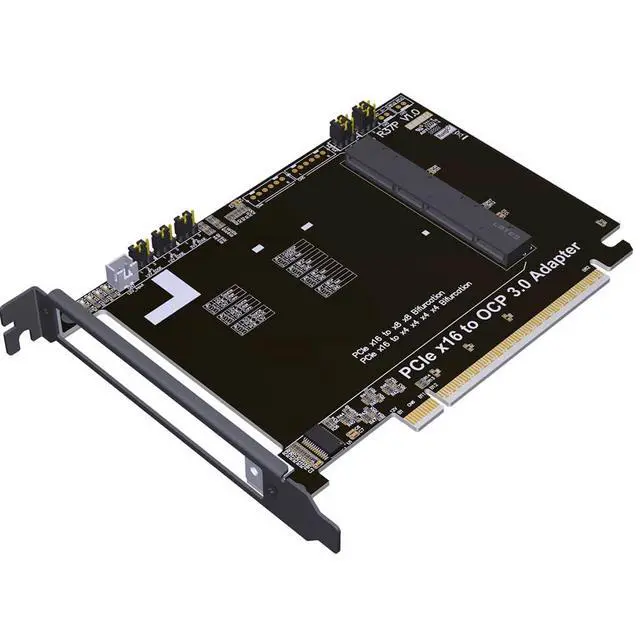

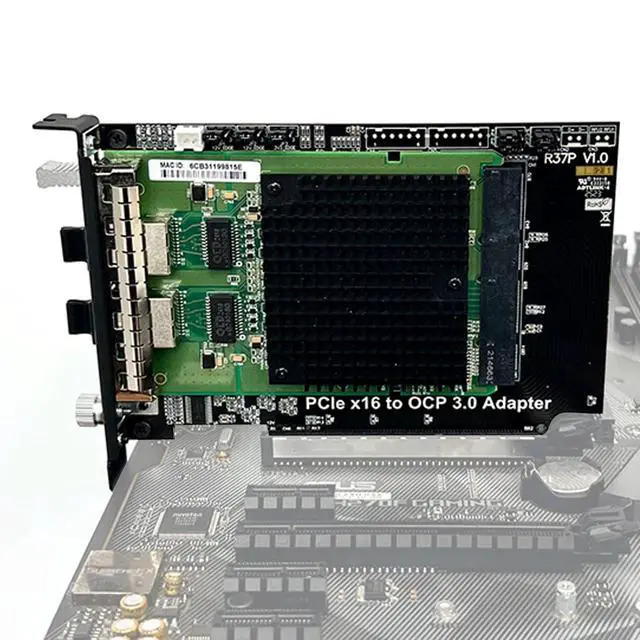

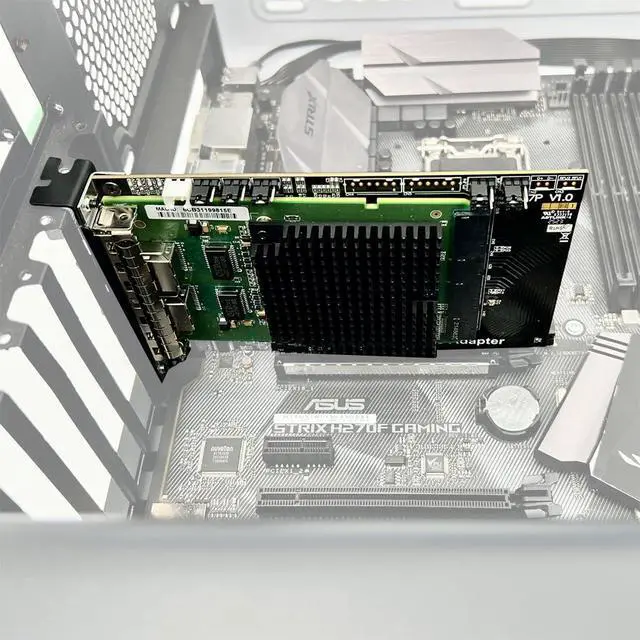

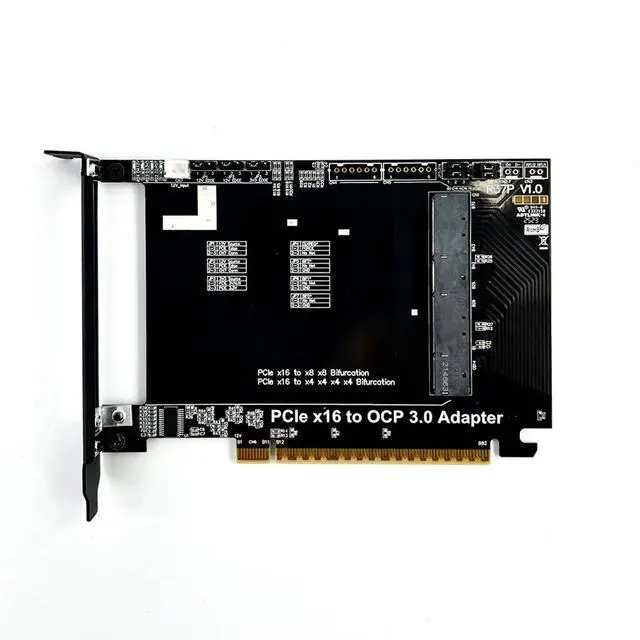

ADT-R37P PCIe 5.0 x16 to Gen-Z 4C+/SFF-TA-1002 Adapter Card High Performance External PCIe x16 Bifurcation Expansion Support OCP NIC 3.0

JMT ADT-R37P PCIe 5.0 x16 to Gen-Z 4C+/SFF-TA-1002 Adapter Card High Performance External PCIe x16 Bifurcation Expansion Support OCP NIC 3.0
Product Description Product Model: R37P
Product Name: PCIe x16 to OCP NIC 3.0 Side-Mount Adapter Card
Speed Bandwidth: PCIe 5.0 x16
Product Dimensions: Length 163.65 mm × Height 121mm × Thickness 21.6 mm
Product Weight: 73.6 g
Colour: Black
Operating Temperature: -40°C to 80°C
Flame Retardant Rating: 94V0
Product advantages:
1. Supports PCIe 5.0 x16, compatible with Gen3/Gen4/gen5
2. Exclusive R37P bracket design, supports OCP network card interface extension to the outside of the chassis
3. Side-mounted connectors for a more rational space structure
4. Optional external power supply design, with the motherboard and external circuitry operating on separate circuits, providing protection for the motherboard circuitry
5. Gold-plated fingers with a gold thickness of 10U, compliant with IPC Class 1 international standards 6. LO TES connectors made of LCP flame-retardant, high-temperature-resistant plastic steel material
7. High-frequency, low-resistance, high-temperature-resistant, anti-oxidant PCB board material, which does not deform, has a yellow crystal semi-transparent colour, and does not turn white or black
Technical FAQ: Does the R37P model support PCIe 5.0? Laboratory testing shows that it can still achieve PCIe 4.0 after daisy-chaining Can the OCP 3.0 network card module be recognised and used to access the Internet? The device manager can recognise the network port, and after connecting the network cable, it can access the Internet normally (the network speed only reaches 450Mbps
