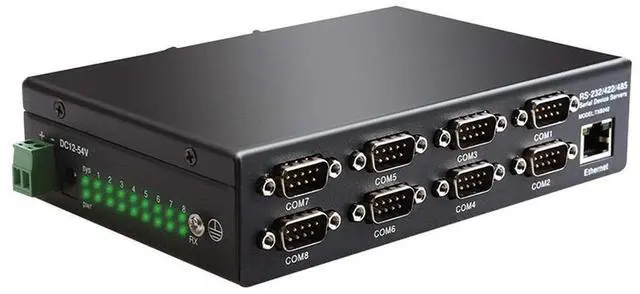

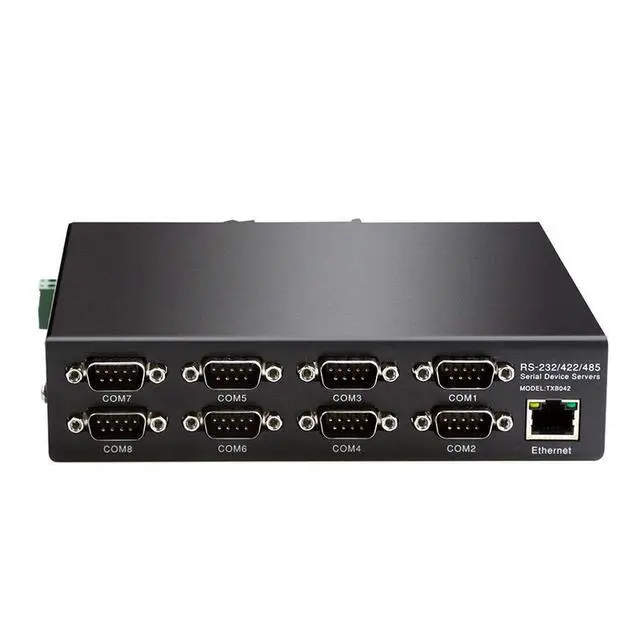

8 Ports RS232 RS485 RS422 to Ethernet TCP/IP Converter Multiple Serial Device Server Switch Modbus Gateway

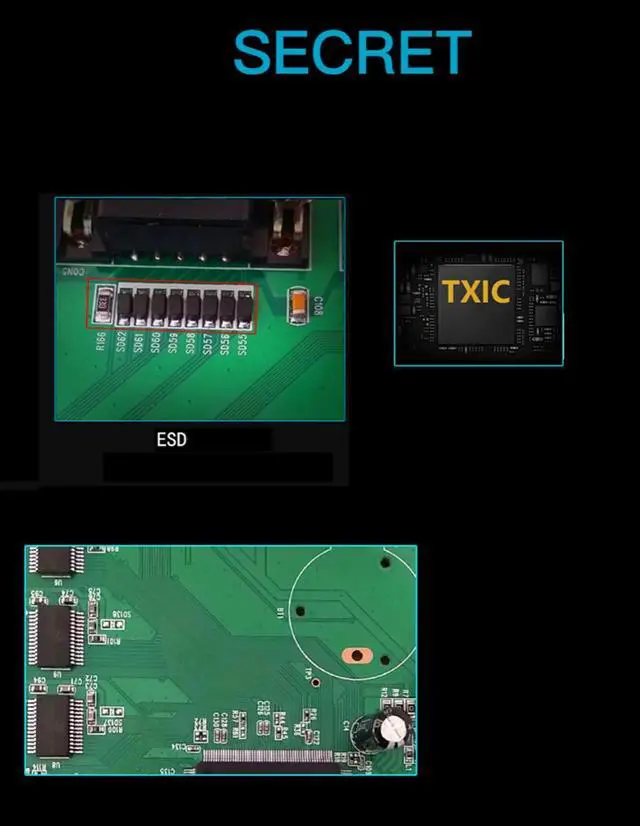

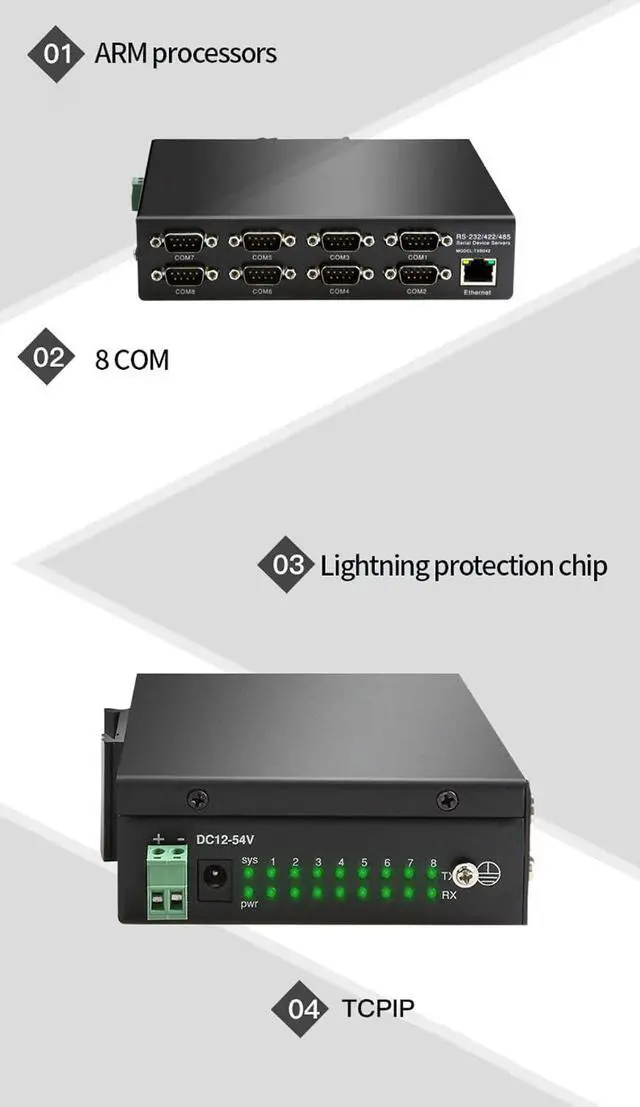

Product description: RS232 / 485/422 serial port Ethernet rail type, industrial-grade compact structure design, save space Support custom baud rate and support Modbus TCP 32-bit high-performance ARM processor, reliable performance guarantee 8 single-port serial ports, and the communication parameters of each port can be set individually Taiwan's serial chip and lightning protection design ensure more stable data TCP / IP complete protocol stack, standard seven-layer hierarchy RS-232 end via DB9 male connector I / O circuit automatically controls data flow direction Converter with zero-delay automatic transmission and reception conversion inside Dual 10 / 100Mbps for easy expansion Support Auto-MDI / MDIX

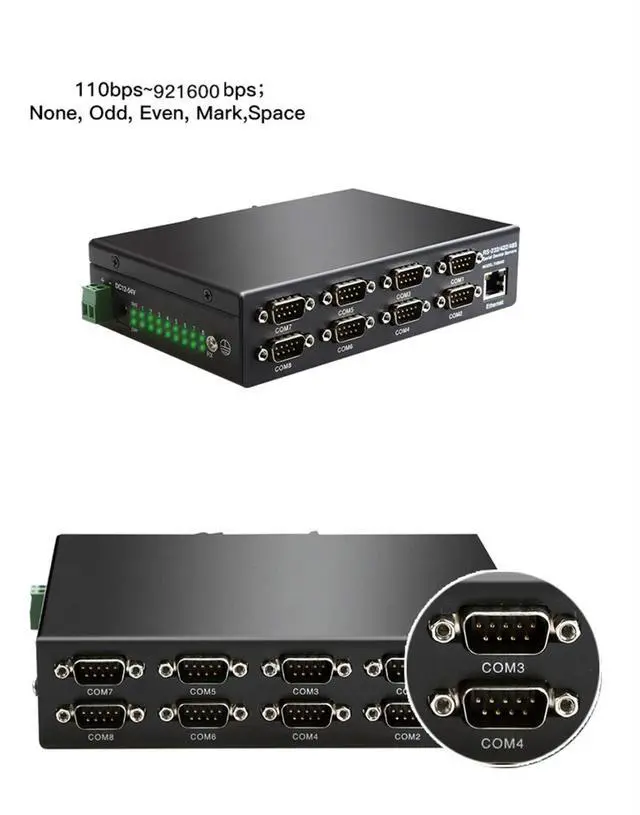

Serial baud rate: support 110bps ~ 921600ps; support five verification methods: None, odd, Even, Mark, Space Network upgrade firmware, built-in webpage, parameter setting can be done through webpage Support VCOM, TCP Server, TCP Client, UDP and other working modes
