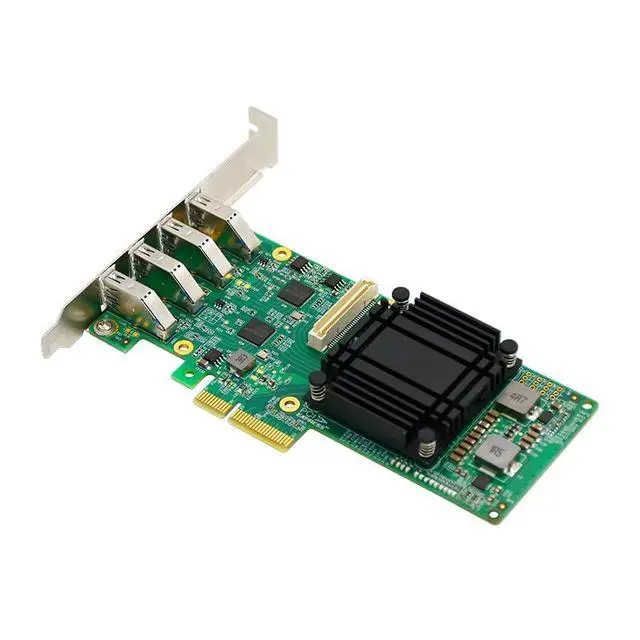

Main image of 4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card

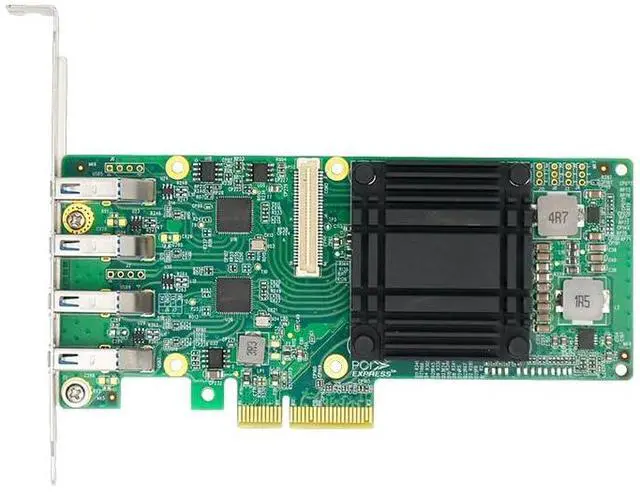

Alt view image 2 of 4 - 4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card

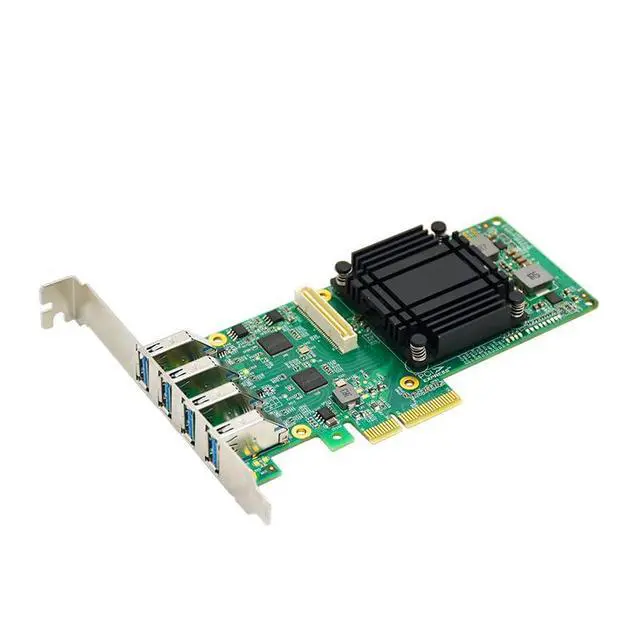

Alt view image 3 of 4 - 4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card

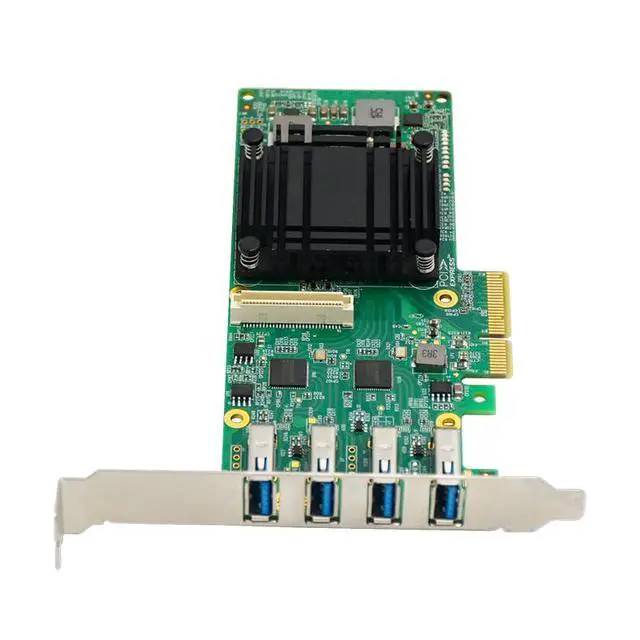

Alt view image 4 of 4 - 4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card

Visit EmpressTech Store

4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card

ModelSU3A42-4A Name4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card ChipsetASMedia 3142/2142 Interface Type4*USB3.1 Type-A Host Bus TypePCIe 3.0 x4 Transfer Speed: 10Gb/s; SU3A42-4A is a 4-port USB3.1 host adapter specifically designed for industrial and vision applications. USB3.1 (10Gbps), delivers up to 2 times the data rate over USB 3.0 and is particularly useful for high-speed data storage and imaging devices. It has two independent ASM3142/ASM2142 USB3.1 Host Controllers and x4 PCI Express Gen3 interface to offer up to 32 Gbps bandwidth for ASM3142/ASM2142. Four USB port devices are connected and working at the same time, which can provide up to 6 Gbps of actual effective bandwidth for each USB port.; In addition to transfer data bandwidth advantage, it features on-board regulated 5V DC power supply 1.5A current limit to supply stable 5V DC power to external USB devices. Combining high bandwidth, industrial-grade power design and reliable cable connection, it brings convenience to interface USB3.0/USB3.1 devices operating under Windows system and Linux system; Functional Characteristics x4 PCI Express Gen3 interface (4GB/s total bandwidth) On-board 5V DC regulated power supply, no external power needed 1.5A current limit; Support most Windows and Linux system Compliant with - Universal Serial Bus 3.1 specification Rev. 1.0 - Intel xHCI specification Rev. 1.0; Host Interface PCIe x4 channel, compatible with PCIe x8 and PCIe x16 slot Skinny version adapter card(support

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

ModelSU3A42-4A Name4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card ChipsetASMedia 3142/2142 Interface Type4*USB 3.1 Type-A Host Bus TypePCIe 3.0 x4
Transfer Speed: 10Gb/s
