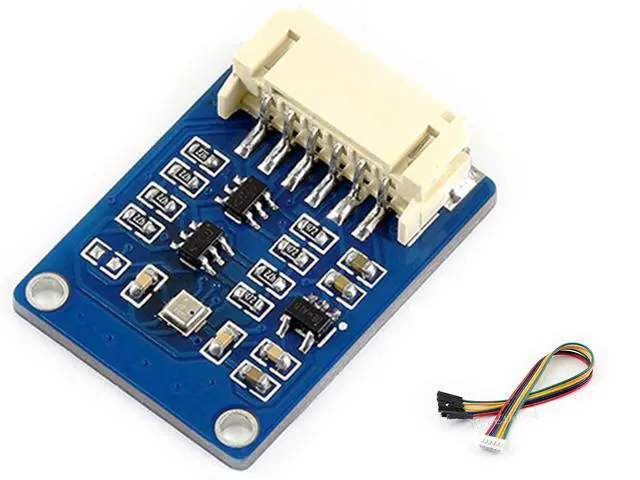

Waveshare BME280 Environmental Sensor Temperature Humidity Barometric Pressure Atmospheric Pressure Support I2C and SPI Interface Compatible with 3.3V/5V Voltage Levels
Limited time offer, ends 07/19 By EmpressTech
- A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels. Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.; Supports I2C (default), configurable slave address. Supports SPI, switch to SPI via I/O setting.; Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C). Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay 2%RH). Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa).; Power consumption: <0.1mA@1Hz (H,P,T). Dimension: 27mm x 20mm. Mounting hole size: 2.0mm.; Onboard voltage level translator, compatible with 3.3V/5V operating voltage. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

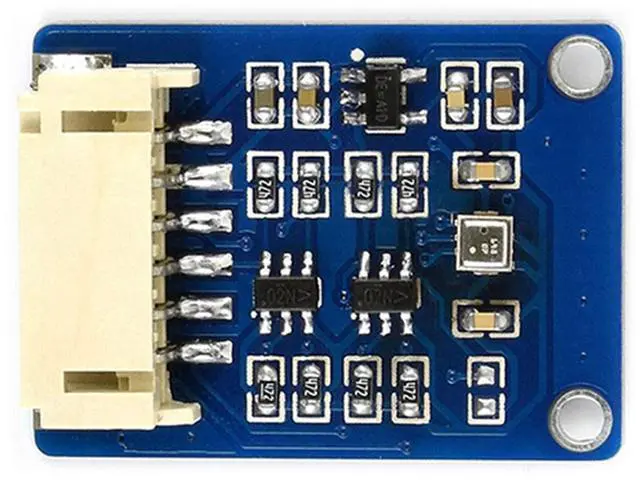

BME280 Environmental Sensor, Temperature, Humidity, Barometric Pressure Overview A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V /5V voltage levels. Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on Features Supports I2C (default), configurable slave address Supports SPI, switch to SPI via I/O setting Onboard voltage level translator, compatible with 3.3V /5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Communication interface: I2C/SPI
Temperature sensing: -40~85°C (resolution 0.01 °C, accuracy ±1°C)
Humidity sensing: 0~100%RH (resolution 0.008 %RH, accuracy ±3%RH, response time 1s, delay 2%RH)
Barometric pressure sensing: 300~1100 hPa (resolution 0.18P a, accuracy ±1hPa)
Power consumption: < 0.1 mA@1Hz (H, P, T)

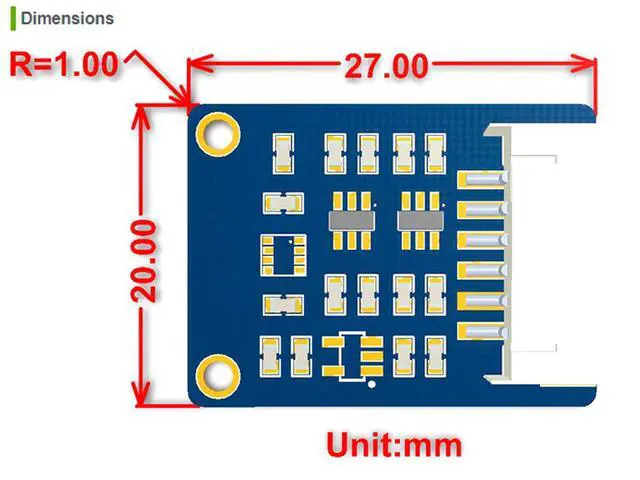

Dimension: 27mm x 20mm

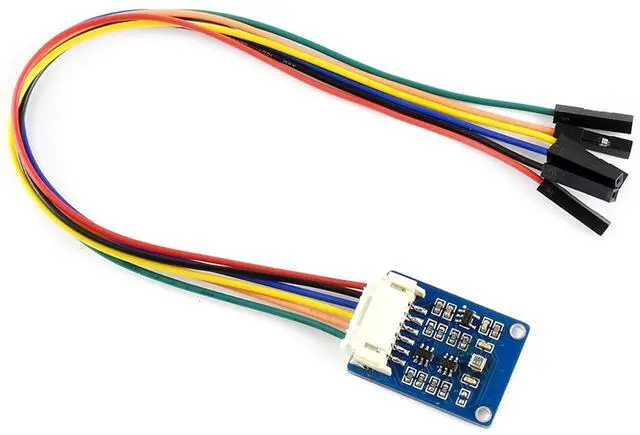

Mounting hole size: 2.0 mm Package Content BME280 Environmental Sensor x1 PH 2.0 6PIN wire 20cm x1
Specifications
Operating voltage: 3.3V /5VCommunication interface: I2C/SPI
Temperature sensing: -40~85°C (resolution 0.01 °C, accuracy ±1°C)
Humidity sensing: 0~100%RH (resolution 0.008 %RH, accuracy ±3%RH, response time 1s, delay 2%RH)
Barometric pressure sensing: 300~1100 hPa (resolution 0.18P a, accuracy ±1hPa)
Power consumption: < 0.1 mA@1Hz (H, P, T)
Dimension: 27mm x 20mm
Mounting hole size: 2.0 mm Package Content BME280 Environmental Sensor x1 PH 2.0 6PIN wire 20cm x1
