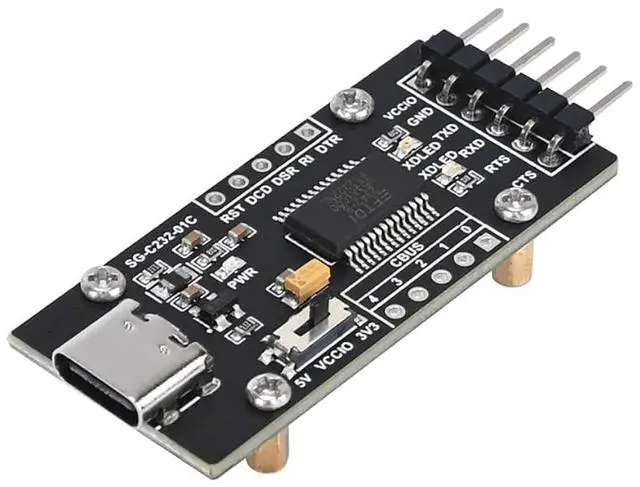

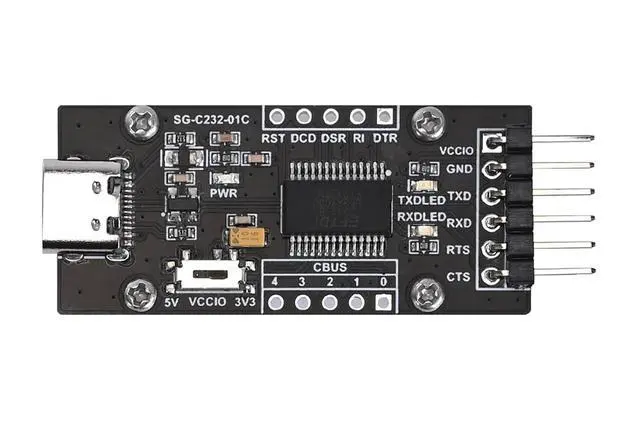

FT232RL USB to UART TTL Serial Adapter, Type-C USB 2.0 to Serial Converter Board, 3.3V/5V Level Switch, CTS/RTS Flow Control, TX/RX LEDs, for Arduino, Compatible with Raspberry Pi
- FT232RL USB to UART Bridge Board Built on the FT232RL chipset for stable USB to UART / USB to TTL serial communication, ideal for programming, debugging, and serial console access.; Type-C USB to Serial Converter Reversible USB-C connector + USB 2.0 interface for a reliable Type-C serial adapter experience on laptops and PCs (Windows/macOS/Linux support).; 3.3V/5V TTL Level Switch Onboard UART TTL level selector lets you quickly match 3.3V or 5V logic, perfect for Arduino development and compatible with Raspberry Pi UART projects.; CTS/RTS Flow Control Pins Breaks out CTS and RTS hardware flow control for more demanding USB to UART transfers; includes TXD/RXD/PWR indicators to show data activity at a glance.; Wired Serial Adapter Board (No Wireless/RF) Pure wired USB-to-serial interface for electronics development and device servicing; no battery included and no wireless/radio function.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

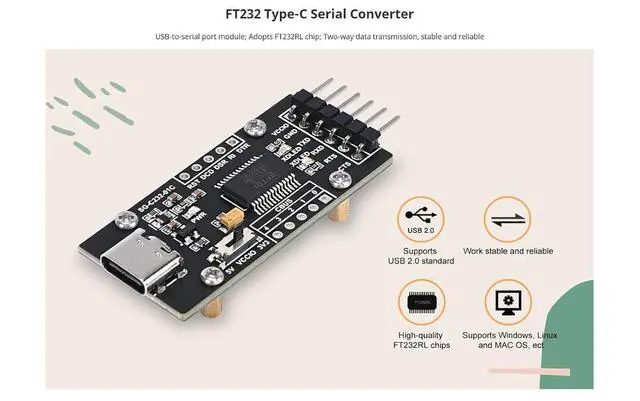

Overview Turn any USB-C port into a reliable USB to UART / USB to TTL serial interface for embedded development and device servicing. This FT232RL USB to UART bridge board follows the USB 2.0 standard and enables stable two-way data transmission between your computer and UART/TTL serial devicesgreat for firmware flashing, serial debugging, logging, and configuration. Highlights FT232RL chipset for dependable USB serial adapter performance and broad OS support (Windows, macOS, Linux). Type-C connector for convenient, reversible Type-C USB to serial converter connection. 3.3V /5V TTL level switching via onboard selectorquickly match your target boards UART logic level.

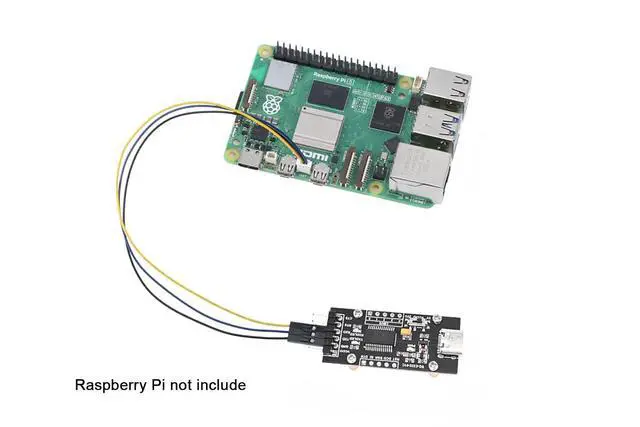

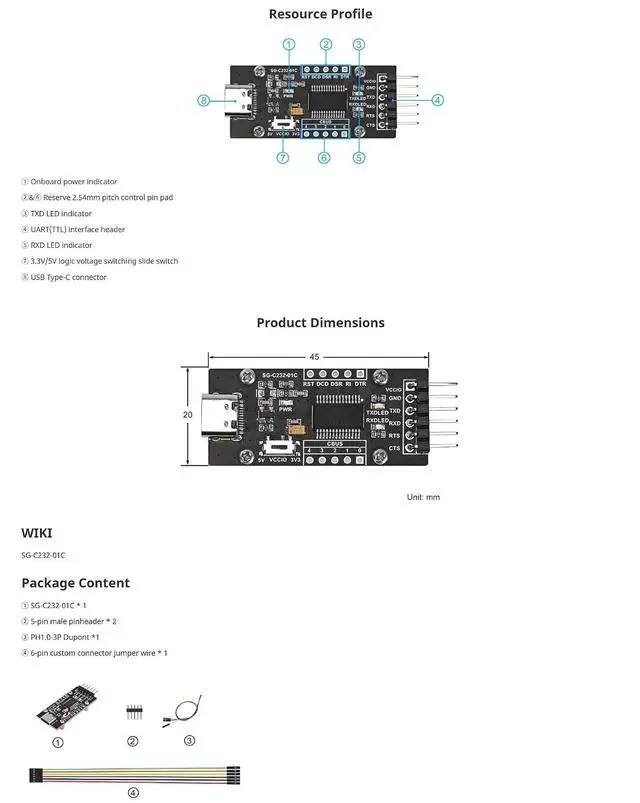

CTS/RTS hardware flow control pins for applications that require more reliable high-speed serial communication. Status LEDs (PWR/TXD/RXD) to monitor power and data activity easily. Typical uses Ideal for electronics projects and maintenance work such as serial console access, device configuration, and development workflowsworks well for for Arduino projects, compatible with Raspberry Pi UART tasks, and many other UART/TTL serial devices. Package Content SG-C232-01C * 1 5-pin male pinheader * 2 PH 1.0 -3P Dupont *1 6-pin custom connector jumper wire * 1
CTS/RTS hardware flow control pins for applications that require more reliable high-speed serial communication. Status LEDs (PWR/TXD/RXD) to monitor power and data activity easily. Typical uses Ideal for electronics projects and maintenance work such as serial console access, device configuration, and development workflowsworks well for for Arduino projects, compatible with Raspberry Pi UART tasks, and many other UART/TTL serial devices. Package Content SG-C232-01C * 1 5-pin male pinheader * 2 PH 1.0 -3P Dupont *1 6-pin custom connector jumper wire * 1
