Thermal Camera MLX90640-D110 IR Array Thermal Imaging Camera,I2C Interface 32 * 24 Pixel Infrared Array,110 Degree Field of View

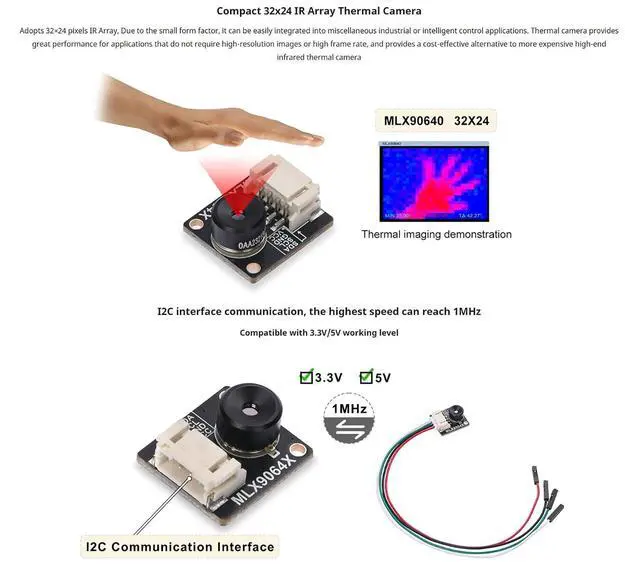

- Small size, low power consumption, 32*24 pixel infrared array,110°field of view; I2C interface communication, the highest speed can reach 1MHz; Compatible with 3.3V/5V working level; Noise Equivalent Temperature Difference (NETD) is 0.1K RMS @ 1Hz refresh rate; Available for open development resources and tutorials which are intended for Raspberry Pi Development Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

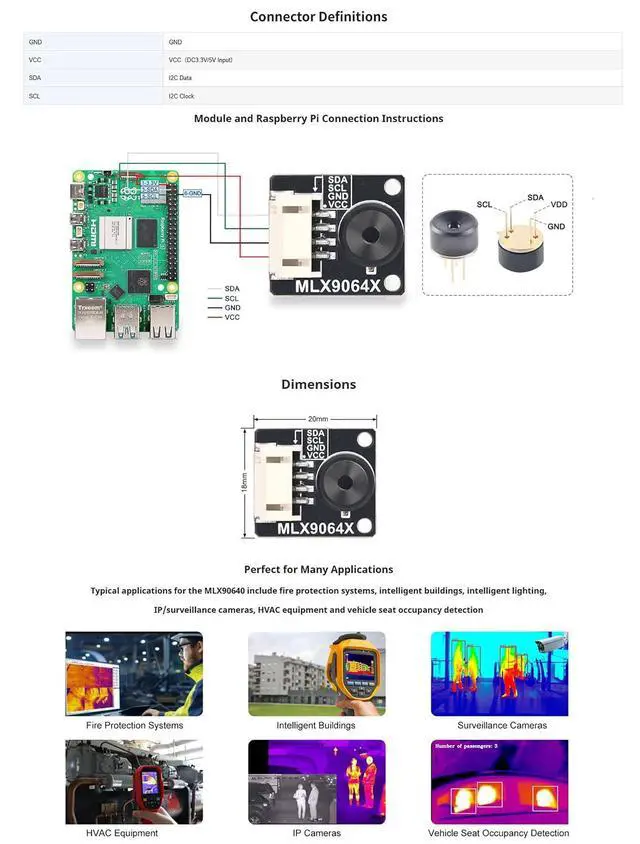

Overview: Thermal Camera MLX90640-D110 is a far-infrared thermal sensor array designed with MLX90640. With a resolution of 32*24, it provides great performance for applications that do not require high-resolution images or high frame rate, and provides a cost-effective alternative to more expensive high-end infrared thermal camera. Typical applications for the MLX90640 include fire protection systems, intelligent buildings, Intelligent lighting, IP/surveillance cameras, HVAC equipment and vehicle seat occupancy detection. This product provides demo codes intended for Raspberry Pi platform. The demo codes is divided into C and python versions, both of which include thermal image display function.
Dimensions: 20mm (length) *18mm (width)
Resolution: 32*24
Refresh Rate: 0.5H z~64Hz
Field Of View (FOV): 110°×75°
Communication Interface: I2C
Supply Voltage: 3.3V /5V
Working Current: <23mA
Operating Temperature: -45~85
Temperature Measuring Range: -40300
Absolute Accuracy: ±2

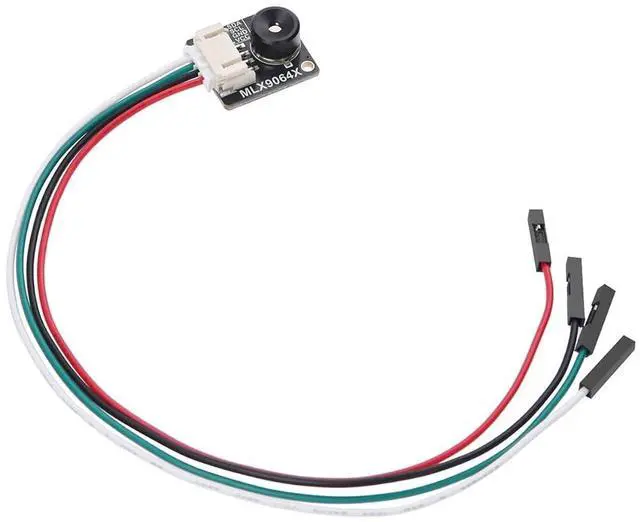

Package contents: 1. Thermal Camera MLX90640-D110×1 2. PH 2.0 4PIN wire×1
Specifications
:Dimensions: 20mm (length) *18mm (width)
Resolution: 32*24
Refresh Rate: 0.5H z~64Hz
Field Of View (FOV): 110°×75°
Communication Interface: I2C
Supply Voltage: 3.3V /5V
Working Current: <23mA
Operating Temperature: -45~85
Temperature Measuring Range: -40300
Absolute Accuracy: ±2
Package contents: 1. Thermal Camera MLX90640-D110×1 2. PH 2.0 4PIN wire×1
