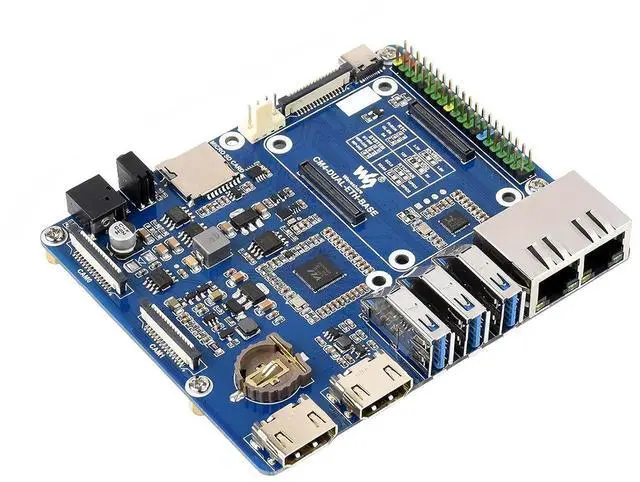

Dual Gigabit Ethernet Base Board for Raspberry Pi Compute Module 4 Lite/EMMC Series Module,with ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces
Limited time offer, ends 07/19 By EmpressTech
- Powerful Ethernet Capability: Dual Gigabit Ethernet Base for All Compute Module 4 Lite/eMMC series module boards, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products; Connecting with Compute Module 4: standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header suitable for All Compute Module 4 Lite/eMMC series module boards.; Rich interfaces: providing interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB; 3x USB 3.2 Gen1, for connecting sorts of USB devices. 2x HDMI, supports 4K 30fps output. 2x MIPI CSI camera ports. dual RJ45 Gigabit Ethernet, 10/100/1000M compatible.; Fan : 5V/12V, allows speed adjustment and measurement. RTC : Real-time clock with battery socket and ability to wake Compute Module 4.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

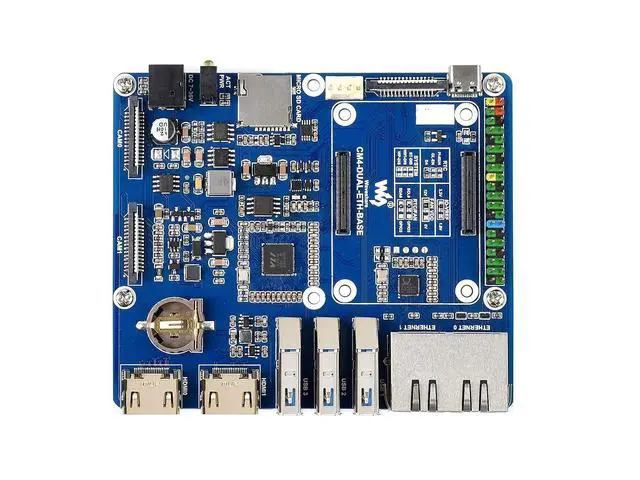

Overview Dual Gigabit Ethernet Base Board Designed For Raspberry Pi Compute Module 4, Powerful Ethernet Capability, Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products CM4-DUAL-ETH-BASE
CM4 SOCKET: suitable for all variants of Compute Module 4 2.
ETHERNET: Dual Gigabit Ethernet RJ45 3.
USB: USB 3.2 Gen1 × 3 4.
PIN HEADER: 40PIN GPIO header × 1 5.
HDMI: HDMI × 2, supports 4K 30fps output 6.
DSI DISPLAY: MIPI DSI display port × 1, 15pin 1.0 mm FPC connector 7.
CSI CAMERA: MIPI CSI-2 camera port × 2, 15pin 1.0 mm FPC connector 8.
POWER INPUT: 7V-36V 9.
FAN: 5V/12V, allows speed adjustment and measurement 10.
RTC: Real-time clock with battery socket and ability to wake Compute Module 4 11.
SD CARD SLOT: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12.
DIMENSIONS (MM): 109.0 × 91.5 Package content CM4-DUAL-ETH-BASE x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
Specifications
1.CM4 SOCKET: suitable for all variants of Compute Module 4 2.
ETHERNET: Dual Gigabit Ethernet RJ45 3.
USB: USB 3.2 Gen1 × 3 4.
PIN HEADER: 40PIN GPIO header × 1 5.
HDMI: HDMI × 2, supports 4K 30fps output 6.
DSI DISPLAY: MIPI DSI display port × 1, 15pin 1.0 mm FPC connector 7.
CSI CAMERA: MIPI CSI-2 camera port × 2, 15pin 1.0 mm FPC connector 8.
POWER INPUT: 7V-36V 9.
FAN: 5V/12V, allows speed adjustment and measurement 10.
RTC: Real-time clock with battery socket and ability to wake Compute Module 4 11.
SD CARD SLOT: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants 12.
DIMENSIONS (MM): 109.0 × 91.5 Package content CM4-DUAL-ETH-BASE x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
