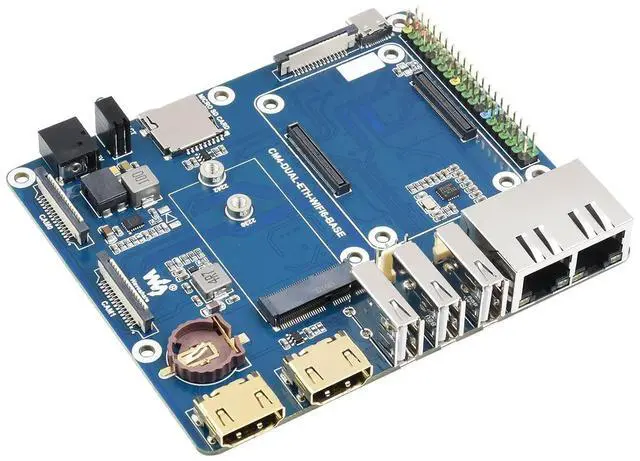

WIFI6 Dual Ethernet Base Board for Compute Module 4, Compatible with WiFi AX210 & AX200 Module,Onboard Gigabit Ethernet RJ45 Connector x1, 100M Ethernet RJ45 Connector x 1,CSI-2 Camera Port x2,etc

Overview CM4-DUAL-ETH-WIFI6-BASE, the IO board of the Raspberry Pi Compute Module 4, is a carrier board that can be used with the Raspberry Pi Compute Module 4 and supports 7~12V DC power supply, and the board has three USB ports 2.0, WIFI6, dual Ethernet ports. Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products. Compatible With WIFI Modules With M. 2 A/E KEY Interface, such as Wireless-AX210 (WiFi 6E module), Wireless-AX200 (WiFi 6 module). AX210/200 WIFI module are NOT included.

Specifications

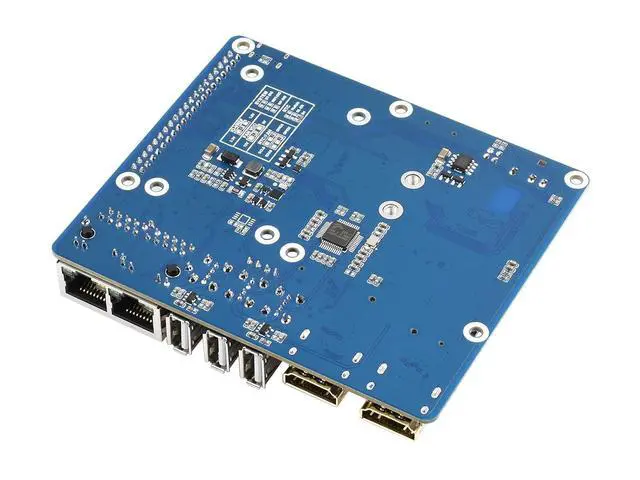

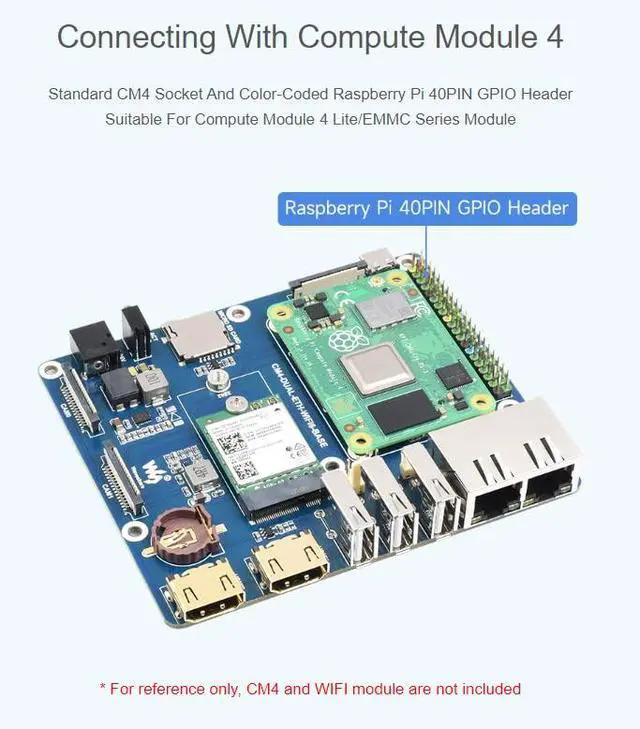

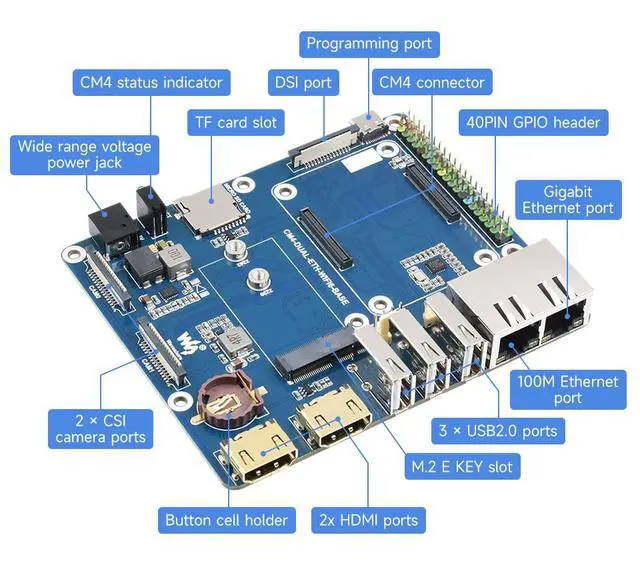

CM4 SOCKET: suitable for all variants of Compute Module 4
NETWORKING: Gigabit Ethernet RJ45 connector × 1; 100M Ethernet RJ45 connector × 1
USB: USB 2.0 port × 3

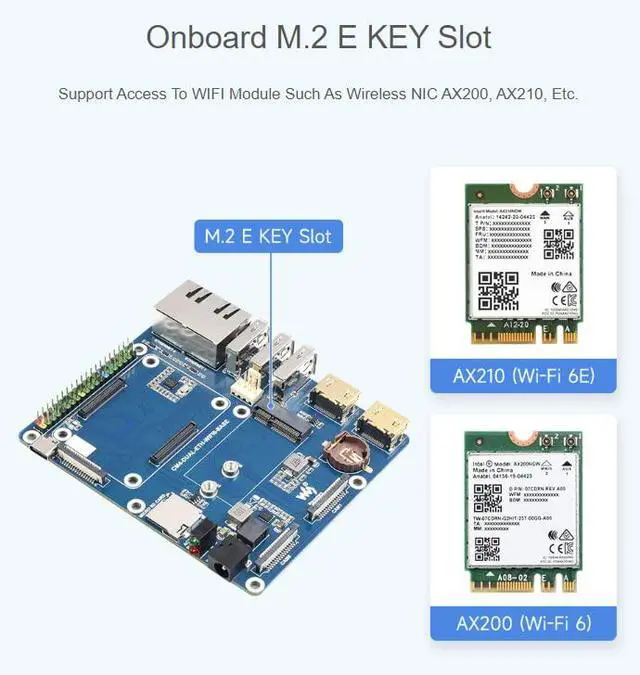

PCIE: M. 2
E KEY PIN HEADER: 40PIN GPIO header × 1

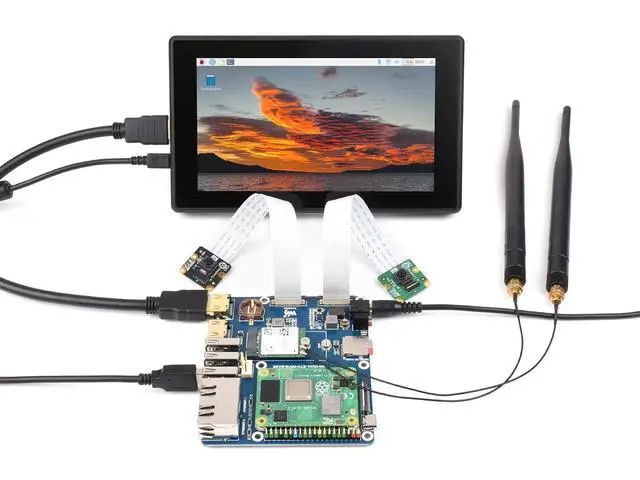

DSI DISPLAY: MIPI DSI display port × 1, 15pin 1.0 mm FPC connector
CSI CAMERA: MIPI CSI-2 camera port × 2, 15pin 1.0 mm FPC connector
HDMI: HDMI × 2, support 4K 30fps output
RTC: Real-time clock with batt--ery socket and ability to wake Compute Module 4
TF CARD SLOT: TF card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT: 7V-36V

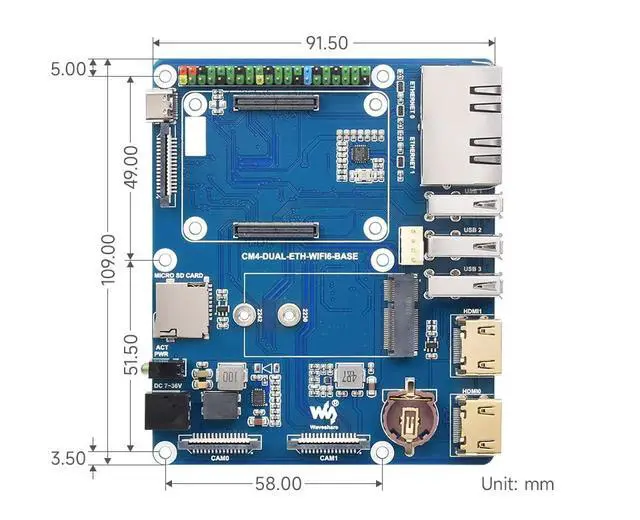

DIMENSIONS: 109.0 × 91.5 mm Note
1. Do not unplug any device except USB and HDMI when the power is on.
2. Check the fan voltage before connecting. It supports 5V and 12V. The default connection is 12V. Before switching, please modify the resistance of FAN_VCC.
3. The Type C interface is only used as a USB SLAVE interface to burn images, and cannot be used as a power supply.
4. When CM4 is in normal use, it needs to provide at least a 12V 1.5A power supply. Otherwise, problems such as automatic shutdown and frequency reduction may occur.
5. See instructions for use about Opwenwrt.
6. This expansion board does not support the POE function.
Online User Manuall: // bit. ly/3JwgYDf Package Content CM4-DUAL-ETH-WIFI6-BASE x1
