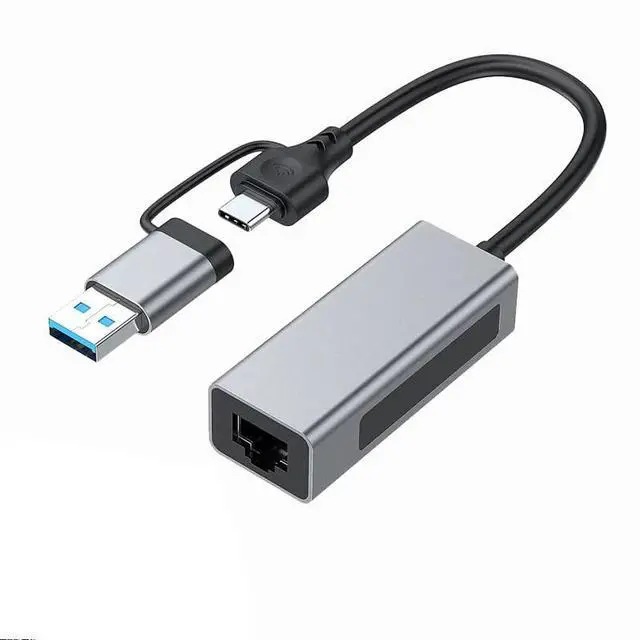

2.5G USB3.1 Ethernet Adapter, 2-in-1 USB-A/USB-C to 2.5Gbps Ethernet Adapter RJ45 Network Converter for PC Laptop Windows Mac OS Linux
- ConnectivitySuper Speed USB 3.0 Male A to 2.5G RJ45 Female Ethernet adapter connects your computer, Raspberry Pi 3 or tablet to a router, modem or network switch for network connection. It adds a standard RJ45 port to your Ultrabook, notebook or Macbook for file transferring, video conferencing, gaming, and HD video streaming.; Upgrade your existing Ethernet port USB 3.0 to 2. 5Gbps Ethernet adapter is an easy to use solution to quickly upgrade your current RJ-45 LAN port to 2. 5Gbps. Meet the requirements to get 2.5G Ethernet: 1), downloaded the drivers from Realtek offical site (chip: RTL8156B); 2), check if your Network card and your Router can support 2.5G Ethernet or not; 3), make sure to connect Cat 6 or above lan cable to the Router.; CapacitySupports 10M / 100M / 1000M (1G) / 2500M (2.5G) bandwidth, twisted pair crossover detection and auto-correction (auto MDIX) ; support WOL (Wake-On-LAN), Full Duplex flow (FDX) (10M/100M/1G/2.5G Rate), auto-negotiation and back pressure routing. Backwards compatible with USB 1.0, USB 1.1, USB bus powered, no external power supply required; Compatibility Built-in with Realtek IC chip, drivers needed before get it to work, plug and play after one time driver installation; Supports operating system for computers as Windows 10 / 8.1 / 8 / 7 / Vista / XP (32 / 64bit); MacOS / Mac OS X 10.6 to 10.15 version; Linux kernel up to 4.15 ; NOT compatible with Windows RT, or Android.; WarrantyULANSEN offers 24-month product warrant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description The 2.5G USB Network Card is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications. Product Feature ChipsetRTL8156B Port number1*
RJ45 Material: Aluminum The RTL8156B (S) offers high-speed transmission over CAT 5e UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, MDI swap, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, RFI protection, thermal management, loopback diagnostic capability, and error correction are implemented to provide robust transmission and reception capabilities. The RTL8156B (S) features embedded One-Time-Programmable (OTP) memory that can replace the external EEPROM (93C46/93C56/93C66). StandardIEEE 802.3IEEE 802.3 uIEEE 802.3 abIEEE 802.3 azIEEE 802.3 bz Compatible with the IEEE 802.3 u specification for 10/100Mbps Ethernet, the IEEE 802.3 ab specification for 1000Mbps Ethernet, and the IEEE 802.3 bz specification for 2500Mbps Ethernet. Integrated 10M BASE-Te and 100/1000M/ 2.5G BASE-T IEEE 802.3 compatible transceiver Supports 2.5G Lite (1G data rate) mode Auto-Negotiation with Extended Next Page (XNP) capability Compatible with NBASE-TTM Alliance PHY Specification Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab Supports IEEE 802.1P Layer 2 Priority Encoding Supports IEEE 802.1Q VLAN tagging Supports IEEE 802.3 az (Energy Efficient Ethernet) Supports IEEE 802.3 bz ( 2.5GBASE -T) Supports Full Duplex flow control (IEEE 802.3 x)
Compatible: Windows, macOS, Linux, and Chrome OS, USB-C (5Gbps), USB 3.0, and Thunderbolt 3 Systems, Microsoft Windows 10, 8. x, 7, Vista and XP, macOS 10.6 and above, iPadOS Linux kernel 3.2 and above (basic support, install driver or update to 5. x kernel for full support), Supported on up-to-date Chrome OS systems Plug and play for Windows 10, Mac OS 10.13. 6 to 11. x, iPadOS, Linux Kernel 5. x and above, up-to-date
Chrome OS Not Compatible: ARM-based Windows RT and Windows Mobile, Nintendo Switch, Most Android devices, TiVo Series 2, Wii, or other non-PC/Mac platforms, Not recommended for use with FreeBSD or pfSense
Driver Installation Tips: The driver program is built in the network card. After inserting the USB network card, double-click the network program in the Explorer to install the driver. Packing list 1x 2.5G LAN Card Wide Compatibility Free driver for macOS/iOS, driver required for Windows 7/8/10 systems. Compatible with Win7/8/10/11, Mac OS
Driver Installation Tips: The driver program is built in the network card. After inserting the USB network card, double-click the network program in the Explorer to install the driver. See More
RJ45 Material: Aluminum The RTL8156B (S) offers high-speed transmission over CAT 5e UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, MDI swap, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, RFI protection, thermal management, loopback diagnostic capability, and error correction are implemented to provide robust transmission and reception capabilities. The RTL8156B (S) features embedded One-Time-Programmable (OTP) memory that can replace the external EEPROM (93C46/93C56/93C66). StandardIEEE 802.3IEEE 802.3 uIEEE 802.3 abIEEE 802.3 azIEEE 802.3 bz Compatible with the IEEE 802.3 u specification for 10/100Mbps Ethernet, the IEEE 802.3 ab specification for 1000Mbps Ethernet, and the IEEE 802.3 bz specification for 2500Mbps Ethernet. Integrated 10M BASE-Te and 100/1000M/ 2.5G BASE-T IEEE 802.3 compatible transceiver Supports 2.5G Lite (1G data rate) mode Auto-Negotiation with Extended Next Page (XNP) capability Compatible with NBASE-TTM Alliance PHY Specification Compatible with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab Supports IEEE 802.1P Layer 2 Priority Encoding Supports IEEE 802.1Q VLAN tagging Supports IEEE 802.3 az (Energy Efficient Ethernet) Supports IEEE 802.3 bz ( 2.5GBASE -T) Supports Full Duplex flow control (IEEE 802.3 x)
Compatible: Windows, macOS, Linux, and Chrome OS, USB-C (5Gbps), USB 3.0, and Thunderbolt 3 Systems, Microsoft Windows 10, 8. x, 7, Vista and XP, macOS 10.6 and above, iPadOS Linux kernel 3.2 and above (basic support, install driver or update to 5. x kernel for full support), Supported on up-to-date Chrome OS systems Plug and play for Windows 10, Mac OS 10.13. 6 to 11. x, iPadOS, Linux Kernel 5. x and above, up-to-date
Chrome OS Not Compatible: ARM-based Windows RT and Windows Mobile, Nintendo Switch, Most Android devices, TiVo Series 2, Wii, or other non-PC/Mac platforms, Not recommended for use with FreeBSD or pfSense
Driver Installation Tips: The driver program is built in the network card. After inserting the USB network card, double-click the network program in the Explorer to install the driver. Packing list 1x 2.5G LAN Card Wide Compatibility Free driver for macOS/iOS, driver required for Windows 7/8/10 systems. Compatible with Win7/8/10/11, Mac OS
Driver Installation Tips: The driver program is built in the network card. After inserting the USB network card, double-click the network program in the Explorer to install the driver. See More
