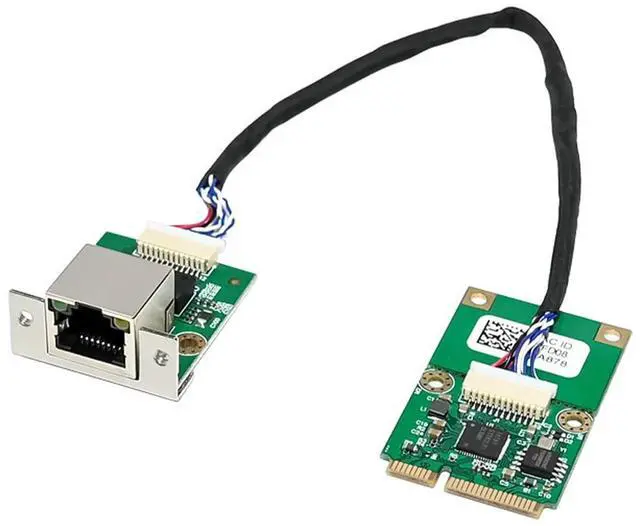

Mini PCIe Key to 2.5G Ethernet Adapter - NIC with Intel I226V, 100/1000/2500 Mbps RJ45 Stable Connection Cable Length 20cm, Compatible with OpenWRT | Windows | Linux | Server | PC | SBC

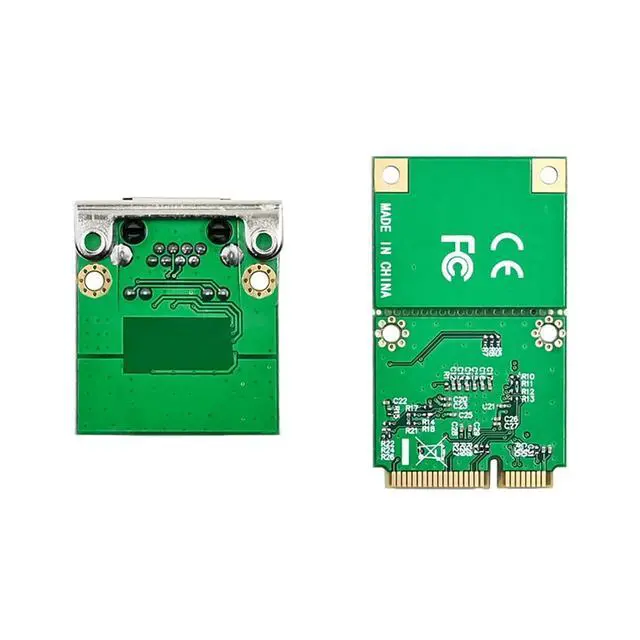

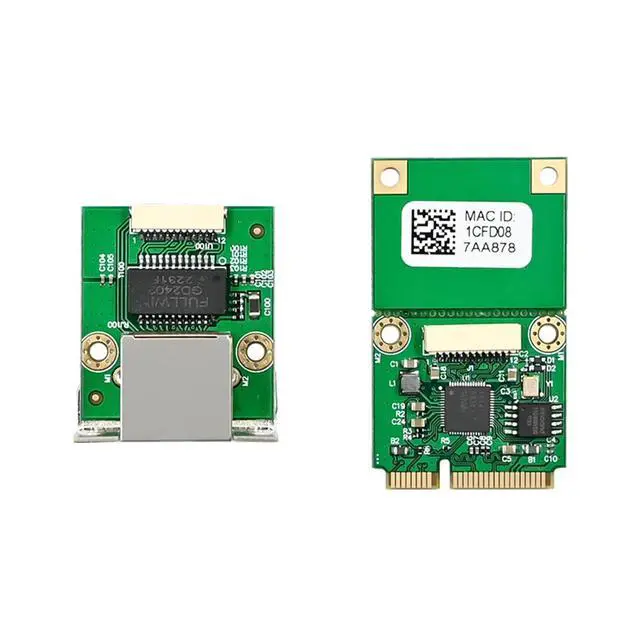

- [High-Performance I226-V Controller] Equipped with an I226-V Ethernet controller, this 2.5G network card supports multi-speed auto-negotiation transmission at 2.5G/1G/100M/10Mbps. The IEEE 802.3 standard ensures smooth and efficient data transfer in daily, server, and industrial applications.; [Space-Saving Design] Features a compact Mini PCIE key board (30x51mm) paired with a standalone RJ45 module (33x30x15mm), ideal for space-constrained devicesincluding mini PCs, industrial computers, budget servers, and workstations. The 20.8cm flexible cable simplifies installation without occupying additional chassis space, making it perfect for upgrading space-limited equipment.; [Multi-System Compatibility] This network card supports diverse systems: OpenWRT, PVE, DSM, Windows, Ubuntu, CentOS, and more. It seamlessly integrates with software routers, virtualized servers, industrial control systems, and home labs.; [Industrial-Grade Stability] Engineered for harsh environments, supporting TSN, 9.5KB jumbo frames, and IEEE 1588 protocol. Wide operating temperature (0~55°C) and storage temperature (-40~70°C) ensure long-term stable operation, ideal for industrial-grade, all-weather server deployments.; [Practical Features] Includes user-friendly functions: Wake-on-LAN , PXE remote boot, VLAN filtering, and TCP/UDP checksum offloading. The package includes the network card, driver documentation, and user manual, enabling quick and easy installation for both beginners and professionals.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description Overview MiniPCIe Single-Port 2.5G Copper Multi-Gigabit Industrial Control Server Network Interface Card (NIC) utilizes the high-performance I226-V Ethernet controller. The I226-V controller features a Base-T copper network interface supporting 2500BASE-T, 1000BASE-T, 100BASE-TX. It delivers a compact, single-port integrated multi-gigabit ( 2.5G )-MDI (copper) standard IEEE 802.3 network interface with 10BASE-TE connectivity. The MiniPCIe I226-V 2.5G copper industrial server network card is designed for: any mobile device, desktop, workstation, value server, or industrial design with stringent space constraints.
Specifications
Supports existing CAT-5 UTP cabling with auto-crossover detection Fully compliant with PCI-Express Base Specification Revision 1.1; Single-lane (x1) PCI-Express, throughput up to 2.5 Gbps Compatible with PCI-E MINI-card mechanical specifications Revision 1.2; Compatible with full-size MINI-cards, fully Plug and Play compliant MDI (copper) standard IEEE 802.3 Ethernet interface, speeds up to 2.5 Gb/s; Complies with single-port 2.5G bE RJ45 port (copper cable) Compliant with MDI standard IEEE 802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE 802.3 bZ, IEEE 802.3 ab, IEEE 802.3 u, IEEE 802.3 ) IEEE 802.3 auto-negotiator Flow control compliant with IEEE 802.3 x and IEEE 802.3 z standards, supporting software-configurable RX threshold and TX pause frames Auto-crossover detection (MDI/MDI-X); IEEE 1588 protocol and 802.1AS implementation Supports Time-Sensitive Networking (TSN) functionality; supports IEEE 802.3 az - Energy Efficient Ethernet (EEE) Supports Wake-on-LAN (Wake-0n-Lan) TCP/UDP, IPv4 checksum offload (Rx/Tx) Transmit Segment Offload (TSO) (IPv4, IPv6); supports jumbo frames up to 9.5KB TechnicalSpecifications
Applicable Network 2.5G Server Network Interface Card Primary Controller I226-V Chipset Bus Type MiniPCIe Media Interface 1xRJ45 Copper Cable Transmission Rate 2.5G /1000/100Mbps Network Topology 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE Network Topology IEEE 802.3 bZ, IEEE 802.3, IEEE 802.3 x, IEEE 1588, IEEE 802.3 az Network Topology Energy Efficient Ethernet (EEE) Management Features IPMI delivery via SMBus or NC-SI, iSCSI boot, Wake-on-LAN (WoL), PXE remote boot, VLAN filtering Operating System Windows 10 32/64-bit; Windows 10 v1809 32/64-bit or later Product Certifications FCC, CE, ROHS Operating Temperature 0~55°C (32~131°F) Storage Temperature -40~70°C (-40~158°F) Storage Humidity 90% non-condensing relative humidity at 35°C See MoreWarranty & Returns
