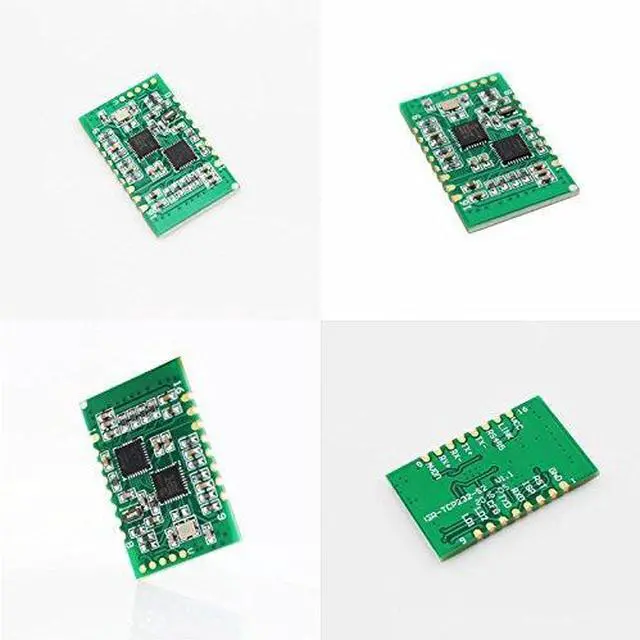

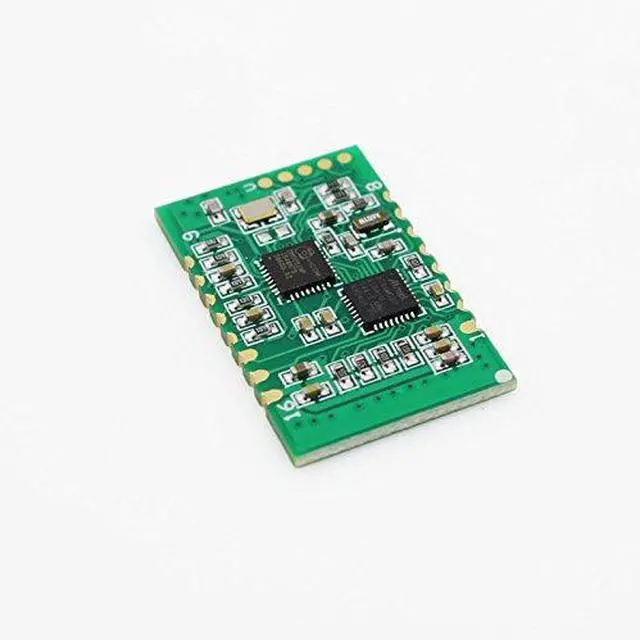

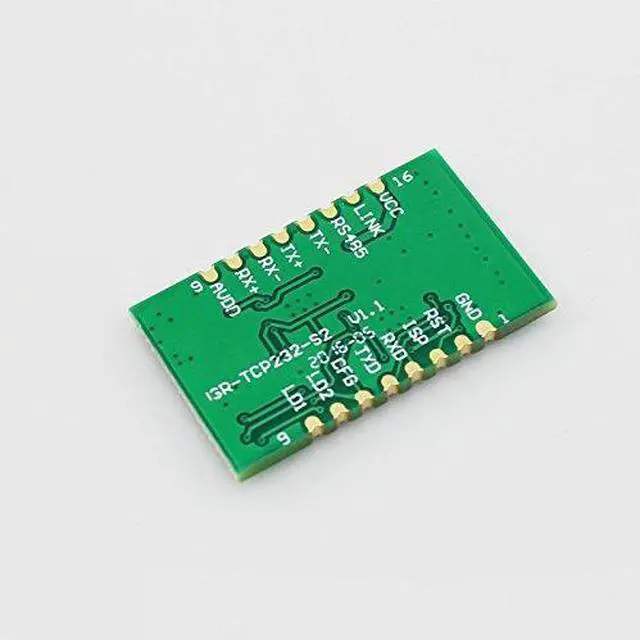

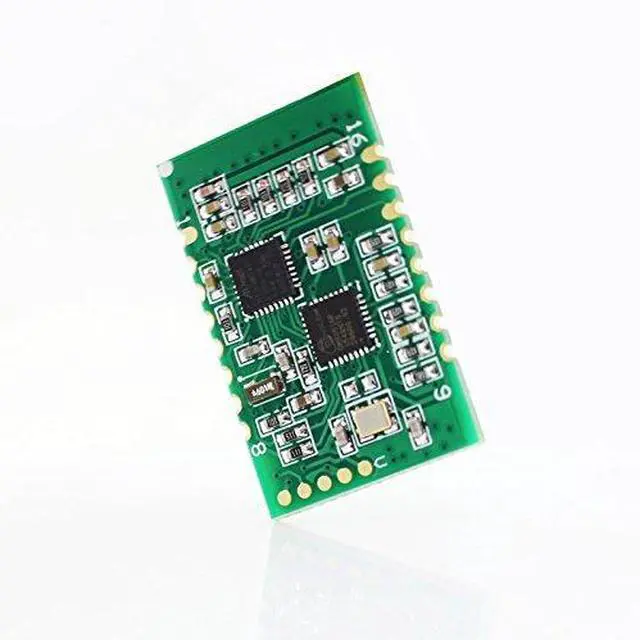

1pc TTL Ethernet Module
Limited time offer, ends 10/25 By Rufei Tech
- System Information Processor ARM Flash 32K byte Ethernet Port Number 1 Interface Standard RJ45 Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection Protection 2KV electromagnetism isolation Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP Buffer Send: 6K bytes, receive: 4K bytes
- Serial Port Number 1 Interface Standard TTL Data Bits 5, 6, 7, 8 Stop Bit 1, 2 Check Bit None, Even, Odd, Space, Mark Baud Rate 600 bps ~ 460.8 Kbps Flow Control Null Buffer Receive: 800 bytes RS-485 Pull-up and Pull-Down Resistor Null, reserved 485 send-receive control pin
- Software Virtual SerialUSR-VCOM Windows 2000 or higher (32 bit/64 bit) Configuration computer set-up software, serial command, built-in webpage, AT command Basic Parameter Size 33 x 20.3 mm Operating Temp. -25~ 75°C Storage Temp. -40 ~ 105°C, 5 ~ 95% RH Input Voltage DC 3.3V Working Current 150mA (aver), 200mA (max) Power <1W More Warranty 2 years Accessory Null
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
System Information Processor ARM Flash 32K byte Ethernet Port Number 1 Interface Standard RJ45 Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection Protection 2KV electromagnetism isolation Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
Buffer Send: 6K bytes, receive: 4K bytes. Serial Port Number 1 Interface Standard TTL Data Bits 5, 6, 7, 8 Stop Bit 1, 2 Check Bit None, Even, Odd, Space, Mark Baud Rate 600 bps ~ 460.8 Kbps Flow Control Null
Buffer Receive: 800 bytes RS-485 Pull-up and Pull-Down Resistor Null, reserved 485 send-receive control pin. Software Virtual SerialUSR-VCOM Windows 2000 or higher (32 bit/64 bit) Configuration computer set-up software, serial command, built-in webpage, AT command Basic Parameter Size 33 x 20.3 mm Operating Temp. -25~ 75°C Storage Temp. -40 ~ 105°C, 5 ~ 95% RH Input Voltage DC 3.3V Working Current 150mA (aver), 200mA (max) Power <1W More Warranty 2 years Accessory Null
Buffer Send: 6K bytes, receive: 4K bytes. Serial Port Number 1 Interface Standard TTL Data Bits 5, 6, 7, 8 Stop Bit 1, 2 Check Bit None, Even, Odd, Space, Mark Baud Rate 600 bps ~ 460.8 Kbps Flow Control Null
Buffer Receive: 800 bytes RS-485 Pull-up and Pull-Down Resistor Null, reserved 485 send-receive control pin. Software Virtual SerialUSR-VCOM Windows 2000 or higher (32 bit/64 bit) Configuration computer set-up software, serial command, built-in webpage, AT command Basic Parameter Size 33 x 20.3 mm Operating Temp. -25~ 75°C Storage Temp. -40 ~ 105°C, 5 ~ 95% RH Input Voltage DC 3.3V Working Current 150mA (aver), 200mA (max) Power <1W More Warranty 2 years Accessory Null
