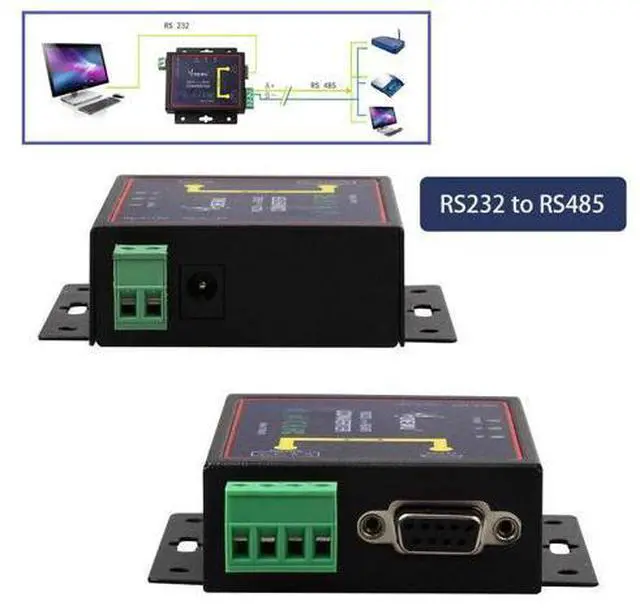

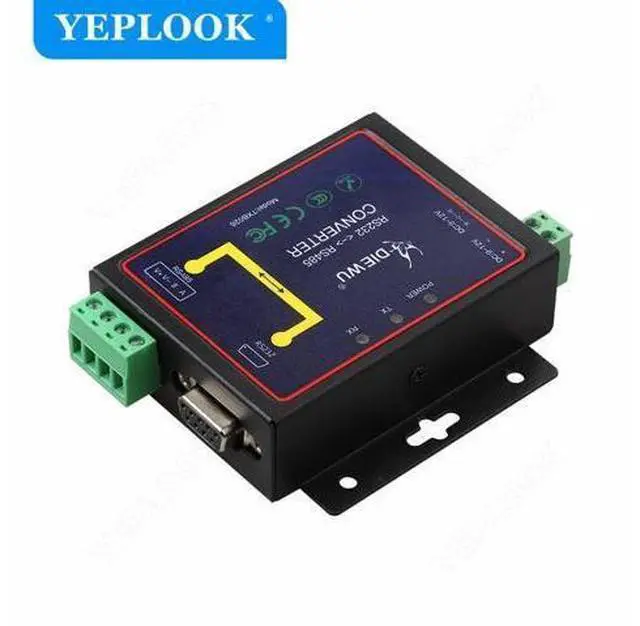

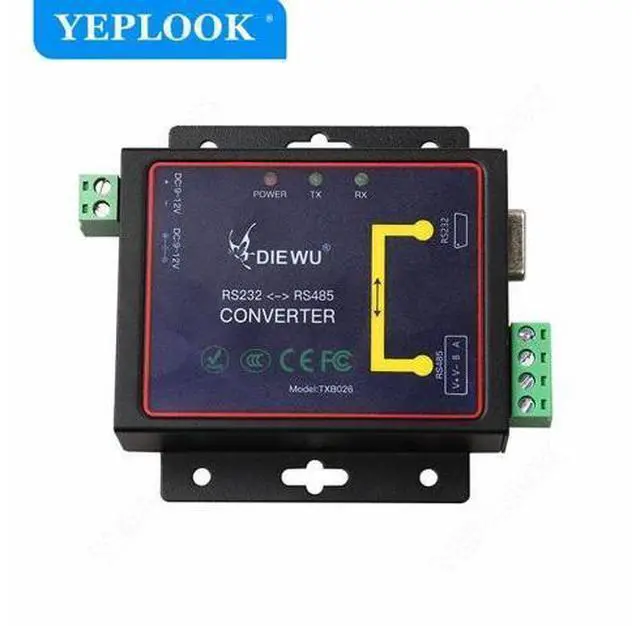

RS232 to RS485 Serial Network Ethernet Device Server Active Converter DB9 Female with Power Supply Cable for Industrial Use

RS232 to RS485 Serial Network Ethernet Device Server Active Converter DB9 Female with Power Supply Cable for Industrial Use
Product specification: Model
number: DW-TXI026
Chipset: ZT323+ZT485
Port number: 1* RS232 Female COM port, 1* RS485 port
Interface: compatible with RS232 and RS485 standard
Baud rate: 300bps~115200bps
Power Input: DC9V-12V
Power Consumption: Max 01.5W
LED Indicator: Power, TX/RX
Size: 94*86*25mm
Operation modes: TCP Server, TCP Client, UDP
Support Systems: Windows
XP/WIN7/WIN8/WIN10 Working Environment: Operating
Temperature: -10 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-85
Relative Humidity: 5%-90%(non-condensing
Device Default Parameters:
ID: admin
Password: system
IP address: 192.168.
2.1 Operation mode: TCP server
Transmission Mode: RS232
Baud rate: 57600bps
UART parameters: 57600, 8, N, 1
Local port:
TCP: 23, UDP: 21
Load default:
1. Power off the device
2. Hold the load default button
3. Power on the device, hold the button for 10 seconds, then release the default button

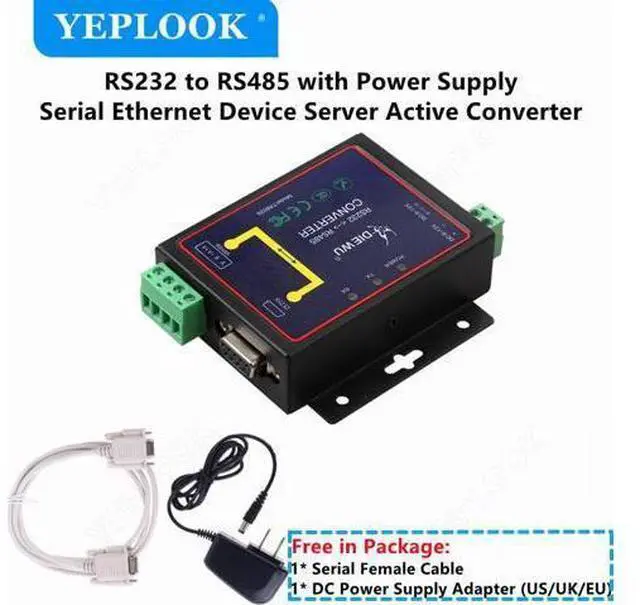

Package List: 1x RS232 to RS485 Serial Network Ethernet Device Server Active Converter, 1x Power adapter (The plug will meets your country standard)
