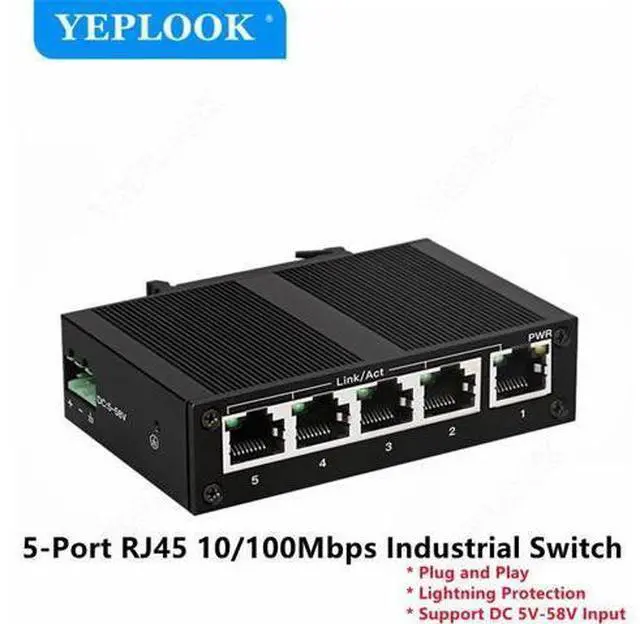

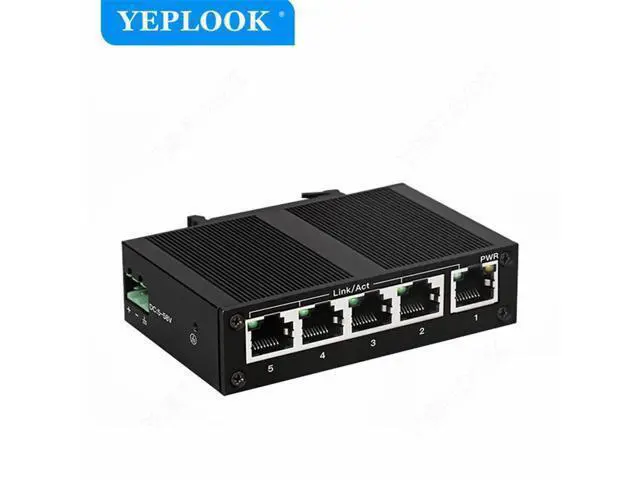

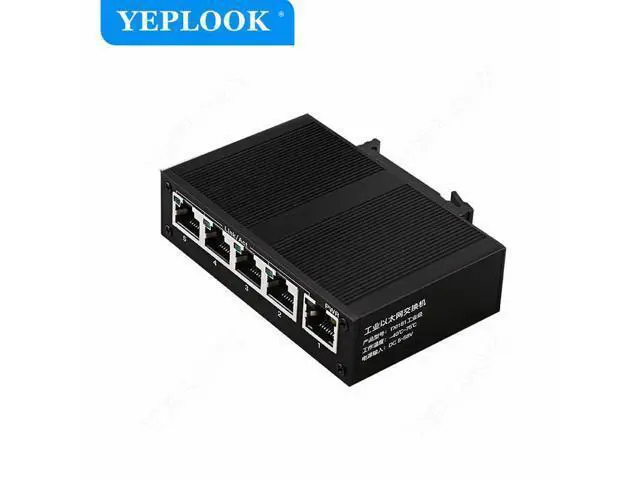

5 Ports RJ45 10/100Mbps Industrial Switch, Ethernet Network Switch, Support DC 5V-58V Input, Plug and Play, Lightning Protection
- YEPLOOK 5 Ports RJ45 10/100Mbps Industrial Switch, Ethernet Network Switch, Support DC 5V-58V Input, Plug and Play, Lightning Protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
5 Ports RJ45 10/100Mbps Industrial Switch, Ethernet Network Switch, Support DC 5V-58V Input, Plug and Play, Lightning
Protection Description:
Chipset: IP175GH
Supported standards and protocols: IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Interface: 5x RJ45 ports 10/100Mbps adaptive (Auto MDI/MDIX)
Network media:
10Base-T: Class 3 or above UTP; 100Base
TX: Class 5 UTP and above
Transmission mode: store and forward
MAC address capacity: 1K
Switching capacity: 1Gbps
Packet forwarding rate: 744Kpps
Indicator light:
each: Power (yellow);
Per port: Link/Act (green)
Power supply:
DC: 5-58V, 3-core Phoenix terminal, power polarity reverse connection protection
Power consumption:
maximum: 0.7W

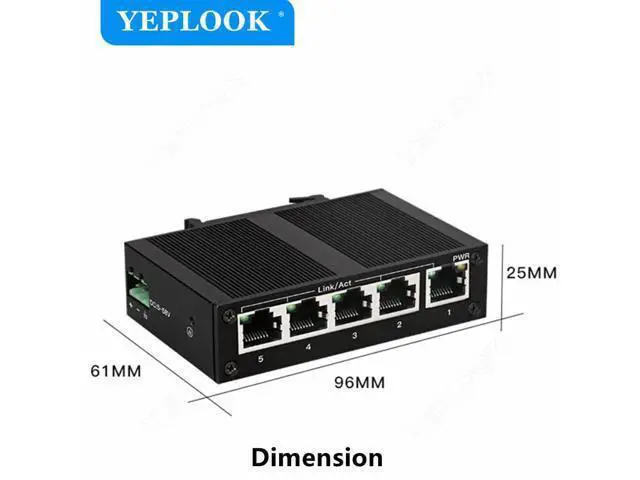

Boundary dimension (LxWxH): 96 * 61 * 25.3 mm
Operating environment: Operating
temperature: - 40 ~75
Storage temperature: - 40 ~75
Operating humidity: 10%~90% RH non condensing
Storage humidity: 5%~90% RH, non condensing
Protection Description:
Chipset: IP175GH
Supported standards and protocols: IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Interface: 5x RJ45 ports 10/100Mbps adaptive (Auto MDI/MDIX)
Network media:
10Base-T: Class 3 or above UTP; 100Base
TX: Class 5 UTP and above
Transmission mode: store and forward
MAC address capacity: 1K
Switching capacity: 1Gbps
Packet forwarding rate: 744Kpps
Indicator light:
each: Power (yellow);
Per port: Link/Act (green)
Power supply:
DC: 5-58V, 3-core Phoenix terminal, power polarity reverse connection protection
Power consumption:
maximum: 0.7W
Boundary dimension (LxWxH): 96 * 61 * 25.3 mm
Operating environment: Operating
temperature: - 40 ~75
Storage temperature: - 40 ~75
Operating humidity: 10%~90% RH non condensing
Storage humidity: 5%~90% RH, non condensing
