Ethernet RJ45 to RS232 DB9 Serial Port Device Server Converter Industrial Ethernet LAN Adapter Support TCP/RTU/UDP Modes with Free Serial Cable & Power Supply
Cable Product specification: Model
number: DW-TXI022
Chipset: TXIC/TX210T
Dimension: 78*72*23mm
Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1* RS232 Com port
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5
UTP Interface: compatible with RS232 standard
Data rate: 10/100M
Forwarding rate: 10 Mbps/14, 880bps, 100Mbps/148, 800bps
Baud rate: 300bps~230400bps
Operation modes: TCP Server, TCP Client, UDP
Power Input: DC5V
Power Consumption: Max 1.5W
LED Indicator: Link/Act, Power, TX/RX
Standard: IEEE 802.3IEEE 802.3 uIEEE 802.3 xIEEE 802.3 az
Support Systems: Windows XP/WIN7/WIN8/WIN10
Other Functions: Build load default key
Working Environment: Operating
Temperature: -10 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-85
Relative Humidity: 5%-90%(non-condensing

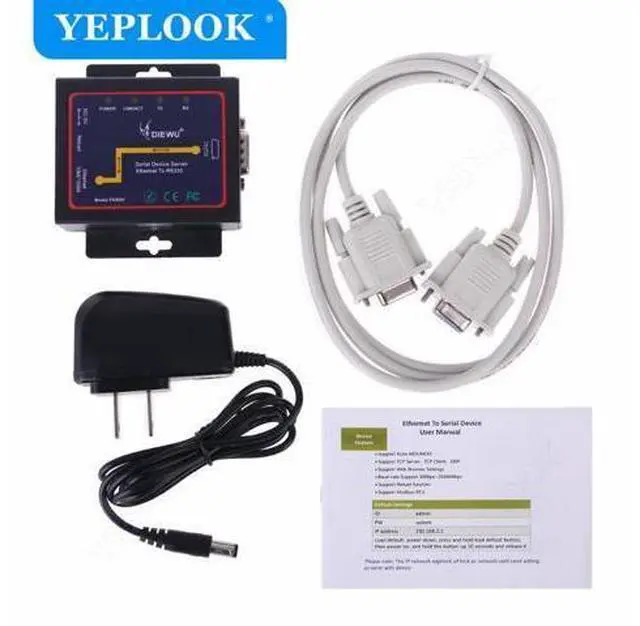

Package List: 1x Ethernet RJ45 to RS232 Converter, 1x Serial Cable, 1x Power adapter (The plug will meets your country standard)
Cable Product specification: Model
number: DW-TXI022
Chipset: TXIC/TX210T
Dimension: 78*72*23mm
Port number: 1 port 10/100M Auto MDI-MDIX RJ45, 1* RS232 Com port
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5
UTP Interface: compatible with RS232 standard
Data rate: 10/100M
Forwarding rate: 10 Mbps/14, 880bps, 100Mbps/148, 800bps
Baud rate: 300bps~230400bps
Operation modes: TCP Server, TCP Client, UDP
Power Input: DC5V
Power Consumption: Max 1.5W
LED Indicator: Link/Act, Power, TX/RX
Standard: IEEE 802.3IEEE 802.3 uIEEE 802.3 xIEEE 802.3 az
Support Systems: Windows XP/WIN7/WIN8/WIN10
Other Functions: Build load default key
Working Environment: Operating
Temperature: -10 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-85
Relative Humidity: 5%-90%(non-condensing
Package List: 1x Ethernet RJ45 to RS232 Converter, 1x Serial Cable, 1x Power adapter (The plug will meets your country standard)
