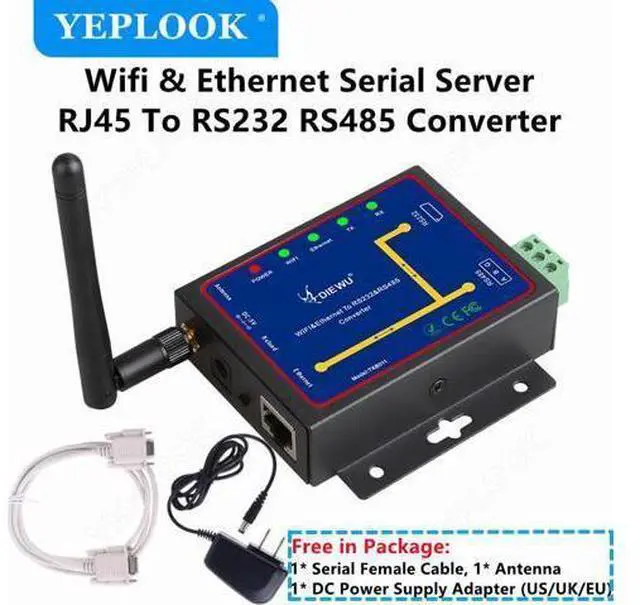

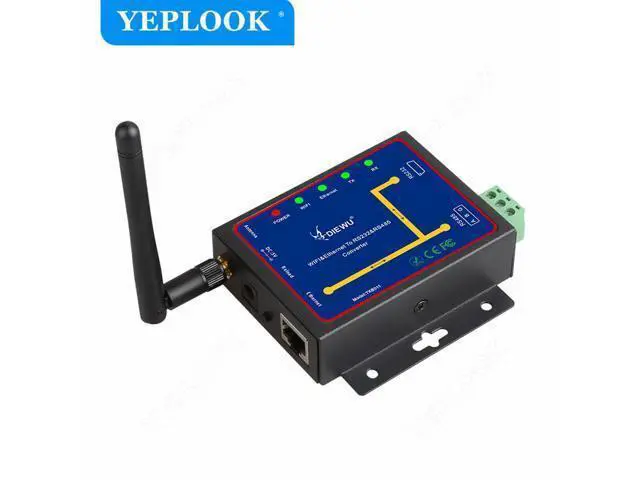

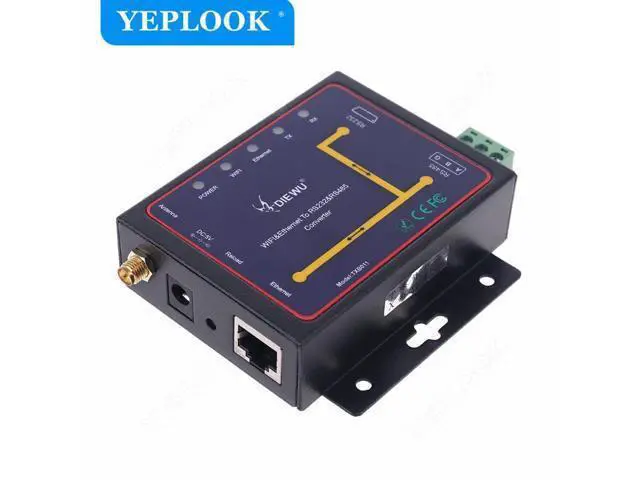

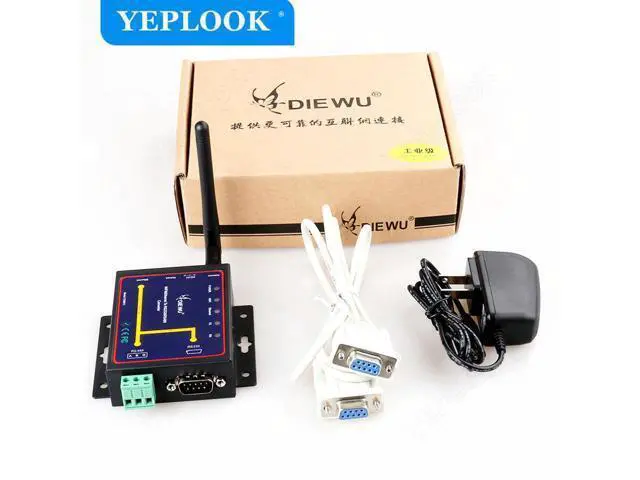

WiFi RJ45 Ethernet to RS232 RS485 Serial Server Converter 2.4GHz Support WatchDog Modbus Gateway TCP/UDP/HTTP IP P2P Chipset MTK

WiFi RJ45 Ethernet to RS232 RS485 Serial Server Converter 2.4GH z Support WatchDog Modbus Gateway TCP/UDP/HTTP IP P2P Chipset MTK Ethernet/WIFI to RS232/RS485 server, realize Ethernet to serial port, two-way transparent data transmission between WIFI and serial port, support RS485 half-duplex transmission. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter. Suitable for a variety of industrial application scenarios, provide PC and Android APK remote connection DEMO and source code, WIFI signal is sent and received through the antenna, which can realize long-distance communication
Description: Model
number: DW-TXB011
Chipset: MTK
UART port: 1 *RS232, 1*RS485
UART working mode: TCP server, TCP client, UPD, Virtual Serial port
WIFI Standard: IEEE 802.11.
b/g/n LED Indicator: WIFI, Link/ACT, Power, TX/RX
Baud rate: RS 232:300 bps~230400bps, RS 485: 300 bps~115200bps
Dimension: 78*72*23mm
Power Input: DC5V
Power Consumption: Max 1.5W
Environment Operating Temperature: -20 -70
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-85
Relative Humidity: 10%-90%(non-condensing)
Features: Support WIFI 2.4GH z 802.11 b/g/n wireless standards. Support TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode. Support RS232 and RS485 serial ports. Support electrostatic protection. Support timeout reset function, timing reset function.
