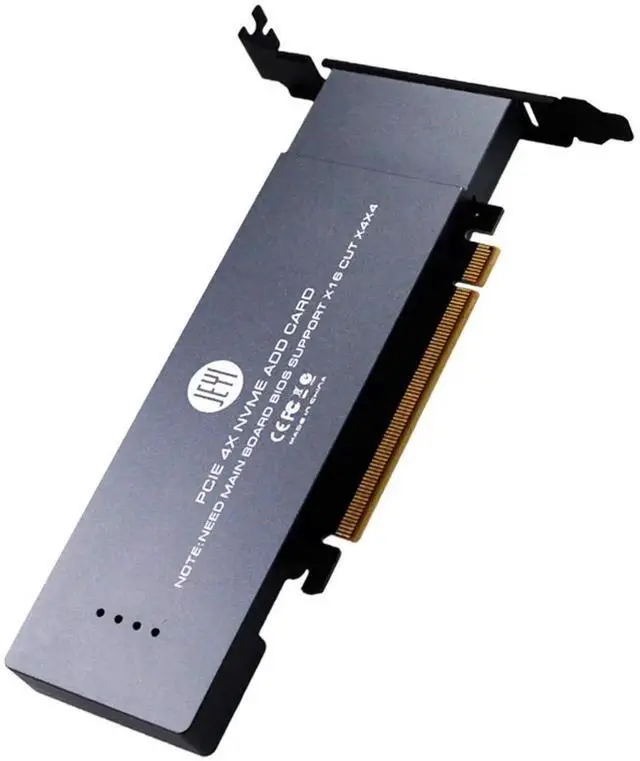

iHyper-Pro PCIe 4.0 x16 to 4×M.2 NVMe Expansion Card, M-Key 2280 SSD Adapter, 32Gbps Per Drive, Intel VROC NVMe RAID Supported
- PCIe 4.0 Gen4 x16 host interface, splits into four independent PCIe 4.0 x4 lanes; each M.2 slot delivers full 32Gbps single-direction bandwidth for simultaneous full-speed 4-drive operation

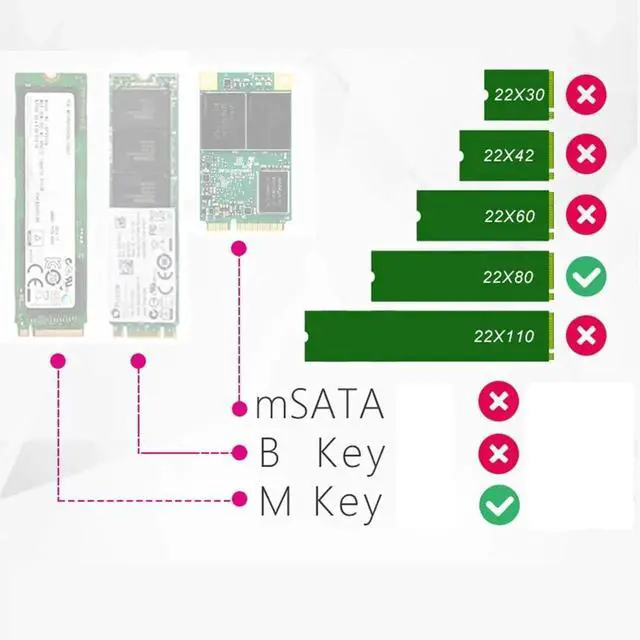

- Exclusive M.2 M-Key design, compatible only with 2280 size NVMe SSDs; backward compatible with PCIe 3.0 Gen3 for cross-platform hardware compatibility

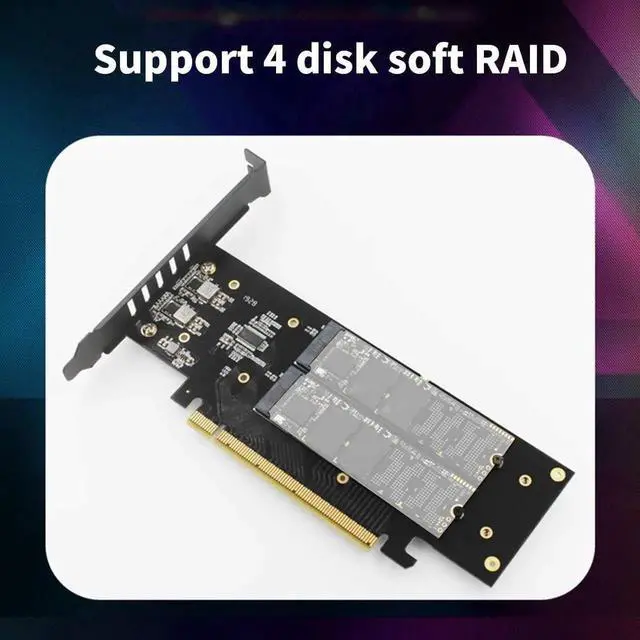

- Certified for Intel VROC (Virtual RAID on CPU), supports bootable hardware NVMe RAID 0/1/5/10; also works with Windows software RAID for flexible storage pooling
- Pro-grade reinforced thick PCB + multi-channel high-power DC power modules, equipped with full aluminum cooling heatsink to eliminate thermal throttling under 24/7 heavy server loads

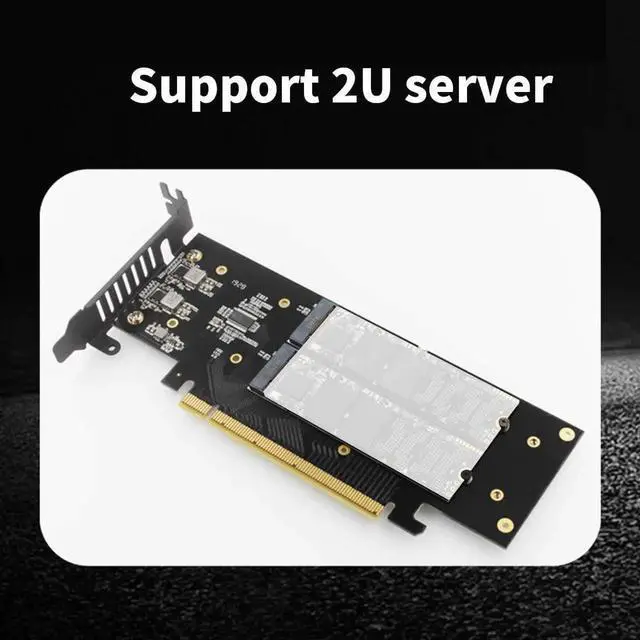

- Dual mounting brackets (full-height + low-profile) included, fits standard ATX workstations and compact 2U rack servers; complete thermal pads and screw installation kit supplied
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The iHyper-Pro quad M.2 NVMe expansion card converts one PCIe 4.0 x16 motherboard slot into four standalone M.2 M-Key 2280 NVMe bays, greatly expanding high-speed storage capacity for rendering workstations, enterprise servers and data mining rigs.
It relies on motherboard PCIe lane bifurcation (BIOS set to x4×x4×x4×x4 split mode) to assign dedicated PCIe 4.0 x4 bandwidth to every SSD, unlocking full 32Gbps throughput per drive without performance reduction. With native Intel VROC support on Intel CPU platforms, users can build bootable hardware NVMe RAID arrays for high-reliability storage clusters; Windows soft RAID is available for consumer editing environments without VROC hardware.
This upgraded Pro model features a thickened anti-bending PCB board and multi-phase stable power supply circuits to meet power demands of high-wattage Gen4 NVMe SSDs. The integrated large aluminum heatsink efficiently dissipates concentrated heat from four running solid-state drives, maintaining consistent read/write speeds during long-duration 8K video rendering, database access and cloud caching tasks.
Two interchangeable brackets support installation in full-size PC chassis and slim short rack servers, and all necessary thermal conductive pads plus fixing screws are included for hassle-free assembly. The card runs stably across Windows, Windows Server and Linux operating systems.
