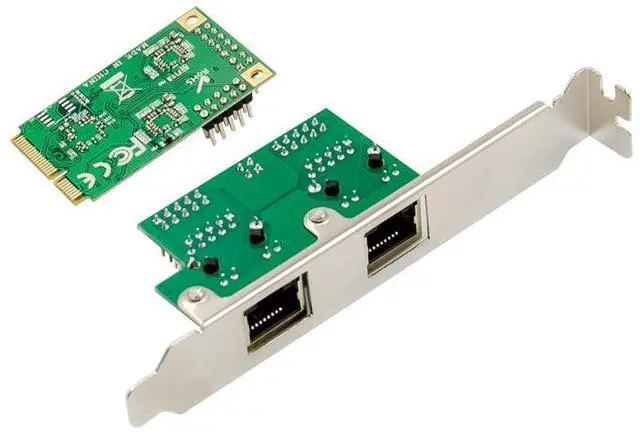

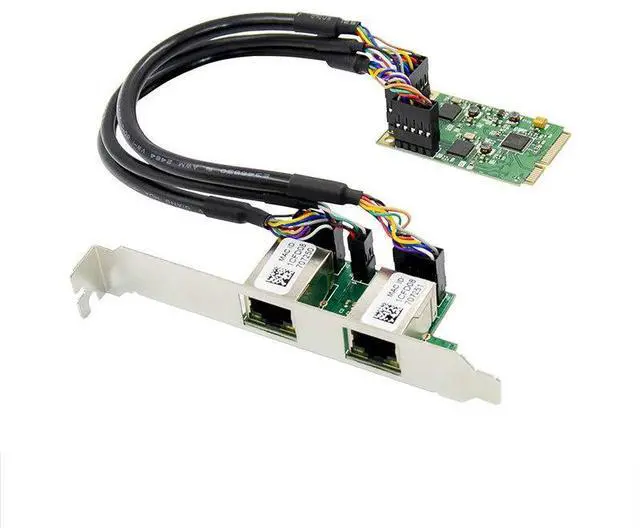

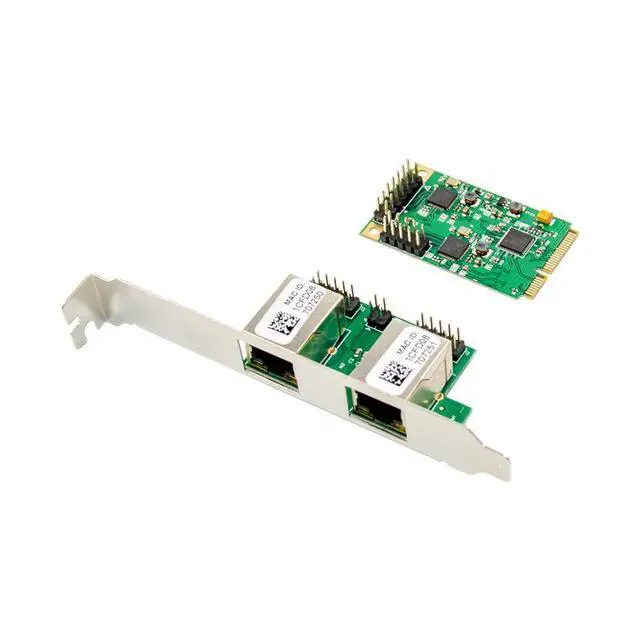

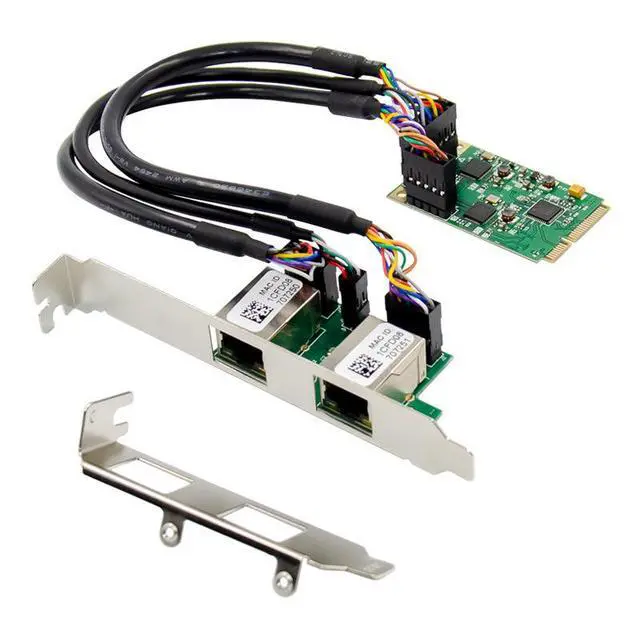

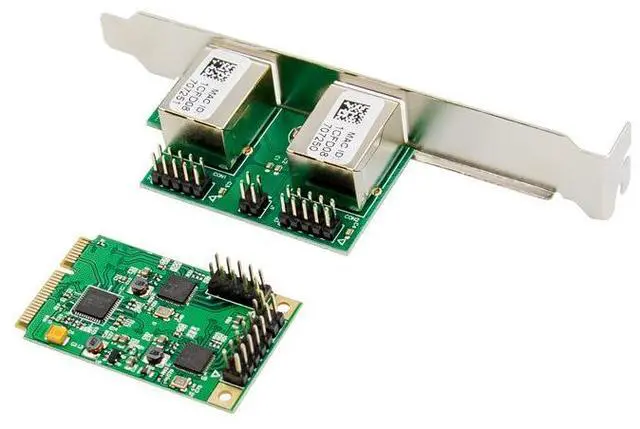

Mini PCIe Dual Port Gigabit Network Card 2 x RJ45 1000Mbps Ethernet Adapter, RTL8111F + ASM1182 Chipset, for Industrial / Embedded Systems
- Mini PCIe RTL8111F Dual-Port Gigabit Ethernet Card is a high-performance 10/100/1000M BASE-T Ethernet LAN controller.
- It supports the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet.
- It features auxiliary power auto-detection and will automatically configure the relevant bits of the PCI Power Management registers in the PCI configuration space.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Mini PCIe
Single-lane (x1) PCIe with throughput up to 2.5Gbps
Compliant with Mini PCIe Card Electromechanical Specification Revision 1.2
Compatible with half-size and full-size Mini PCIe card form factors
Compliant with PCIe Base Specification Revision 1.1
Plug and Play
Technical Specifications
Item Details
Applicable Network Gigabit Ethernet Server
Main Chipset RTL8111F + ASM1182e
Bus Type Mini PCIe
Media Interface 2 × RJ45, copper cable
Transfer Rate 10/100/1000Mbps (auto-negotiation for data rate) High-performance 1000BASE-T Ethernet controller card, backward compatible with 10/100BASE-T networks
Network Topology Fully compliant with IEEE 802.3, 802.3u, 802.3ab; Supports full-duplex flow control (IEEE 802.3x); Supports IEEE 802.1P Layer 2 priority encoding; Supports IEEE 802.1Q VLAN tagging
Management Features IPv4 and IPv6 checksum offload support; Receive-Side Scaling (RSS) with two hardware receive queues; Supports jumbo frames up to 9K bytes; Crossover detection and auto-correction
Supported Operating Systems
Windows ME / 98SE / 2000 / XP / Vista / Win 7 / Win 8 / Win 10 32-bit & 64-bit
Windows Server 2003 / Server / Server 2008 / Server 2012 32-bit & 64-bit
Linux, DOS, MAC OS X 10.4.X or later
System Requirement: One available Mini PCIe slot
