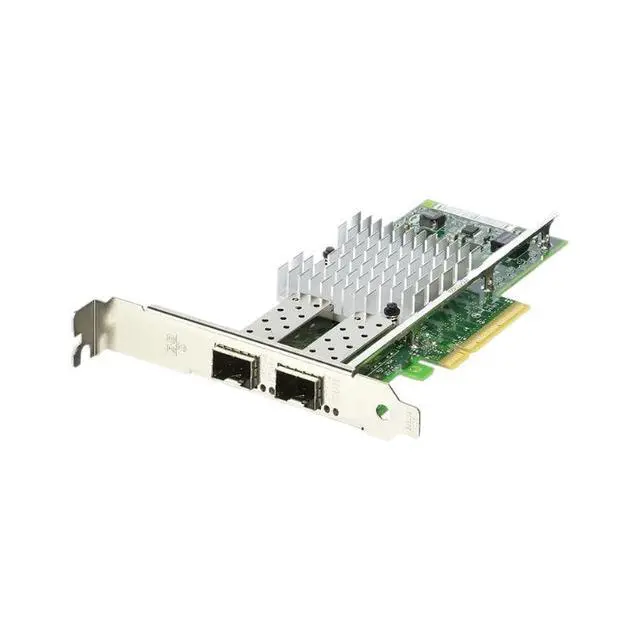

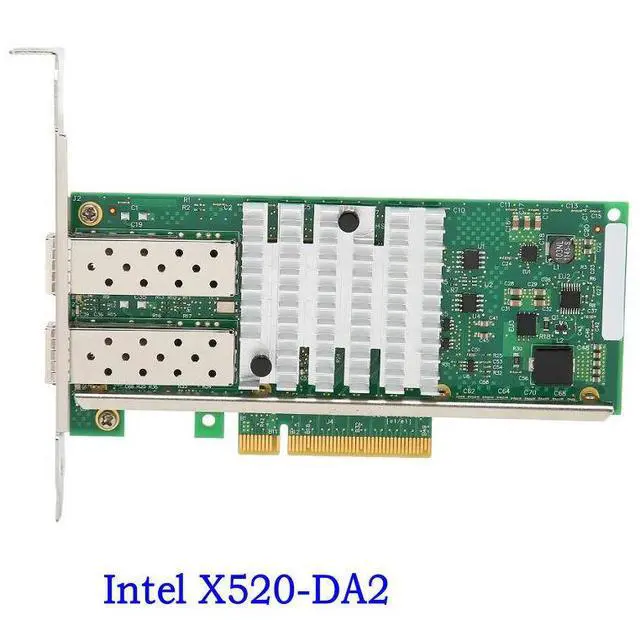

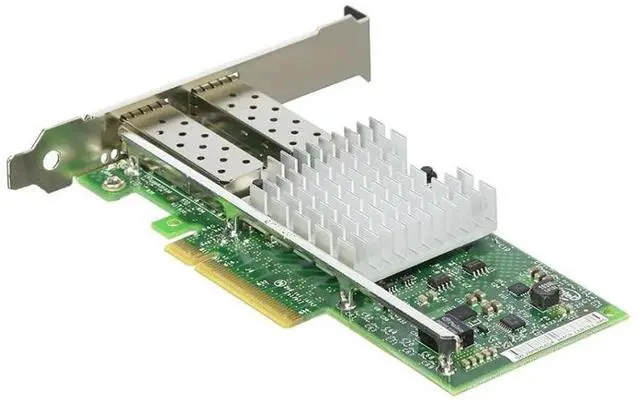

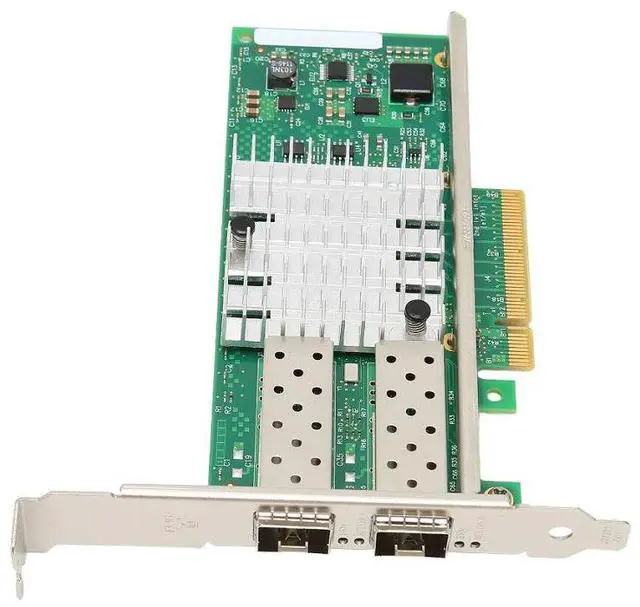

PCIe 10G Dual SFP+ Fiber Server Network Card X520-DA2, Intel 82599 Chipset, 2 x 10Gbps SFP+ Ports, Server / Data Center / Enterprise NIC

Processor Chipset: Intel 82599ES × 2

Bus Type: PCI Express 2.0 (5GT/s)

Bus Bandwidth: x8 lane PCI Express compatible with x8 and x16 slots

Bus Speed (x8, encoded rate): 20 Gbps unidirectional; 40 Gbps bidirectional

Network Interface Type: 2 × SFP+ slots

Supported Data Rate: 10 GbE per port

Hardware Certifications: FCC B, UL, CE, VCI, BSMI, CTICK, MIC

Typical Power Consumption: 10.0 W

General Specifications

Item Details

Product Name Intel Dual-Port 10G Fiber Network Card

Model No. Intel 82599ES X520

Product Type Server internal connection (recommended for Xeon 5500 series processors)

Processor Chipset Intel 82599ES × 2

Bus Type PCI Express 2.0 (5GT/s)

Bus Bandwidth x8 lane PCI Express compatible with x8 and x16 slots

Bus Speed (x8, encoded) 20 Gbps unidirectional; 40 Gbps bidirectional

Network Interface 2 × SFP+ slots, 2 LC fiber connections

Supported Data Rate 10 GbE per port

Optional Connections 10GBASE-LR / 10GBASE-SR / SFP+ DAC direct-attach copper cable

IEEE Standards IEEE 802.3

Hardware Certifications FCC B, UL, CE, VCI, BSMI, CTICK, MIC

LED Indicators 2 fixed and blinking LEDs one speed LED per port (Green = 10G / Yellow = 1G)

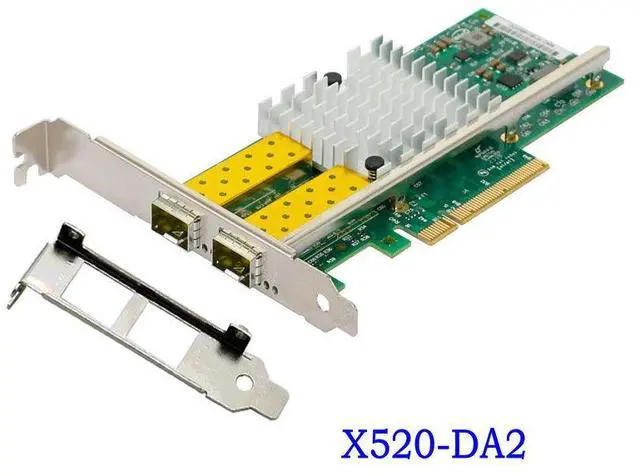

Brackets Includes 1 full-height bracket and 1 low-profile bracket

Airflow Requirement Minimum 100 LFM

Typical Power Consumption Up to 10.7W max / 10.0W typical

Environmental & Physical Specifications

Parameter Details

Operating Temperature 0°C ~ 55°C

Operating Humidity 90%

Storage Temperature -40°C ~ 70°C

Storage Humidity 90%

Length 14.8 cm (5.83 in)

Width 6.8 cm (2.68 in)

Bracket Height 12.0 cm / 8.0 cm (4.72 in / 3.15 in)

Package Dimensions 20 × 15 × 4.5 cm (7.87 × 5.91 × 1.77 in)

Supported Operating Systems:

Linux

Microsoft Windows Server 2003

FreeBSD 6.2 & 7.x

OS Independent

Microsoft Windows Vista

Microsoft Windows 7

Microsoft Windows Server 2008

Key Features 10G Server Fiber Network Card:

10G fiber Ethernet port supports 10GBASE-SR

10G 850nm SFP+ interface hot-pluggable (SFP+)

LC Duplex connector

Host Interface: PCI Express X8 lane

Supports PCI Express Base Specification 2.0 (5.0GHz)

Low-profile adapter card (compatible with both 2U and 3U chassis)

LAN Features:

Supports IEEE 802.x flow control

Supports IEEE 802.1Q VLAN tagging

Supports IEEE 802.1p Layer 2 priority encoding

Jumbo frames support (up to 16KB)

Link aggregation and load balancing

RFC2819 RMON MIB statistics

TCP segmentation offload up to 256KB

IP/TCP receive checksum offload with IPv6 support

DDP offload

Supports IEEE 1588 / 802.1as time synchronization

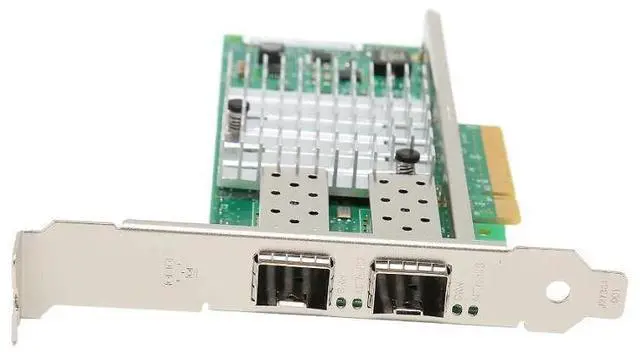

Link/Activity LED indicators

LED & Connector Specifications:

LED: 1 LED per port

Link/ACT: Solid on link, blinking on activity (Green)

Connector: LC interface
