Intel 82599 M.2 to 10G SFP+ Fiber Network Card Single Port, X520-DA1, 10Gbps SFP+, for Server / Data Center / High-Performance Networking

Key Features:

PCI-Express Host Interface Specification v2.0, bus bandwidth 5GT/s

PCI-Express Lane: x8

Compliant with single-port 10GbE SFP+ port standard

Compliant with IEEE 802.3ae specification

Layer 2 Features: IEEE 802.3x flow control IEEE 802.1q VLAN

Supports Receive-Side Scaling (RSS)

Supports IPv4 and IPv6 protocols

Supports jumbo frames up to 15.5K

Supports checksum offload

Management statistics and RMON support

Supports Virtual Machine Device Queues (VMDq)

Interrupt throttling control to limit maximum interrupt rate and improve CPU utilization

Chipset: Intel JL82599EN

Driver Support: FreeBSD, Linux, VMWare ESXi, Windows 7 / Windows Server 2012 / Windows Server 2008 / Windows 8 / Windows 8.1 / Windows Server 2016 / Windows 10

Technical Specifications:

Parameter Details

Applicable Network M.2 10G Industrial Server Network Card

Main Controller Intel(R) JL82599EN

Bus Type M.2 B+M KEY

Media Interface 1 × SFP+ Fiber LC

Transfer Rate 10GbE / 1GbE

Network Topology IEEE 802.3: 10GBASE-SR (E10G41BFSR, E10G42BFSR), 10GBASE-LR (E10G41BFLR); SFF-8431: 10GSFP+Cu (Direct Attach); X520 Adapters with SFP+ connections support 10GBASE-SR, 10GBASE-LR and SFP+ Copper Direct Attach

Management Features IPMI pass-through via SMBus or NC-SI, iSCSI boot, Wake-on-LAN (WoL), PXE remote boot, VLAN filtering

Supported Operating Systems FreeBSD, Linux, VMWare ESXi, Windows 7 / Server 2012 / Server 2008 / Windows 8 / 8.1 / Server 2016 / Windows 10

Package Contents:

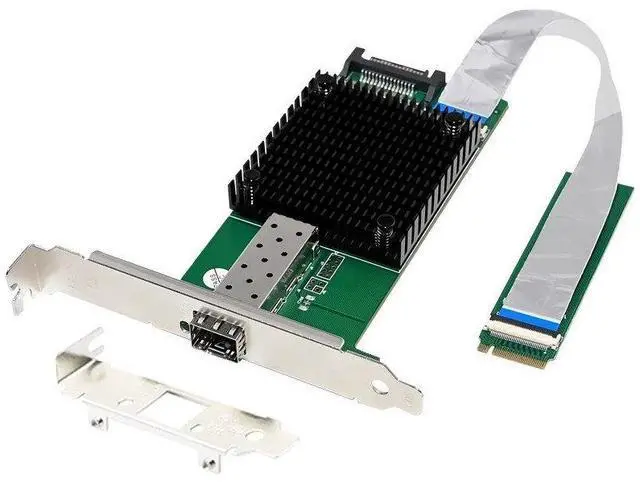

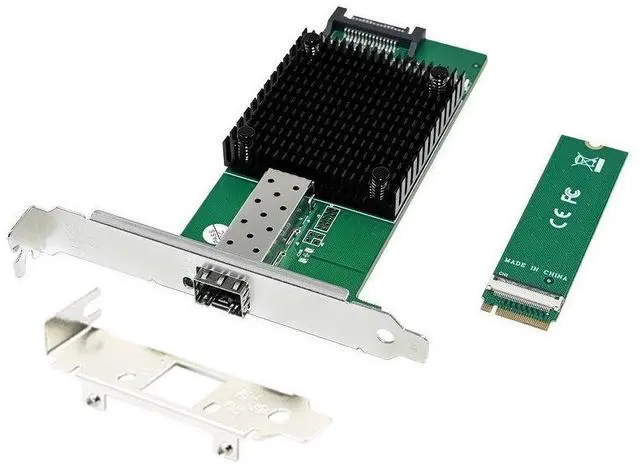

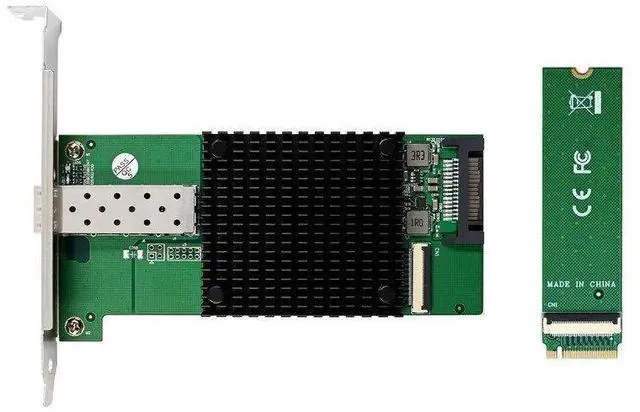

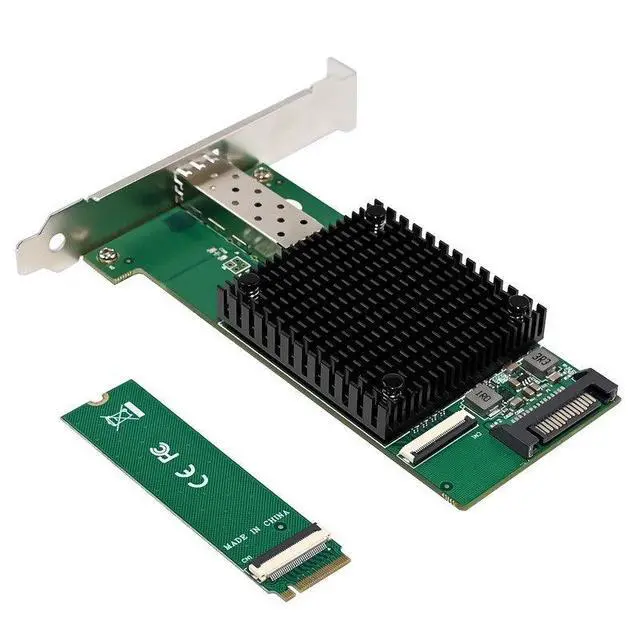

1 × Main Card

1 × Low-Profile Bracket

1 × 20cm Ribbon Cable
