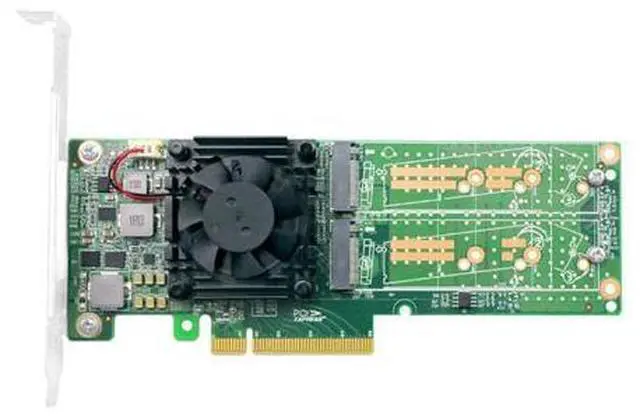

PCIe 3.0 X 8 to Quad M.2 NVMe SSD Swtich Adapter Card with Low Profile-LRNV9547LP-4I

Certification: CE
Origin: CN (Origin)
Package: Yes
Model Number: LRNV9547LP-4I
Type: Add On Cards
Interface Type: PCI
Express Chipset: PLX 8747
Support Equipment: 4*NVMe SSD for 2242, 2260, 2280mm
Host Bus Type: PCIe 3.0 x 8 Product Description LRNV9547 NVMe Adapter is PCI Express x8 Gen3 PCIe switch Card. It expands the maximum storage of the 4 M. 2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance. Features Compliant PCI Express Base Specification, r 3.0 (compatible w/ PCIe r 1.0 a/ 1.1 & 2.0 ). Compliant with PCI Power Management Spec, r 1.2. Microsoft Vista Compliant. Supports Access Control Services. High Performance. Non-blocking switch fabric, Full line rate on all ports. This card does not rely on PCIe bifurcation supported by CPU or PCH Independent, Stand Alone NVMe SSD Solution Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later Supports Full-height Bracket and
Low-Profile Bracket Parameter Model: LRNV9547LP-4I Number of
Device: 4
Internal I/O Controller: PEX8747
Host Bus Type: PCI Express 3.0 x8
Compatible Device Type: 4 NVMe M.
2 SSD Interface: 4*M...
