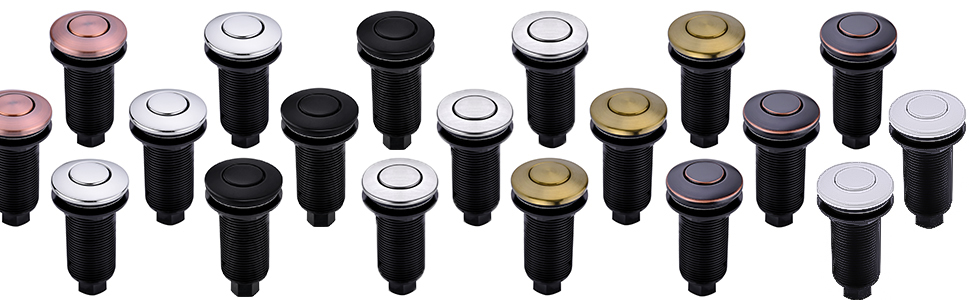

- Brushed Nickel
- Chrome
- Matte Black
- Oil Rubbed Bronze
- Champagne Bronze

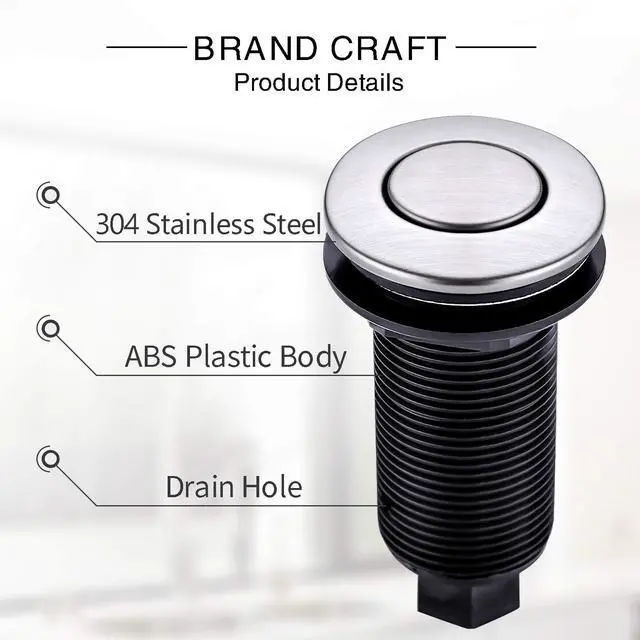

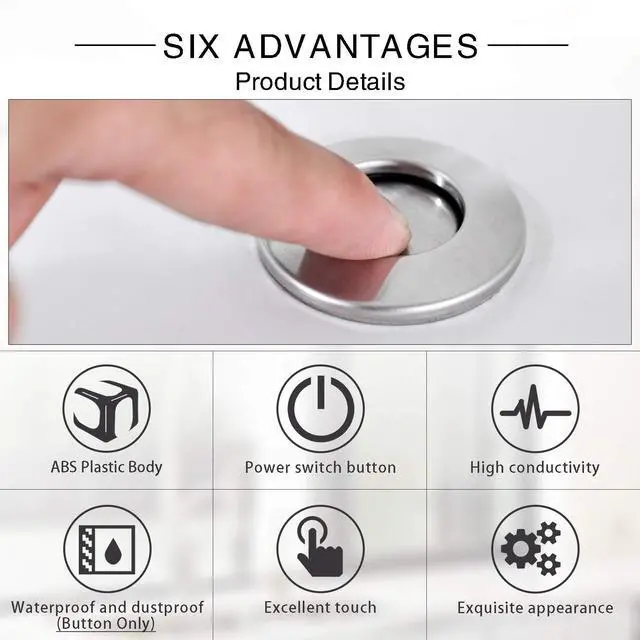

- The cover of the plastic button is made of brass, value for money and durable.
- Both buttons have drain holes and rubber gasket. Effectively prevent water entering the air tube and buttons.
Installation Steps
Air Switch Button Installation

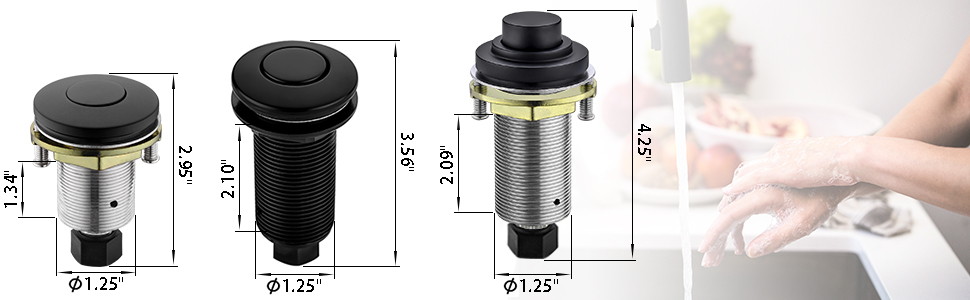

- Install the buttons and accessories directly into the standard sink hole. Button mounting portion of the length of 2.68 inches.

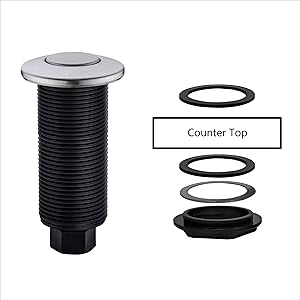

- In the order shown, Button--Rubber Gasket--Sink Top/Counter Top--Rubber Gasket--Metal Gasket--Screw Nut.
- Tighten the plastic nut to ensure a seal.
Tips: Drill a hole with diameter not narrower than 1-3/8inches. Countertop or Sinktop not thicker than 2.50 inches.

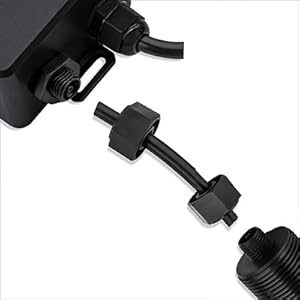

Control Box Connect
- Pass the air tube through the nut.
- Then connect the nozzle of the air tube to the protrusion.
- Push in forward.

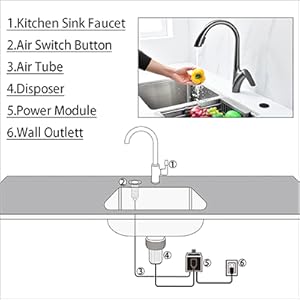

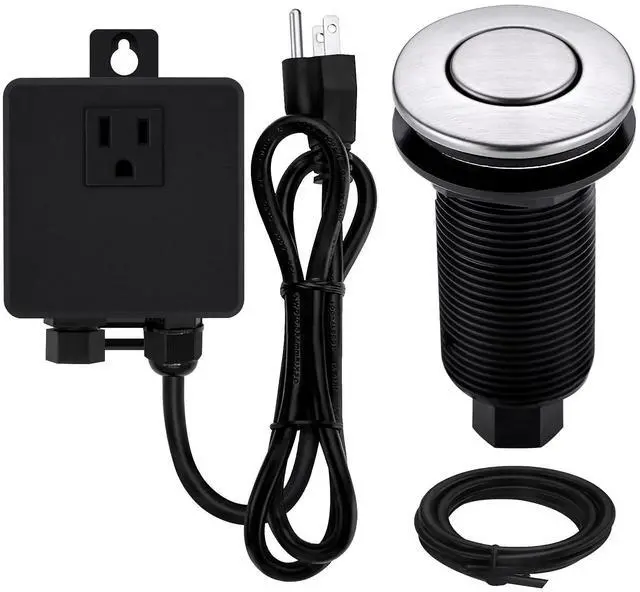

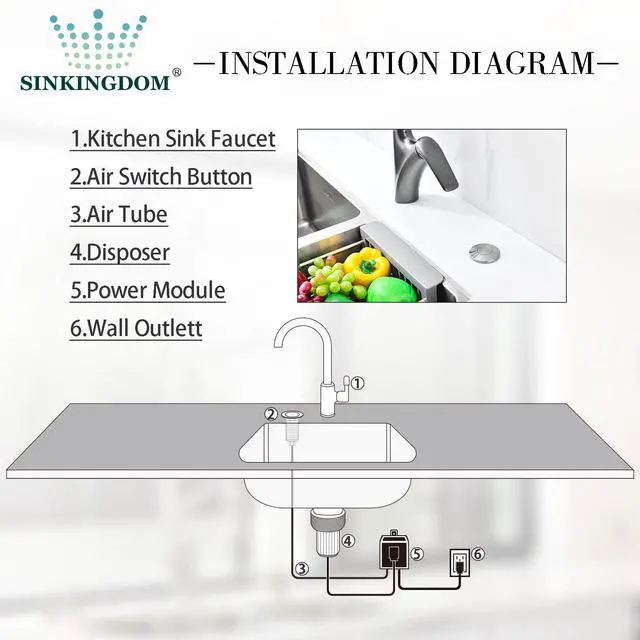

Air Switch Kit Installation
- Install air switch button on sink top.

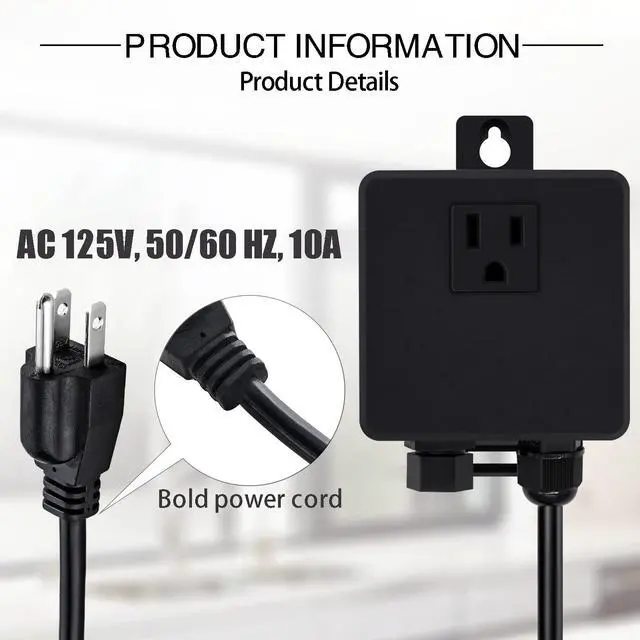

- Use air tube to connect air switch button and power module.
- Connect the power cord of the garbage disposal to the power module.
- Connect the power cord of the air switch set to the wall socket.
Tips: Gently press the air switch button to start the garbage disposal, press again to turn it off.

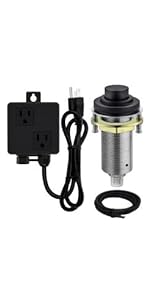

 Single Outlet Kit Black |  Single Outlet Kit Chrome |  Dual Outlet Kit Champagne Bronze |  Single Outlet Kit Black | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Material | Brass Cover + Stainless Steel Body | Brass Cover + Stainless Steel Body | Brass Cover + Stainless Steel Body | Brass Cover + Stainless Steel Body |
| UL certified | ? | ? | ? | ? |

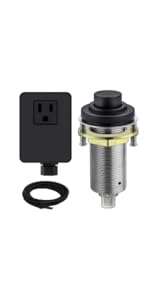

 Single Button Black |  Single Outlet Kit Black |  Dual Outlet Kit Black |  Mounting Ring for Vessel Sink |  Filter Faucet Brushed Nickel | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| Material | Brass Cover | Brass Cover | Brass Cover | Brass | Brass |
| UL certified | no data | ? | ? | no data | no data |
Matte Black
Champagne Bronze
Chrome
- Brushed Nickel
- Chrome
- Matte Black
- Oil Rubbed Bronze
- Champagne Bronze
- The cover of the plastic button is made of brass, value for money and durable.
- Both buttons have drain holes and rubber gasket. Effectively prevent water entering the air tube and buttons.
Installation Steps
Air Switch Button Installation
- Install the buttons and accessories directly into the standard sink hole. Button mounting portion of the length of 2.68 inches.
- In the order shown, Button--Rubber Gasket--Sink Top/Counter Top--Rubber Gasket--Metal Gasket--Screw Nut.
- Tighten the plastic nut to ensure a seal.
Tips: Drill a hole with diameter not narrower than 1-3/8inches. Countertop or Sinktop not thicker than 2.50 inches.
Control Box Connect
- Pass the air tube through the nut.
- Then connect the nozzle of the air tube to the protrusion.
- Push in forward.
Air Switch Kit Installation
- Install air switch button on sink top.
- Use air tube to connect air switch button and power module.
- Connect the power cord of the garbage disposal to the power module.
- Connect the power cord of the air switch set to the wall socket.
Tips: Gently press the air switch button to start the garbage disposal, press again to turn it off.
Single Outlet Kit Black | Single Outlet Kit Chrome | Dual Outlet Kit Champagne Bronze |  Single Outlet Kit Black | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| Material | Brass Cover + Stainless Steel Body | Brass Cover + Stainless Steel Body | Brass Cover + Stainless Steel Body | Brass Cover + Stainless Steel Body |
| UL certified | ? | ? | ? | ? |
Single Button Black |  Single Outlet Kit Black | Dual Outlet Kit Black |  Mounting Ring for Vessel Sink |  Filter Faucet Brushed Nickel | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| Material | Brass Cover | Brass Cover | Brass Cover | Brass | Brass |
| UL certified | no data | ? | ? | no data | no data |
