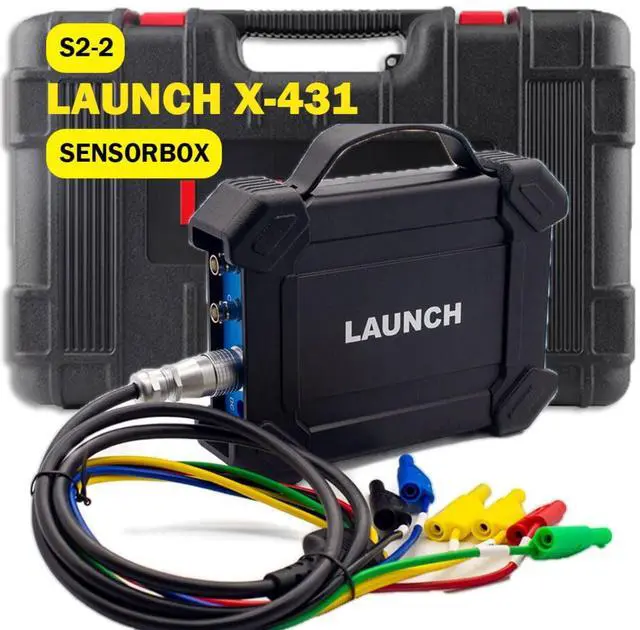

LAUNCH X431 Sensor Simulator and Tester 2 Channels Digital S2-2 Sensorbox

The LAUNCH X-431 S2-2 Sensorbox is your comprehensive solution for testing and simulating a wide range of vehicle sensors, allowing for quick troubleshooting of the Engine Control Unit (ECU). This versatile tool is compatible with LAUNCH scanners, including x431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S+, X431 PAD V, X431 PAD 7, X431 IMMO Elite, X431 IMMO PLUS, and more, making it a valuable addition to any automotive repair shop.
Key Features:
1.
ECU Functionality Check: Determine whether the ECU is operating correctly or not, helping you pinpoint issues efficiently.

2.
Manual Waveform Data Entry: This tool supports manual input of waveform data, giving you control and flexibility in your diagnostic processes.

3.
Sensor Simulation: Simulate the working conditions of various sensors without the need to replace parts. This is particularly useful for diagnosing sensor-related problems.

4.
Multimeter Functionality: The S2-2 Sensorbox can also function as a multimeter, allowing you to measure resistance, AC/DC voltage, capacitance, frequency, and pulse signals, among other parameters.

5.
Intuitive Menu: With just one click, access an intuitive menu that includes options for sensors, actuators, defined/drawn waveforms, timing waveforms, multimeter measurements, and system settings.
S2-2 Sensorbox Modes:
Sensor Mode: Simulate input signals for the automobile electronic control system, enabling adjustments to engine operation based on these parameters.
Actuator Mode: Simulate output control signals from the electronic control system, facilitating assessment of actuator performance.
Multimeter Mode: Test voltage, resistance, and capacitance quickly and accurately.
Multimeter

Specifications

:
DC Voltage: 0 V - 700 V
AC Voltage: 0 V - 700 V
Resistance: 0 - 40 M
Capacitance: 0 F - 100 F (maximum 30 s measurement time)
Diode: 0 V - 1.5 V
Continuity Detection: Audible signal for resistance below 30
Waveform Options:
Defined Waveforms: Choose from 9 waveforms, including sine waves, square waves, straight lines, and more. Adjust frequency, amplitude, offset, phase, and duty cycle as needed.
Hand-drawn Waveforms: Create custom waveforms with up to 300 points, offering flexibility in signal generation.

Specifications

:
Number of Channels: 2
Voltage Simulation Range: 0~20V
Max.
Output Current: 20mA
Square Wave Signal Frequency: 0~15KHz
Square Wave Signal Duty Cycle: 0~100%
Power Supply: Battery-powered for sensor output (max current 20mA), external power supply for solenoid and ignition coil output (max current 2A)
USB: USB 2.0 Type B (with charging and power supply function/5V)
Operating Temperature Range: 0C~50C
Storage Temperature Range: -30C~70C
Certifications: CE, FCC, RoHS
