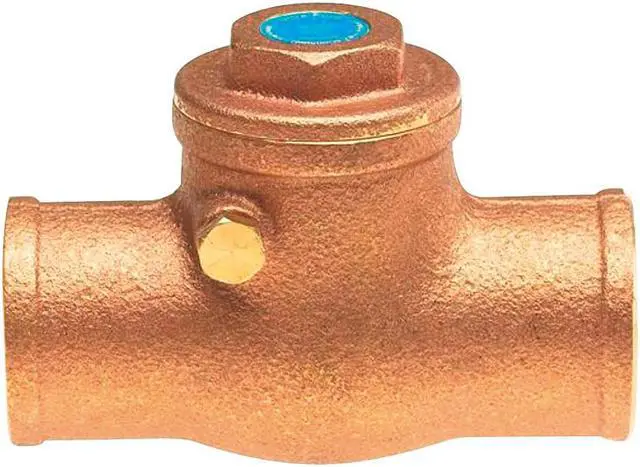

MILWAUKEE VALVE UP0968000200 2" Solder Low Lead Brass Swing Check Valve

The MILWAUKEE VALVE UP0968000200 is a 2 in. swing check valve with an inline low-lead brass body and solder sweat x sweat connections. It uses a hinged swing mechanism for one-direction flow applications and reverse-flow checking in general-purpose gas, oil, and water piping systems. This valve features a full-flow design, a 0.1 psi cracking pressure, and horizontal or vertical installation.

Key Features:

• 2 in. swing check valve with inline swing mechanism.
• Low-lead brass construction with brass body, brass check mechanism, brass seal, and brass seat.
• Female sweat connections on both ends; sweat x sweat / solder connection type.
• Flow capacity: 131 gpm; Cv: 131.
• Pressure rating: 200 psi WOG; maximum water pressure 200 psi at 150 degrees F.
• Operating temperature range: -20 degrees F to 150 degrees F.
• Horizontal or vertical installation; multi-positional mounting.
• NSF 61 and NSF/ANSI 372 listed.
• Dimensions: 6 1/8 in. length, 3 27/32 in. overall height, 2 1/2 in. width.
