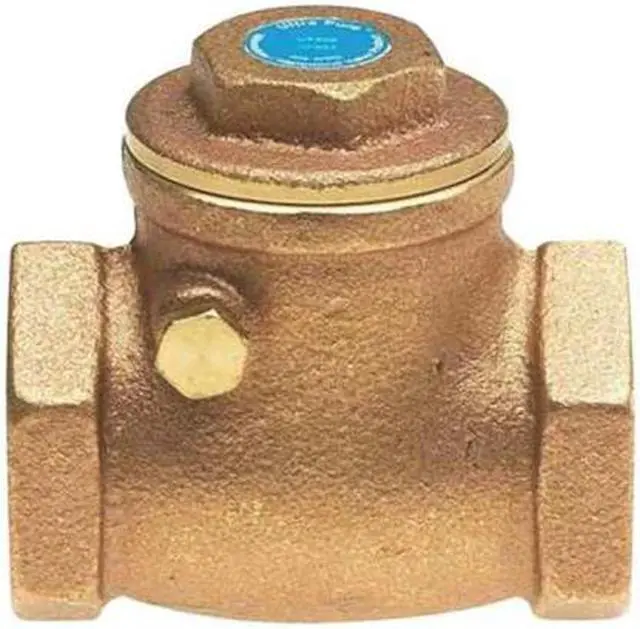

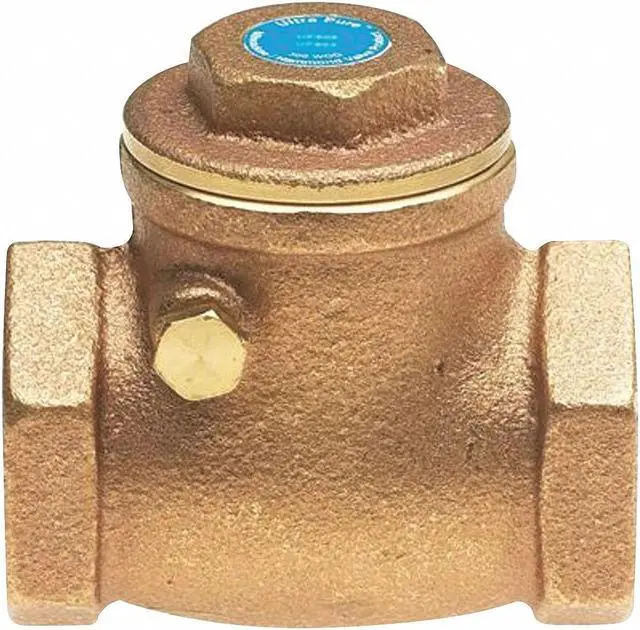

MILWAUKEE VALVE UP0967000012 1/2" Threaded Low Lead Brass Swing Check Valve

This Milwaukee Valve UP967 series swing check valve is a 1/2 in. inline check valve with threaded FNPT x FNPT connections. It features a brass swing mechanism intended to permit flow in one direction and restrict reverse flow. The low lead brass construction is rated for general purpose gas, oil, and water service, subject to listed pressure and temperature specifications. Certifications include NSF 61 and NSF/ANSI 372.

Key Features:

• Valve type: Swing check valve with inline body design
• Body material: Low lead brass with brass body, mechanism, seal, and seat materials
• Connection size and type: 1/2 in. female NPT on both ends; FNPT x FNPT threaded connections
• Flow capacity: 10 GPM with Cv of 10
• Cracking pressure: 0.5 psi
• Pressure rating: 200 psi WOG; maximum water pressure 200 psi at 150 degrees F
• Temperature range: -20 degrees F to 150 degrees F
• Mounting orientation: Horizontal or vertical; multi-positional
• Flow design: Single, full flow
• Certifications/standards: NSF 61, NSF/ANSI 372
• Dimensions: Overall length 1.86 in.; overall height 2 3/32 in.; width 1 in.
