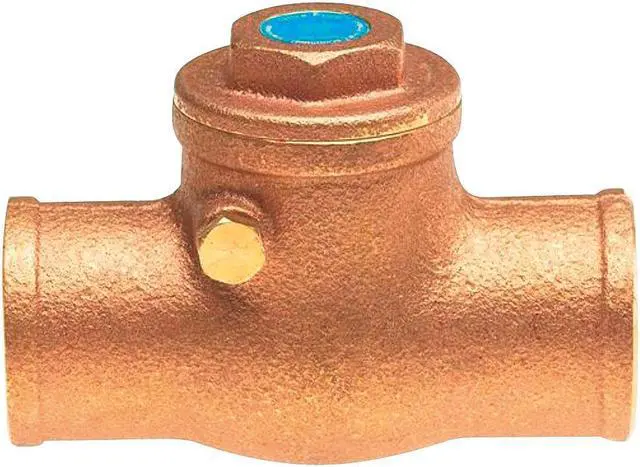

MILWAUKEE VALVE UP0968000034 3/4" Solder Low Lead Brass Swing Check Valve

The MILWAUKEE VALVE UP0968000034 is a 3/4 in. swing check valve with solder (sweat x sweat) female connections and an inline low lead brass body. It uses a swing check mechanism intended for one-direction flow and reverse-flow closure in compatible gas, oil, and water piping systems. This valve is rated for horizontal or vertical mounting and features a full-flow design with a 0.1 psi cracking pressure.

Key Features:

• 3/4 in. nominal valve and pipe size with sweat x sweat solder connections on both sides
• Low lead brass body with brass check mechanism; seal and seat material listed as brass, with seat material also listed as metal
• Inline swing design with single-flow path and standard, non-silent operation
• Flow rating: 18 gpm with a Cv of 18
• Pressure rating: 200 psi WOG; maximum water pressure 200 psi at 150 Degrees F
• Temperature range: -20 Degrees F minimum to 150 Degrees F operating maximum
• Mounting orientation: horizontal or vertical; mounting position: multi positional
• Certifications/standards: NSF 61, NSF/ANSI 372
• Dimensions: 2.85 in. overall length, 2-19/64 in. overall height, 1-1/4 in. width, 1-5/8 in. cap to inlet center, 1-1/2 in. height from cap to inlet center
• No counterweight
